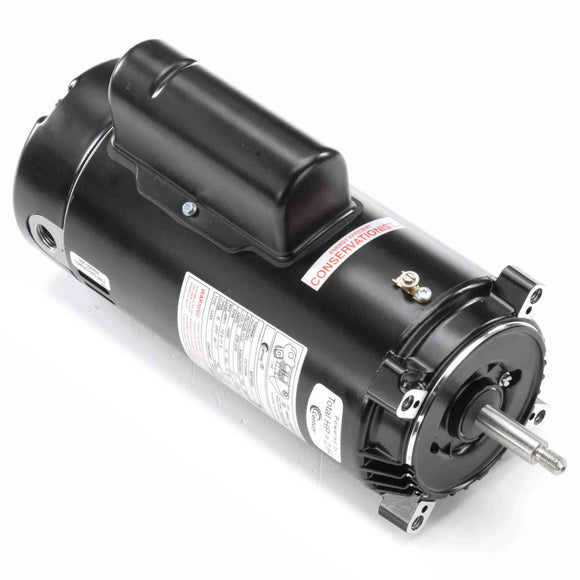

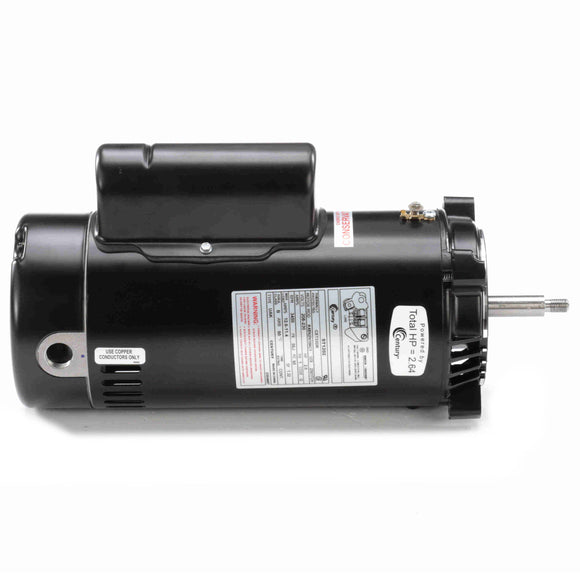

ST1202 Century 2HP Pool Pump Electric Motor, 3600RPM

$573.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: ST1202 Barcode: 786674031808

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56J Frame, 208-230VAC 60Hz Single Phase, Rolled Steel Housing, Threaded 303 Stainless Steel Shaft, CCW Pump End

Description Product Specs Manufacturer





Features






  • Sealed Ball Bearings

  • Capacitor Start-Capacitor Run

  • Sealed Switch Design

  • 50°C Ambient

  • 303 Stainless Shaft

  • UL 1081 Design

  • 304 Bearing Shaft End

  • Threaded Shaft

  • Energy Efficient





General Specifications























UPC: 786674031808 Weight: 34 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN


Nameplate Specifications























































Output HP: 2.0 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 12.6-11.4 A Speed: 3450 rpm
Service Factor: 1.32 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56J Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y


Technical Specifications















































Electrical Type: Capacitor Start Capacitor Run Poles: 2
Rotation: Counterclockwise Pump End Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 15.62 in
Frame Length: 9.69 in Shaft Diameter: 0.625 in
Shaft Extension: 2.563 in


  • Electric Motor
  • 56J
  • ODP
  • Single Phase
  • 2HP
  • 3600RPM
  • Pool Pump

Century Electric Motor (Regal Rexnord)
