Features
Features
- Automatic reset thermal protector
General Specifications
General Specifications
| Model : | Catalog No : | OBG2004 | |

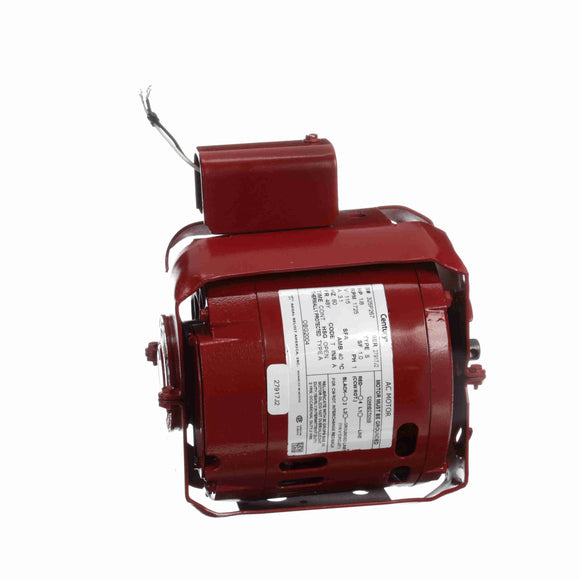

| Part Description : | 1/8,1725,OPEN,48Y,1/60/115 | Category : | Circulator pump |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 1/8 Hp | Output KW : | 0.10 kW |
| Frequency : | 60 Hz | Voltage : | 115 V |
| Current : | 3.1 A | Speed : | 1725 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | A |
| Frame : | 48Y | Enclosure : | Open Enclosed |
| Overload Protector : | Automatic | Ambient Temperature : | 40 °C |
| UL : | No | CSA : | Y |
| CE : | N |
Technical Specifications
Technical Specifications
| Electrical Type : | Split Phase | Starting Method : | Across The Line |
| Poles : | 4 | Rotation : | Reversible |
| Mounting : | Resilient Base | Drive End Bearing : | Sleeve |
| Opp Drive End Bearing : | Sleeve | Frame Material : | Rolled Steel |
| Shaft Type : | Spot Drill | Overall Length : | 6.84 in |
| Frame Length : | 3.44 in | Shaft Diameter : | 0.500 in |
| Shaft Extension : | 0.68 in | UPC : | 786674027108 |
| Weight : | 12.00 LB |
