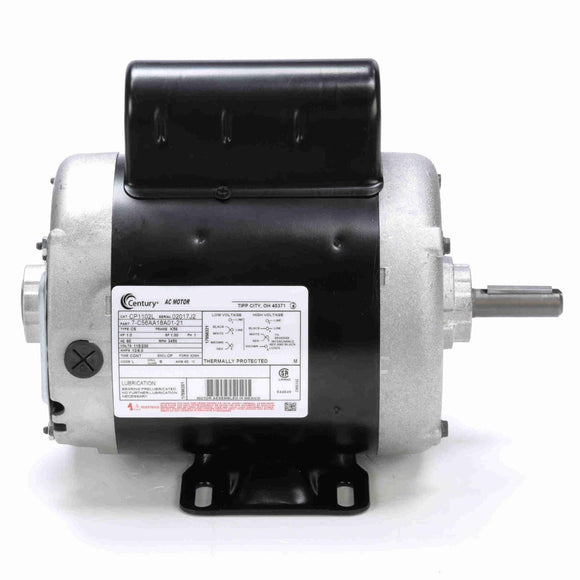

CP1102L Century 1HP Compressor Duty Electric Motor, 3450RPM

$199.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: CP1102L Barcode: 786674017185

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, K56 Frame, 115/230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 5/8" Shaft

1 In Stock!

Description Product Specs Manufacturer





Features




Features


  • High starting and breakdown torque

  • Heavy gauge steel frame and base






General Specifications





General Specifications






























Model :

Catalog No :
CP1102L

Part Description :
1,3450,ODP,56,1/60/115/230
Category :
Air Compressor

Stock :
Yes






Nameplate Specifications





Nameplate Specifications

























































Output HP :
1.0 HP
Output KW :
0.75 kW

Frequency :
60 Hz
Voltage :
115/230 V

Current :
12/6.0 A
Speed :
3450 RPM

Service Factor :
1
Phase :
1

Duty :
Continuous
Insulation Class :
B

Frame :
K56
Enclosure :
Open Drip Proof

Overload Protector :
Thermally Protected
Ambient Temperature :
40 °C

UL :
Recognized
CSA :
Y

CE :
N






Technical Specifications





Technical Specifications




















































Electrical Type :
Capacitor Start, Induction Run, Single Or Dual Voltage
Starting Method :
Across The Line

Poles :
2
Rotation :
Reversible

Mounting :
Rigid Base
Drive End Bearing :
Ball

Opp Drive End Bearing :
Ball
Frame Material :
Rolled Steel

Shaft Type :
Keyed
Overall Length :
11.44 in

Frame Length :
5.50 in
Shaft Diameter :
0.625 in

Shaft Extension :
1.94 in
UPC :
786674017185

Weight :
26.00 LB






Speed & Load Characteristics








  • Electric Motor
  • K56
  • Single Phase
  • 1HP
  • 3450RPM
  • Air Compressor

Century Electric Motor (Regal Rexnord)
