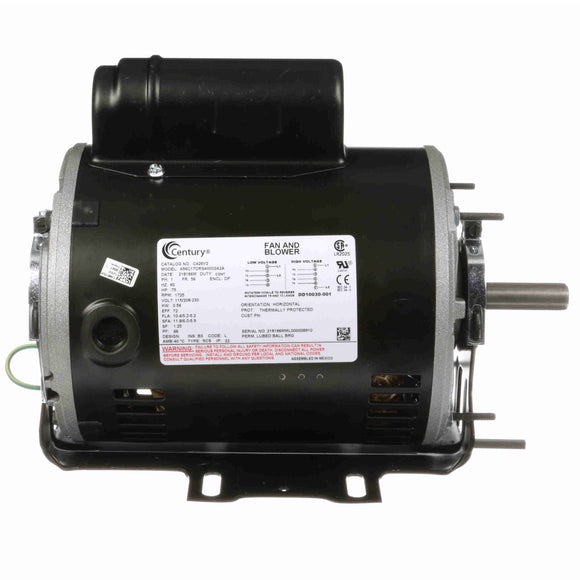

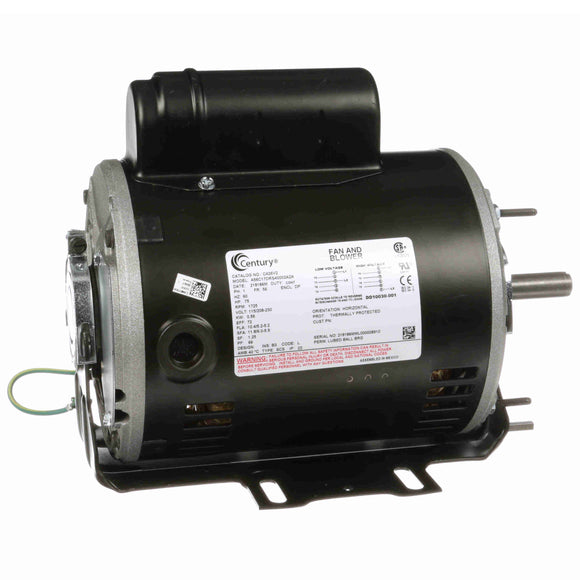

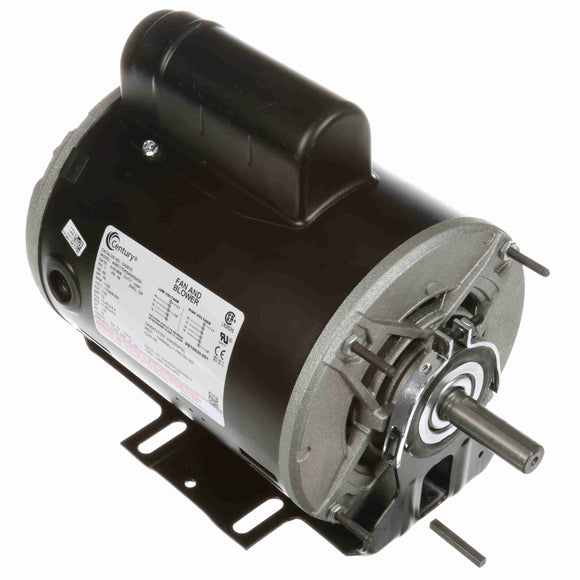

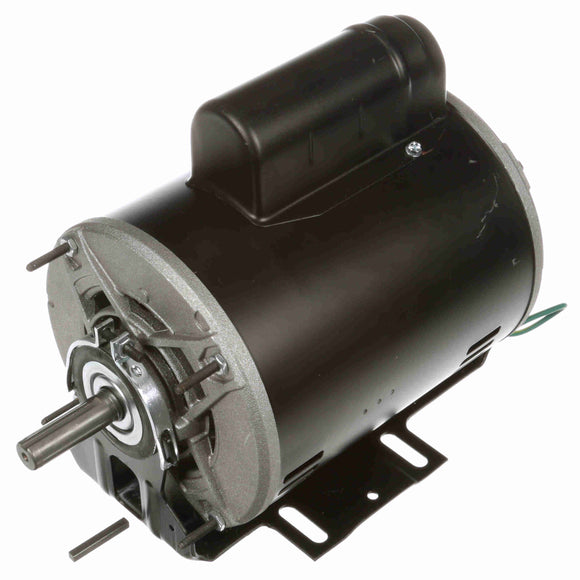

C426V2 Century 0.75HP Fan and Blower HVAC/R Electric Motor, 1800RPM

$548.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C426V2 Barcode: 786674074560

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56 Frame, 115/208-230VAC 60Hz Single Phase, Resilient Base, Rolled Steel, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features






  • Resilient Base

  • Capacitor start / capacitor run

  • Single and two speed





General Specifications























UPC: 786674074560 Weight: 27 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN


Nameplate Specifications



























































Output HP: .75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 10.4/5.2-5.2 A Speed: 1725 rpm
Service Factor: 1.25 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56 Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y


Technical Specifications















































Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Resilient Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.47 in
Frame Length: 7.15 in Shaft Diameter: 0.625 in
Shaft Extension: 1.96 in


  • Electric Motor
  • 56
  • ODP
  • Single Phase
  • 3/4HP
  • 1800RPM

Century Electric Motor (Regal Rexnord)
