Features
- Automatic reset thermal protector
General Specifications
| UPC: | 786674015594 | Weight: | 28.00 LB |
| Packaged Length: | 13 IN | Packaged Width: | 10 IN |
| Packaged Height: | 10 IN |

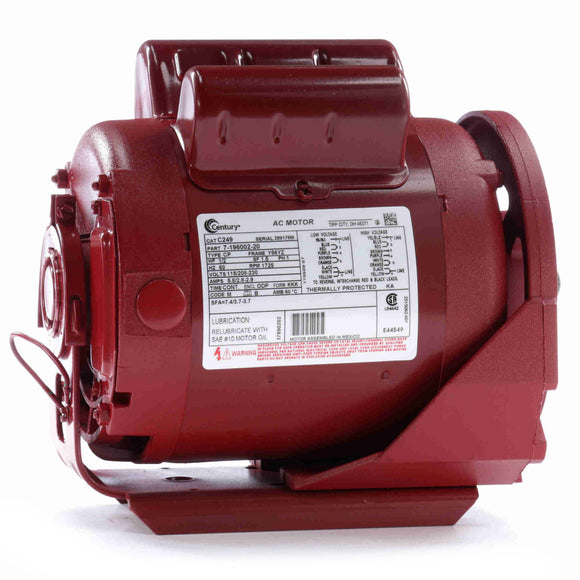

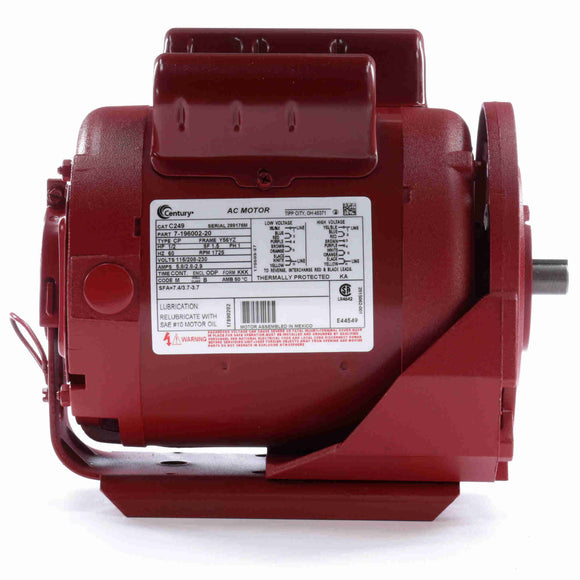

Nameplate Specifications
| Output HP: | 1/2 Hp | Output KW: | 0.37 kW |
| Frequency: | 60 Hz | Voltage: | 115/208-230 V |
| Current: | 5.8/2.8-2.9 A | Speed: | 1725 rpm |
| Service Factor: | 1.5 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | Y56YZ | Enclosure: | Open Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Capacitor Start, Capacitor Run, Single Or Dual Voltage | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Clockwise |
| Mounting: | Cushion Base | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 9.93 in |
| Frame Length: | 4.75 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.18 in |
Speed & Load Characteristics
