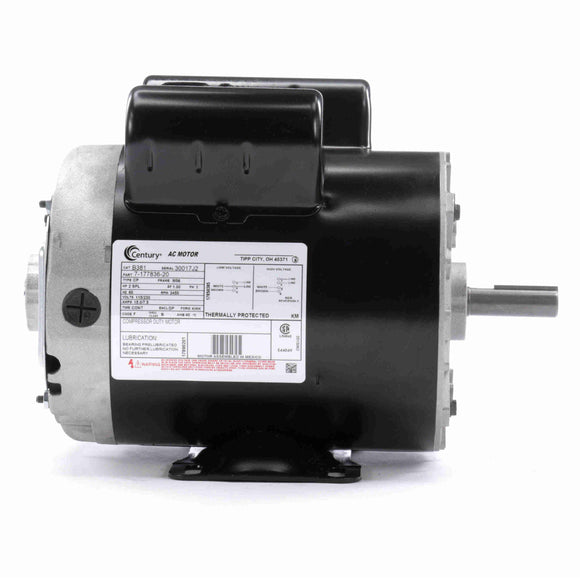

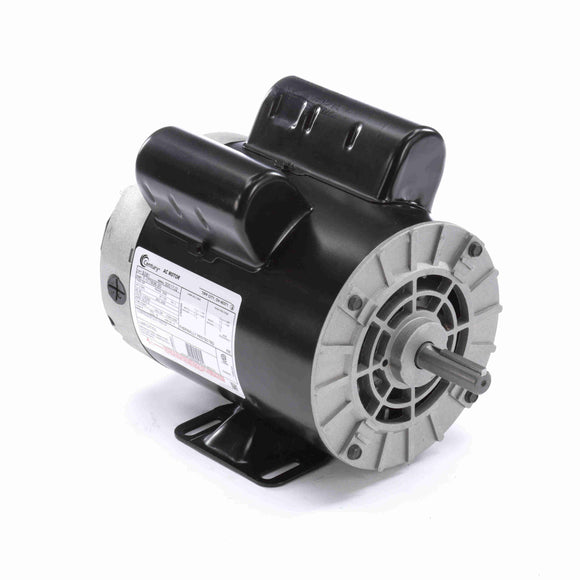

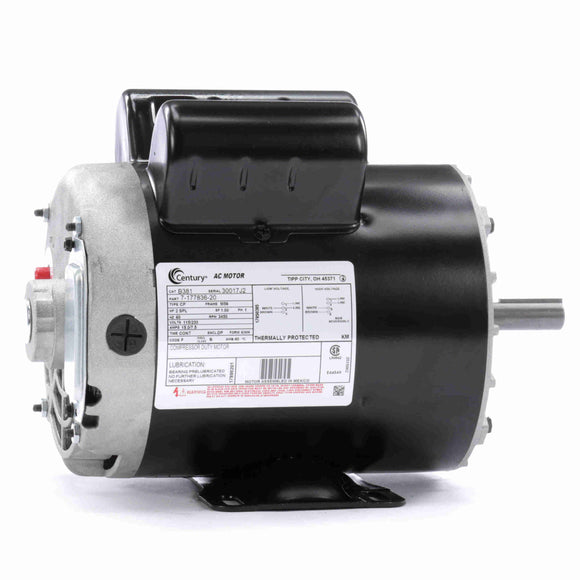

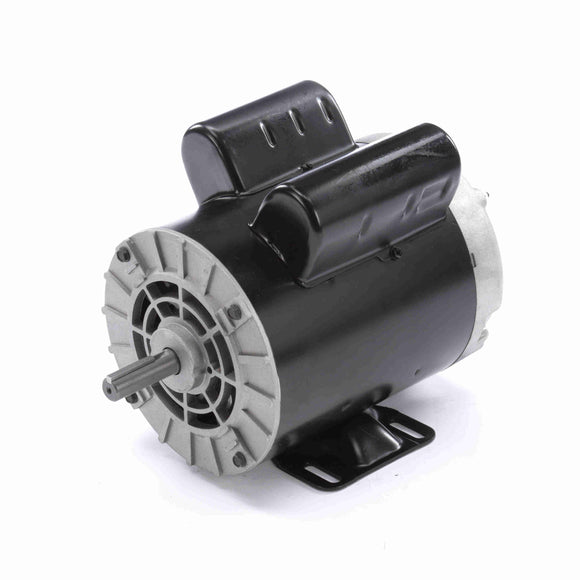

Features
Rigid Base, Capacitor Start, Capacitor Run
General Specifications
General Specifications
| Model : | Catalog No : | B381 | |
| Part Description : | 2SPL,3450,DP,56,1/60/115/230 | Category : | Air Compressor |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 2 SPL Hp | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 115/230 V |
| Current : | 15.0/7.5 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | B |
| Frame : | M56 | Enclosure : | Drip Proof |
| Overload Protector : | Thermally Protected | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | Y |
| CE : | N |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start, Capacitor Run, Single Or Dual Voltage | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Clockwise |
| Mounting : | Rigid Base | Drive End Bearing : | Ball |
| Opp Drive End Bearing : | Ball | Frame Material : | Rolled Steel |
| Shaft Type : | Keyed | Overall Length : | 11.34 in |
| Frame Length : | 6.75 in | Shaft Diameter : | 0.625 in |
| Shaft Extension : | 1.94 in | UPC : | 786674012371 |
| Weight : | 27.00 LB |
Speed & Load Characteristics
