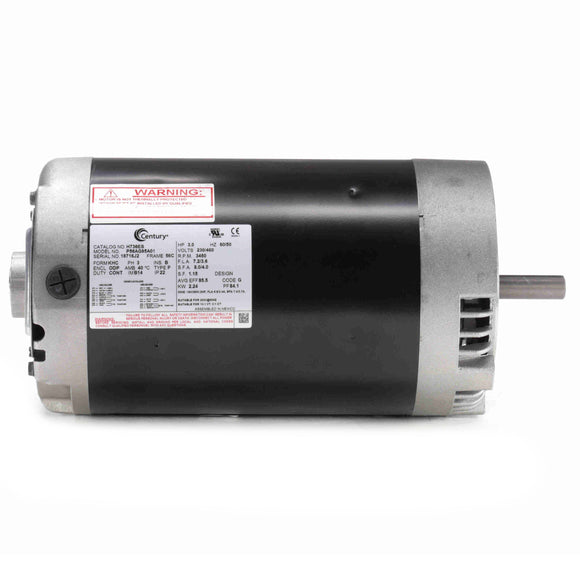

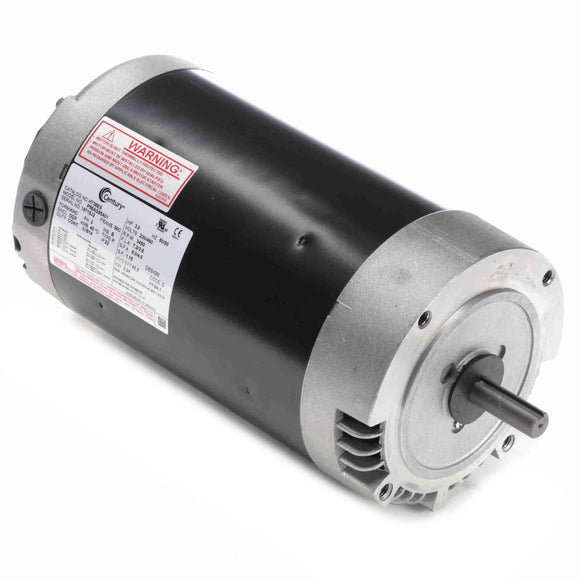

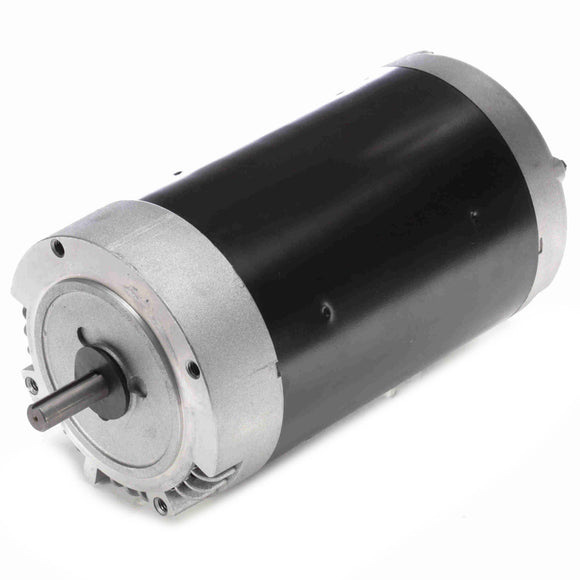

H736ES Century 3HP General Purpose Pump Electric Motor, 3600RPM

$739.97 USD $2,179.00 USD Save $1,439.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: H736ES Barcode: 786674071217

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Mechanically locked bearing on shaft end
  • Double sealed ball bearings
  • Keyed shaft

General Specifications

UPC: 786674071217 Weight: 21.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 3.0 Hp Output KW: 2.2 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 7.2/3.6 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
UL: Recognized CSA: N
CE: Y

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.03 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in
