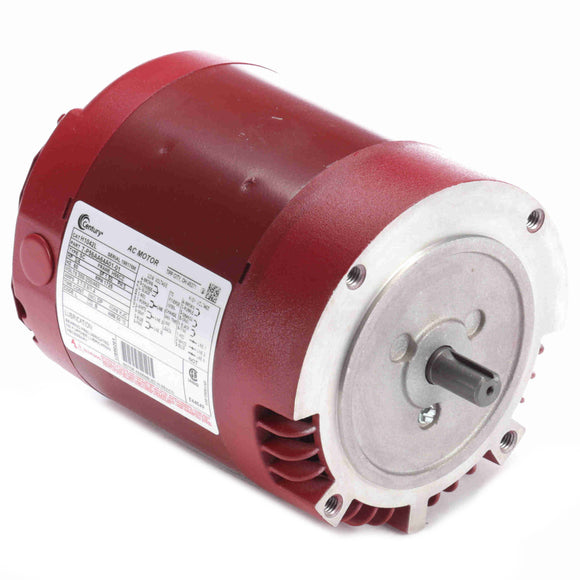

H1042L Century 3/4HP Circulator Pump Electric Motor, 1800RPM

$559.97 USD $975.00 USD Save $415.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: H1042L Barcode: 786674022615

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • Reversible
  • Cushion ring, no base and C-face
  • No protector

General Specifications

UPC: 786674022615 Weight: 21.00 LB
Packaged Length: 14 IN Packaged Width: 8 IN
Packaged Height: 8.5 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.7-2.8/1.4 A Speed: 1725 rpm
Service Factor: 1.5 Phase: 3
Duty: Continuous Insulation Class: B
Frame: H56CZ Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 9.25 in
Frame Length: 4.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.25 in
