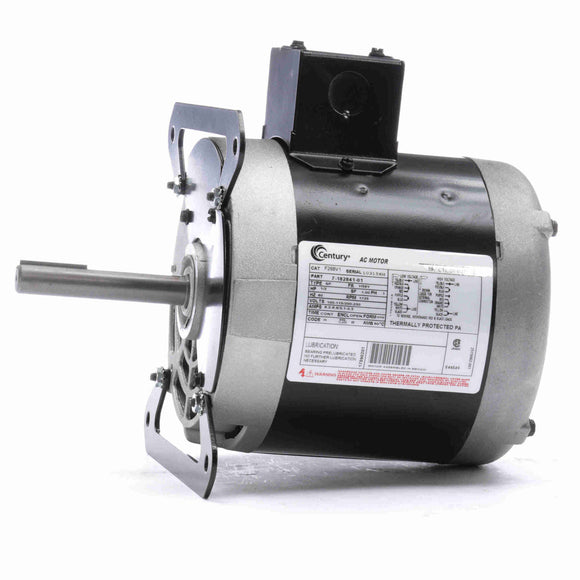

Century F268V1 Convection Oven Motor, 1/2HP 1725RP

$764.97 USD $1,522.00 USD Save $757.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: F268V1 Barcode: 786674070470

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!
Features
  • Double sealed ball bearings
  • Automatic reset overload protector
  • Proofing switch included
General Specifications
Model : Catalog No : F268V1
Part Description : 1/2,1725,OPEN,56Y,1/60/100-115/200-230 Category : Convection and Pizza Oven
Stock : Yes
Nameplate Specifications
Output HP : 1/2 Hp Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 100-115/200-230 V
Current : 6.2-6.6/3.1-3.3 A Speed : 1725 rpm
Service Factor : 1 Phase : 1
Duty : Continuous Insulation Class : B
Frame : H56Y Enclosure : Open Enclosed
Overload Protector : Thermally Protected Ambient Temperature : 60 °C
UL : Recognized CSA : Y
CE : N
Technical Specifications
Electrical Type : Split Phase, Induction Run, Single Or Dual Voltage Starting Method : Across The Line
Poles : 4 Rotation : Reversible Clockwise
Mounting : Round Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Keyed Overall Length : 10.62 in
Frame Length : 4.13 in Shaft Diameter : 0.625 in
Shaft Extension : 3.5 in UPC : 786674070470
Weight : 21.00 LB
