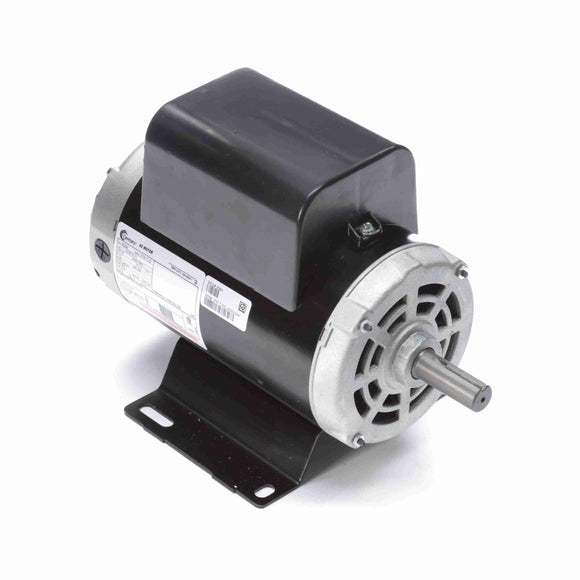

B384 Century 5HP Air Compressor Electric Motor, 3450RPM

$417.97 USD $1,569.00 USD Save $1,151.03 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: B384 Barcode: 786674012401

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No : B384
Part Description : 5,3450,DP,56Y,1/60/208-230 Category : Air Compressor
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 5.0 Hp Output KW : 3.7 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 22.0 A Speed : 3450 rpm
Service Factor : 1.15 Phase : 1
Duty : Continuous Insulation Class : B
Frame : R56Y Enclosure : Drip Proof
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method : Across The Line
Poles : 2 Rotation : Clockwise
Mounting : Rigid Base Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Keyed Overall Length : 14.56 in
Frame Length : 8.75 in Shaft Diameter : 0.875 in
Shaft Extension : 2.31 in UPC : 786674012401
Weight : 50.00 LB

Speed & Load Characteristics
