Features
Features
- Sealed Switch Design
- UL 1081 Design
- 50°C Ambient
- 304 Bearing Shaft End
- 303 Stainless Steel Shaft
- Threaded Shaft
- Capacitor Start-Capacitor Run
General Specifications
General Specifications
| Model : | Catalog No : | UST1202 | |

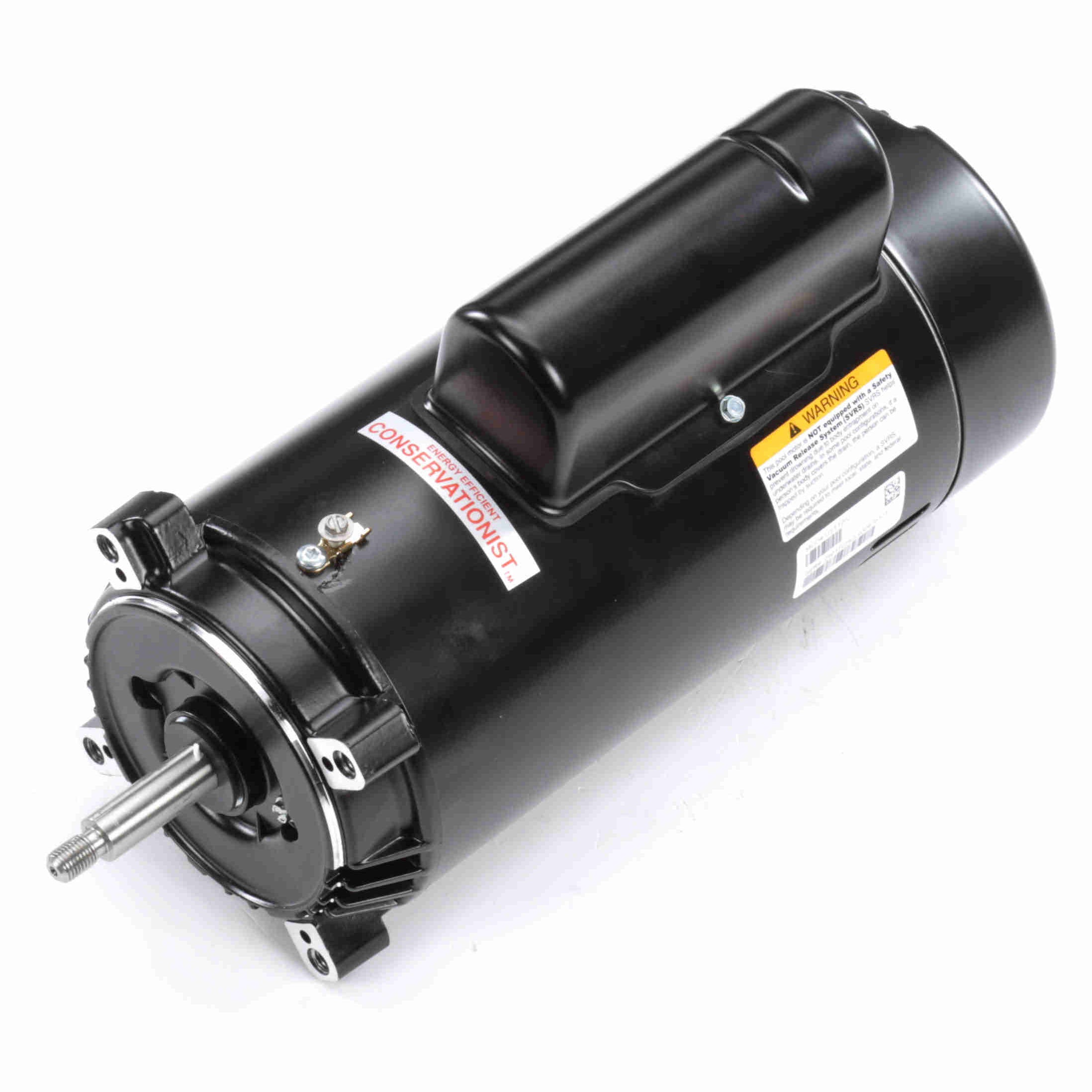

| Part Description : | 2 HP 3450 115-208/230 ODP 56J THD SHAFT | Category : | Induction Motors |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 2 HP | Output KW : | 1.5 kW |
| Frequency : | 60 Hz | Voltage : | 208-230/115 V |
| Current : | 10.4-9.8/19.6 A | Speed : | 3450 RPM |
| Service Factor : | 1.1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | B |
| Frame : | 56J | Enclosure : | Open Drip Proof |
| Overload Protector : | Automatic | Ambient Temperature : | 50 °C |
| UL : | Recognized | CSA : | Y |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Counterclockwise Pump End |
| Mounting : | Round | Motor Orientation : | Horizontal |
| Drive End Bearing : | Ball | Opp Drive End Bearing : | Ball |
| Frame Material : | Rolled Steel | Shaft Type : | Threaded |
| Overall Length : | 15.20 in | Frame Length : | 9.38 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.565 in |
| UPC : | 786674033352 | Weight : | 33.00 LB |
Speed & Load Characteristics
