Features
Features

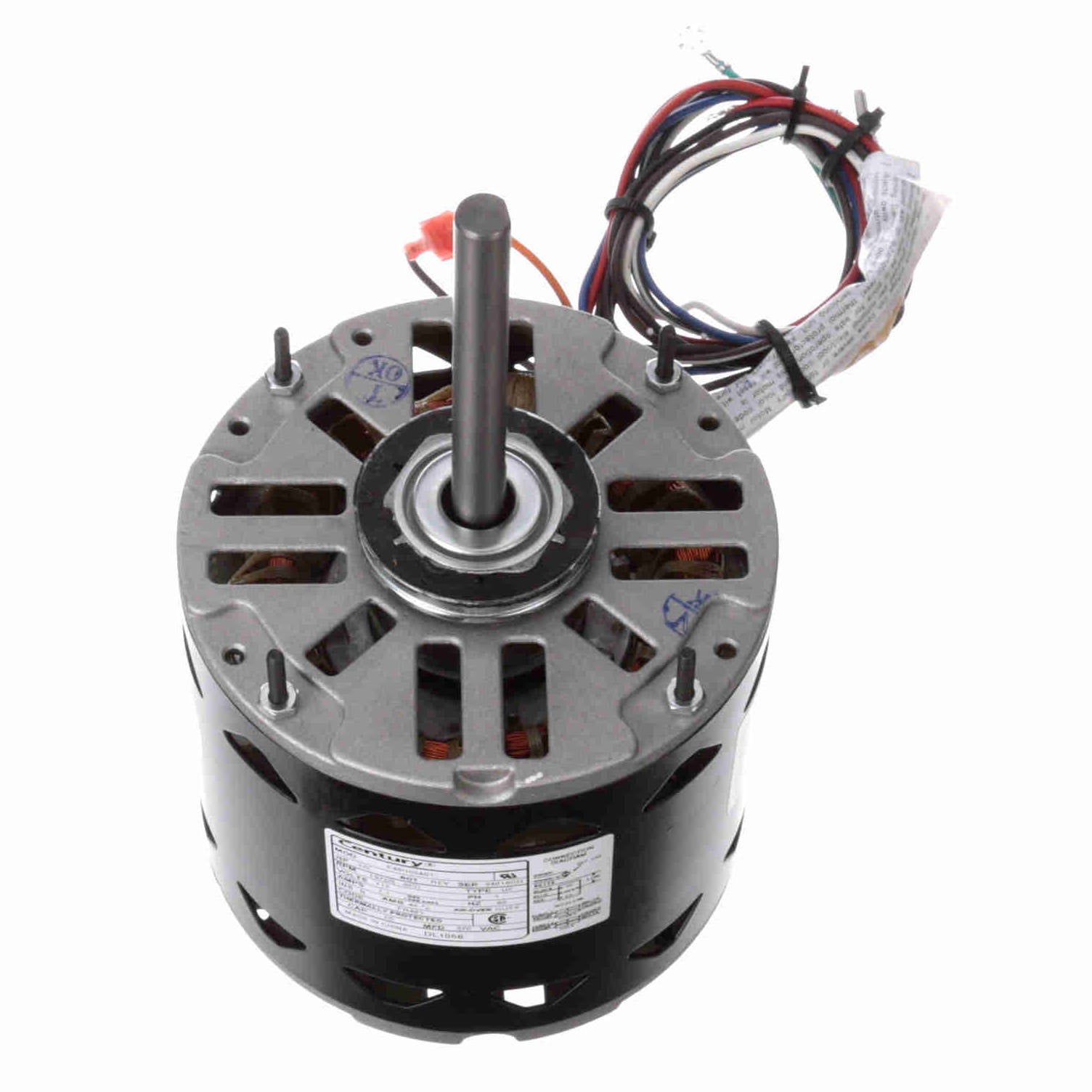

- Fan Coils - Dual Wheel Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 26" Leads
- Extended Studs Shaft End, Resilient Ring Mounting, Belly Band Mount
General Specifications
General Specifications
| Model : | Catalog No : | DL1076 | |
| Part Description : | MODEL-RFHP-48FR | Category : | Direct Drive |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 3/4 Hp | Output KW : | 0.56 kW |
| Frequency : | 60 Hz | Voltage : | 115 V |
| Current : | 9.5 A | Speed : | 1075 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Air Over | Insulation Class : | B |
| Frame : | 48 | Enclosure : | Open Enclosed |
| Overload Protector : | Automatic | Ambient Temperature : | 50 °C |
| UL : | Recognized | CSA : | Y |
| CE : | N |
Technical Specifications
Technical Specifications
| Electrical Type : | Permanent Split Capacitor | Starting Method : | Induction Run |
| Poles : | 6 | Rotation : | Reversible |
| Mounting : | Resilient Rings | Motor Orientation : | Any |
| Drive End Bearing : | Sleeve | Opp Drive End Bearing : | Sleeve |
| Frame Material : | Rolled Steel | Shaft Type : | Flat |
| Overall Length : | 10.61 in | Frame Length : | 5.00 in |
| Shaft Diameter : | 0.500 in | Shaft Extension : | 4.5 in |
| UPC : | 786674018571 | Weight : | 19.00 LB |
