Features
Features
- High starting and breakdown torque
- Heavy gauge steel frame and base
General Specifications
General Specifications

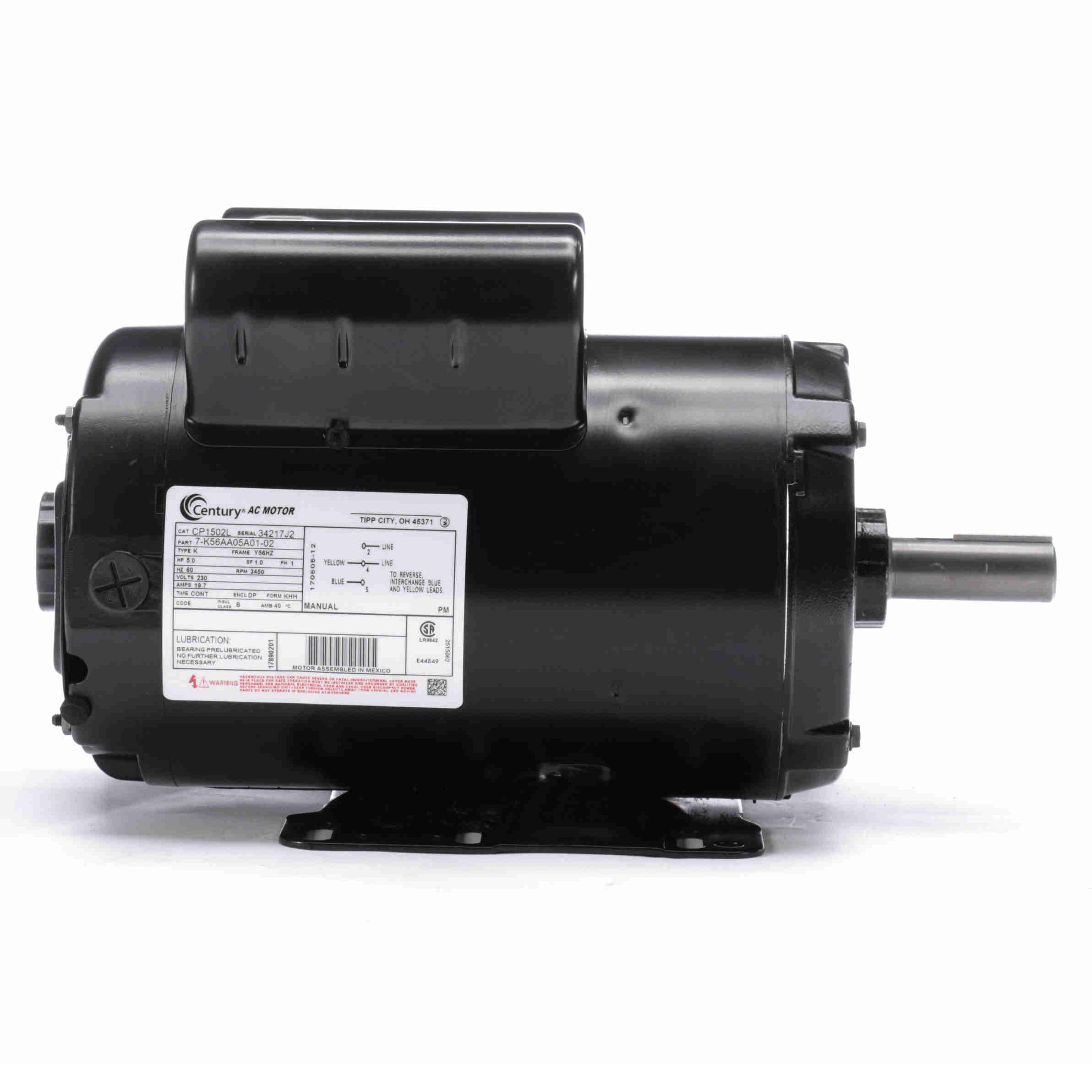

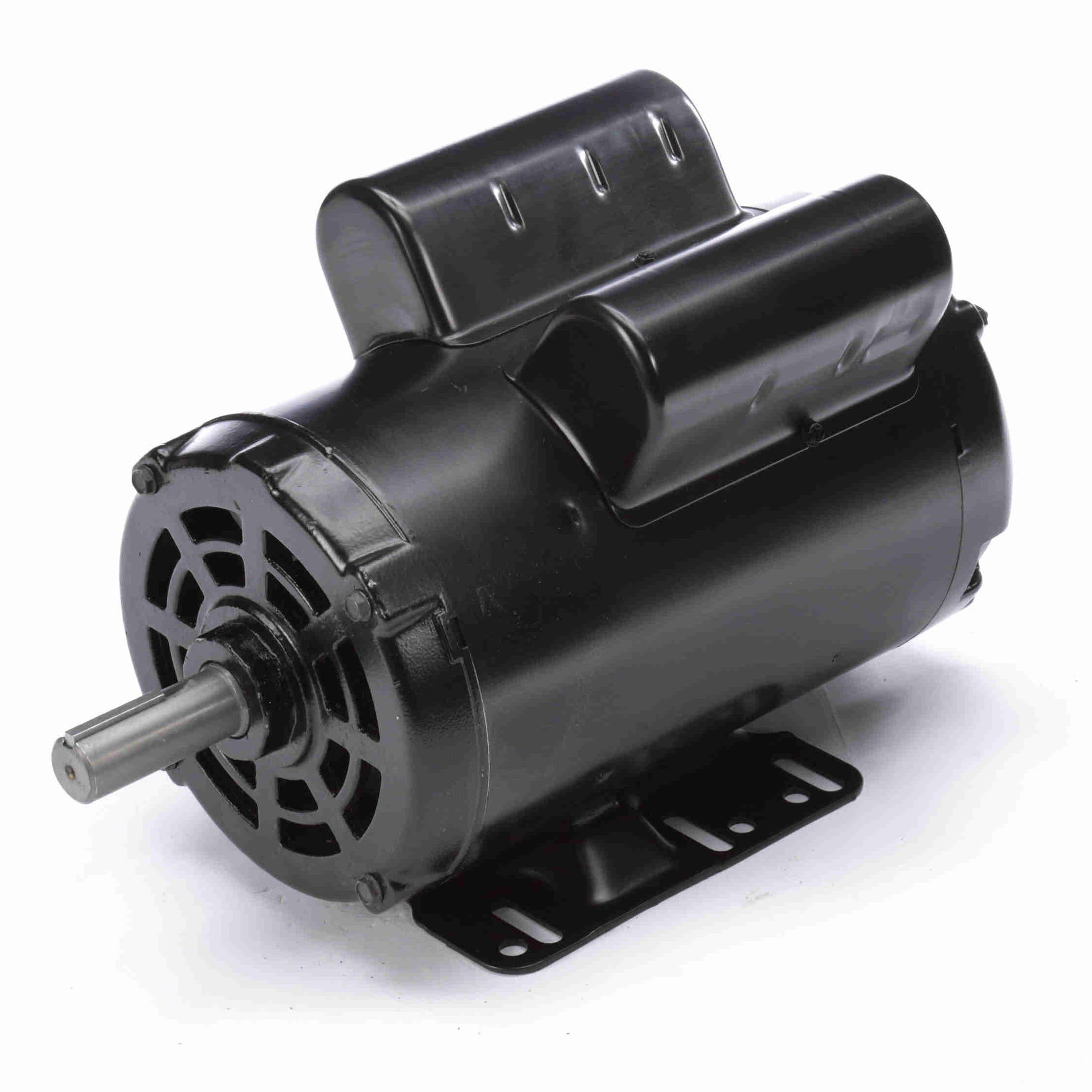

| Model : | Catalog No : | CP1502L | |
| Part Description : | 5,3450,DP,56HZ,1/60/230 | Category : | Air Compressor |
| Stock : | Yes |
Nameplate Specifications
Nameplate Specifications
| Output HP : | 5.0 Hp | Output KW : | 3.7 kW |
| Frequency : | 60 Hz | Voltage : | 230 V |
| Current : | 19.7 A | Speed : | 3450 rpm |
| Service Factor : | 1 | Phase : | 1 |
| Duty : | Continuous | Insulation Class : | B |
| Frame : | Y56HZ | Enclosure : | Drip Proof |
| Overload Protector : | Manual | Ambient Temperature : | 40 °C |
| UL : | Recognized | CSA : | Y |
| CE : | N |
Technical Specifications
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 2 | Rotation : | Reversible Clockwise |
| Mounting : | Rigid Base | Drive End Bearing : | Ball |
| Opp Drive End Bearing : | Ball | Frame Material : | Rolled Steel |
| Shaft Type : | Keyed | Overall Length : | 14.06 in |
| Frame Length : | 8.25 in | Shaft Diameter : | 0.875 in |
| Shaft Extension : | 2.31 in | UPC : | 786674017222 |
| Weight : | 44.00 LB |
