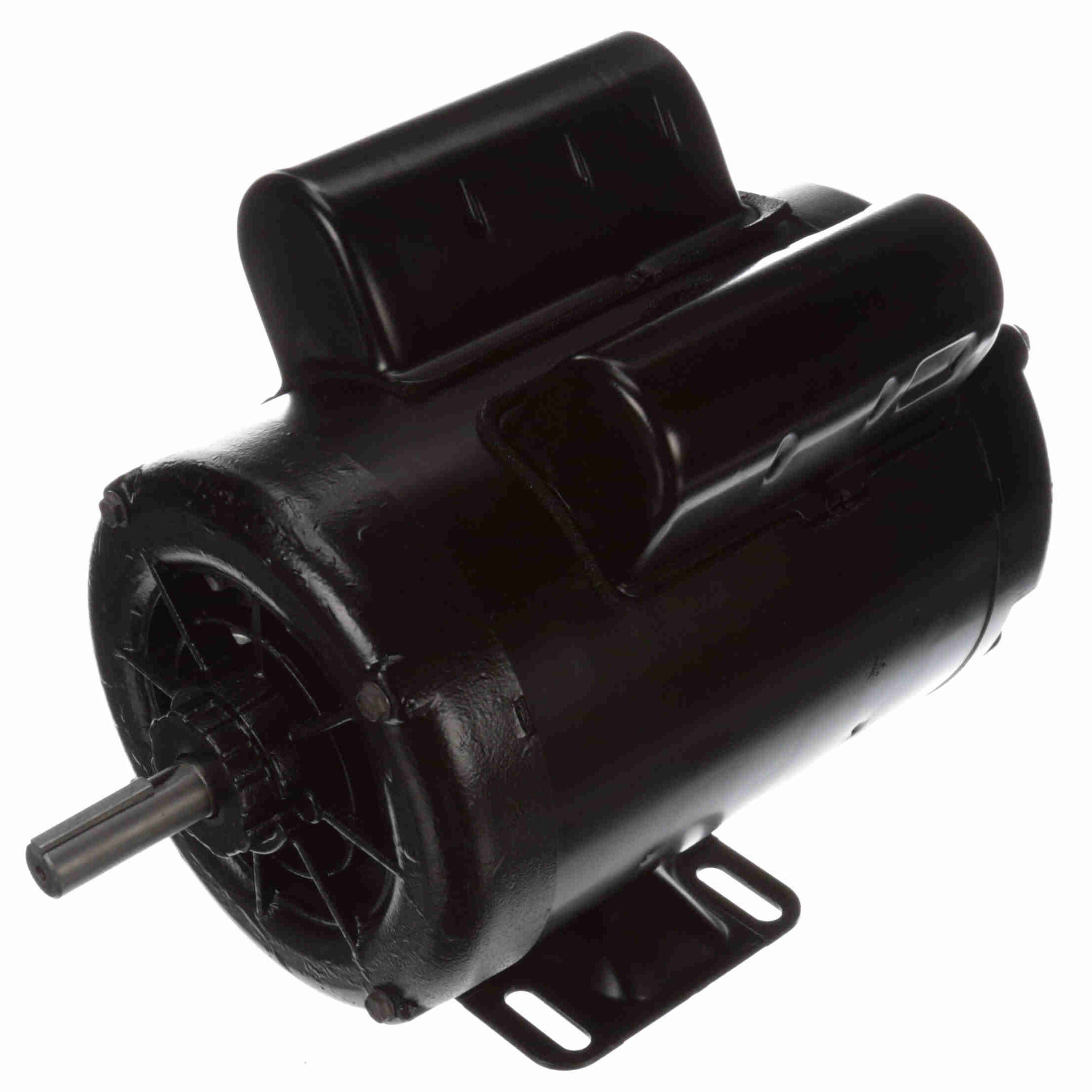

CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM
CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM
CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM
CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM

CP1302L Century 3HP Compressor Duty Electric Motor, 3450RPM

$509.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: CP1302L Barcode: 786674017215

DP, 56 Frame, 208-230VAC Single Phase 60Hz, Rigid Base, Rolled Steel, 5/8" Shaft

Description Product Specs Manufacturer

Features

Features
  • High starting and breakdown torque
  • Heavy gauge steel frame and base

General Specifications

General Specifications
Model : Catalog No : CP1302L
Part Description : 3,3450,DP,56,1/60/208-230 Category : Air Compressor
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 3.0 HP Output KW : 2.2 kW
Frequency : 60 Hz Voltage : 208-230 V
Current : 13.1-12.3 A Speed : 3450 RPM
Service Factor : 1 Phase : 1
Duty : Continuous Insulation Class : B
Frame : M56 Enclosure : Drip Proof
Overload Protector : Thermally Protected Ambient Temperature : 40 °C
UL : Recognized CSA : Y
CE : N

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method : Across The Line
Poles : 2 Rotation : Reversible Counterclockwise
Mounting : Rigid Base Drive End Bearing : Ball
Opp Drive End Bearing : Ball Frame Material : Rolled Steel
Shaft Type : Keyed Overall Length : 12.69 in
Frame Length : 6.75 in Shaft Diameter : 0.625 in
Shaft Extension : 1.94 in UPC : 786674017215
Weight : 33.00 LB

Speed & Load Characteristics

Application
  • Air Compressor
Enclosure
  • DP
Frame Size
  • 56
Horsepower
  • 3HP
Input Phase
  • Single Phase
Input Voltage
  • 208VAC
  • 230VAC
Speed
  • 3450RPM
Type
  • Electric Motor
UPC
  • 786674017215
Weight
  • 33.0 lb
Frame Material
  • Steel

Century Electric Motor (Regal Rexnord)
