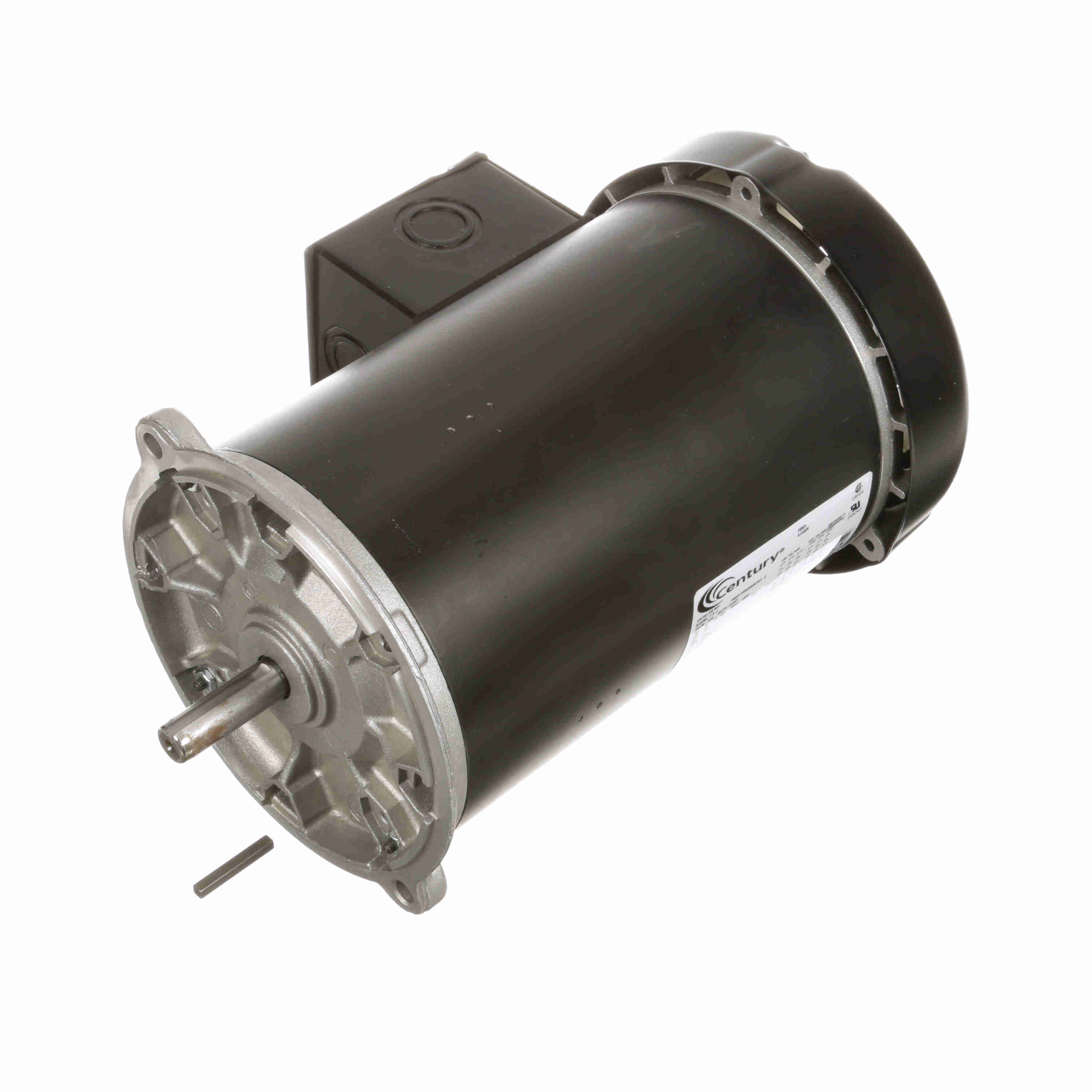

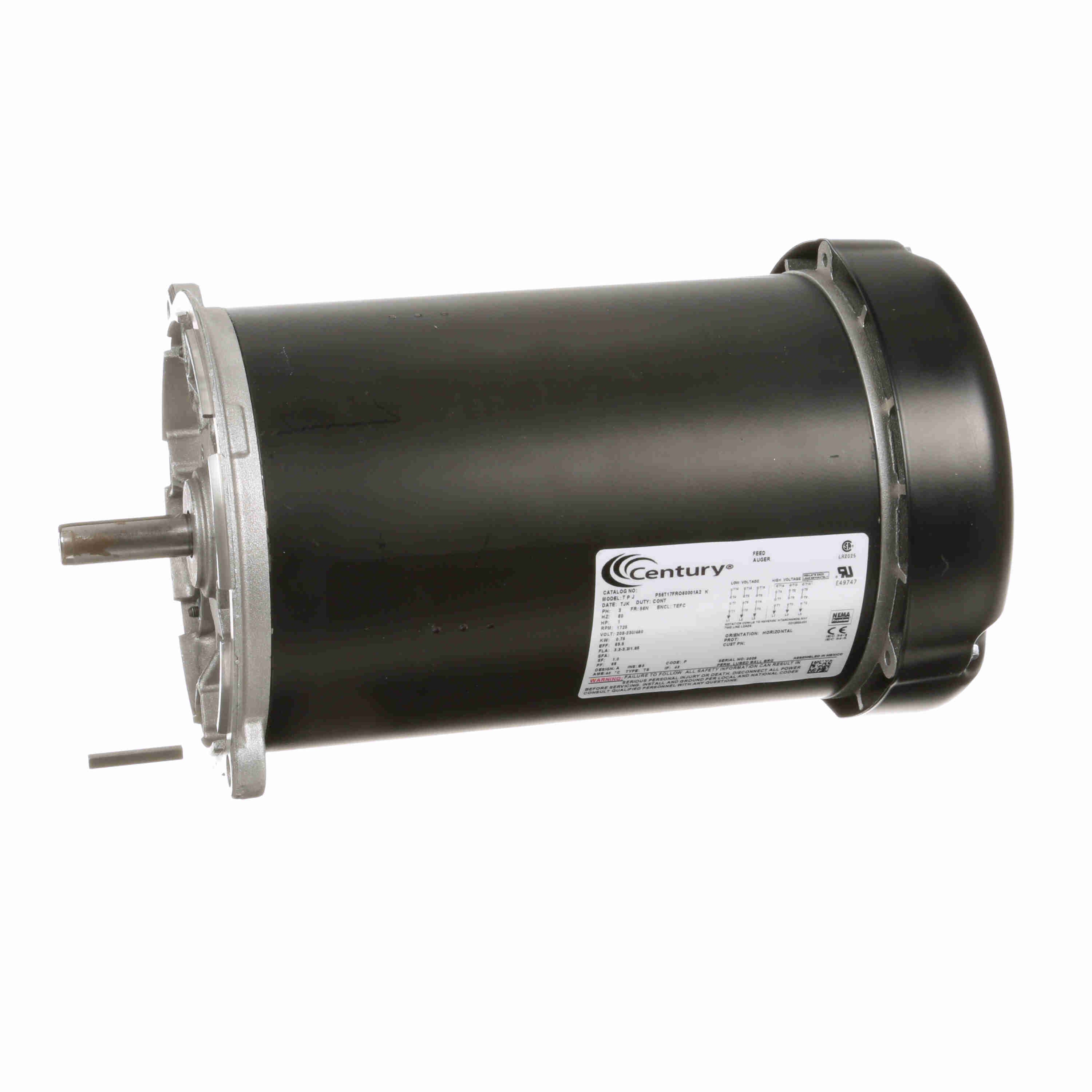

C348ES Century 1HP Auger Drive Electric Motor, 1800RPM-1
C348ES Century 1HP Auger Drive Electric Motor, 1800RPM-2
C348ES Century 1HP Auger Drive Electric Motor, 1800RPM-3
C348ES Century 1HP Auger Drive Electric Motor, 1800RPM-4

C348ES Century 1HP Auger Drive Electric Motor, 1800RPM

$889.97

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: C348ES Barcode: 786674073631

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Features

  • High starting torque
  • Manual reset thermal protector
  • Torque switch and governor

General Specifications

UPC: 786674073631 Weight: 45.00 LB
Packaged Length: 16.2 IN Packaged Width: 10.25 IN
Packaged Height: 8.12 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.3-3.3/1.65 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56N Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.30 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.96 in
