Features
- Reversible
- Cushion ring, no base and C-face
- No protector
General Specifications
| UPC: | 786674057143 | Weight: | 24.00 LB |
| Packaged Length: | 15.5 IN | Packaged Width: | 10.5 IN |
| Packaged Height: | 10 IN |

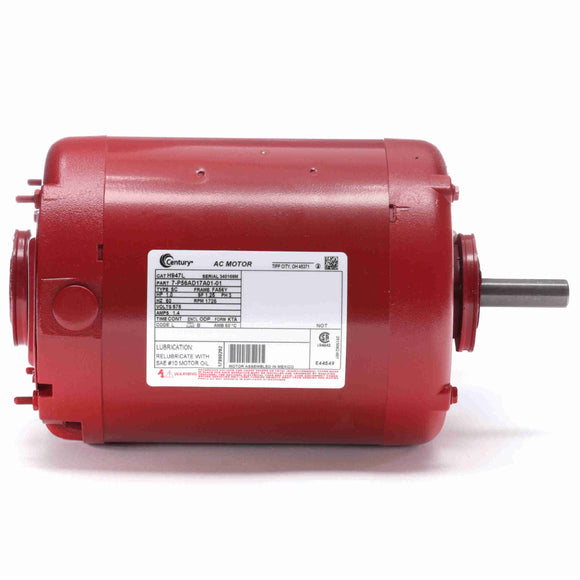

Nameplate Specifications
| Output HP: | 1.0 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 575 V |
| Current: | 1.4 A | Speed: | 1725 rpm |
| Service Factor: | 1.25 | Phase: | 3 |
| Duty: | Continuous | Insulation Class: | B |
| Frame: | FA56Y | Enclosure: | Open Drip Proof |
| Thermal Protection: | None | Ambient Temperature: | 50 °C |
| UL: | Recognized | CSA: | Y |
| CE: | N |
Technical Specifications
| Electrical Type: | Polyphase, Induction Type, Single Or Dual Voltage | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Reversible Counterclockwise |
| Mounting: | Cushion Ring | Drive End Bearing: | Sleeve |
| Opp Drive End Bearing: | Sleeve | Frame Material: | Rolled Steel |
| Shaft Type: | Keyed | Overall Length: | 11.69 in |
| Frame Length: | 5.75 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 1.94 in |
