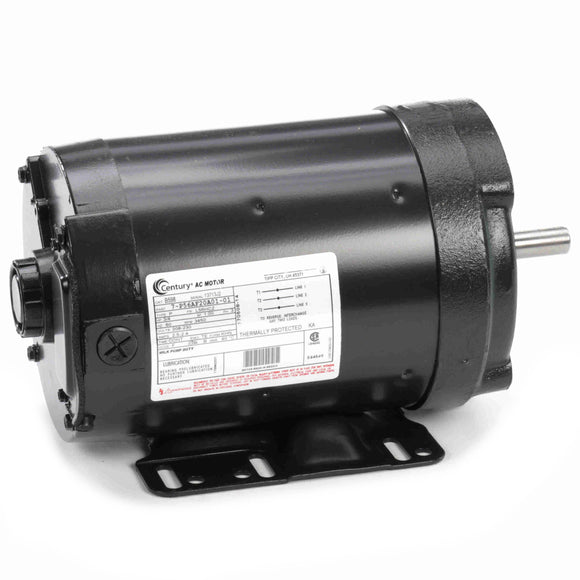

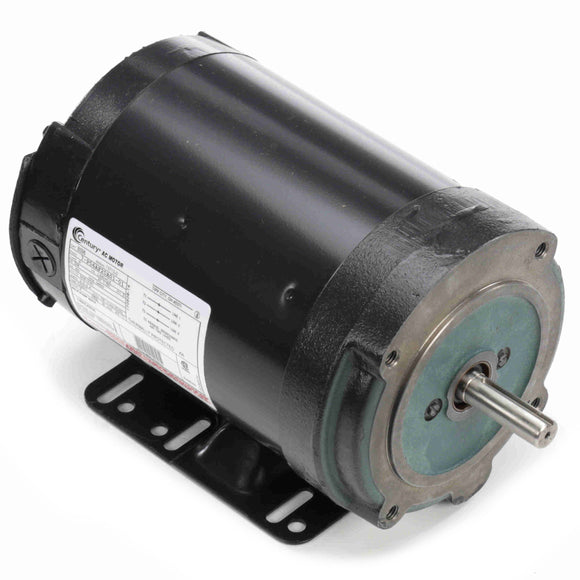

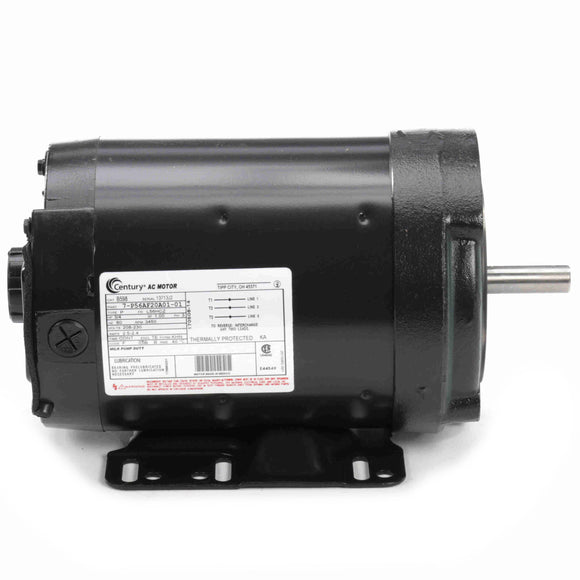

B598 Century 3/4HP Milk Pump Duty Electric Motor, 3600RPM

$669.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: B598 Barcode: 786674061324

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, 56HCZ Frame, 208-230VAC 60Hz 3-Phase, 7-P56AF20A01-01, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features






  • Weatherproof features for washdown

  • Cast iron NEMA "C" end bracket

  • Stainless steel shaft

  • Auto overload protector





General Specifications























UPC: 786674061324 Weight: 38.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN


Nameplate Specifications



























































Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 2.5-2.4 A Speed: 3450 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: L56HCZ Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N


Technical Specifications















































Electrical Type: Polyphase Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.20 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in


  • Electric Motor
  • 56HCZ
  • TENV
  • 3-Phase
  • 3/4HP
  • 3600RPM

Century Electric Motor (Regal Rexnord)
