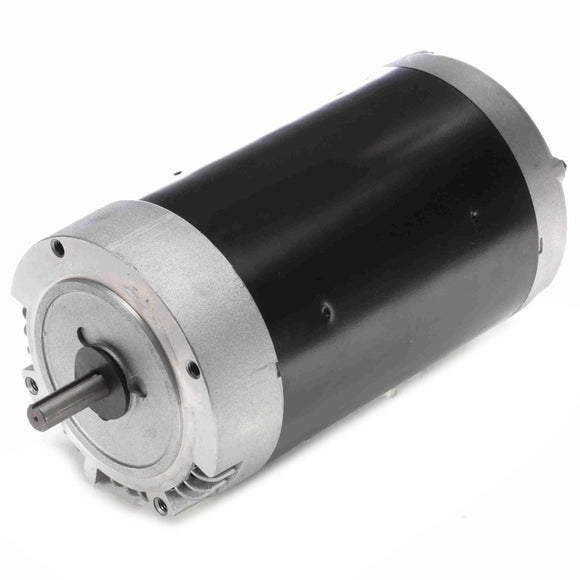

H736ES Century 3HP General Purpose Pump Electric Motor, 3600RPM
H736ES Century 3HP General Purpose Pump Electric Motor, 3600RPM
H736ES Century 3HP General Purpose Pump Electric Motor, 3600RPM
H736ES Century 3HP General Purpose Pump Electric Motor, 3600RPM

H736ES Century 3HP General Purpose Pump Electric Motor, 3600RPM

$879.97 USD

Shipping calculated at checkout

Century Electric Motor (Regal Rexnord) SKU: H736ES Barcode: 786674071217

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 56C Frame, 230/460VAC 60Hz 3-Phase, P56AG95A01, Rolled Steel, Round Body, C-Face, 5/8" Keyed Shaft

Description Product Specs Manufacturer





Features






  • Mechanically locked bearing on shaft end

  • Double sealed ball bearings

  • Keyed shaft





General Specifications























UPC: 786674071217 Weight: 21.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

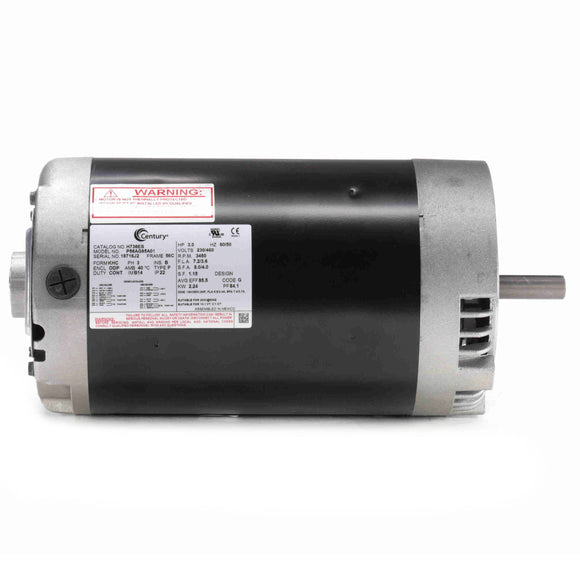

Nameplate Specifications



























































Output HP: 3.0 Hp Output KW: 2.2 kW
Frequency: 60/50 Hz Voltage: 230/460 V
Current: 7.2/3.6 A Speed: 3450 rpm
Service Factor: 1.15 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: No Ambient Temperature: 40 °C
UL: Recognized CSA: N
CE: Y


Technical Specifications















































Electrical Type: Polyphase Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.03 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in



Enclosure
  • ODP
Frame Size
  • 56C
Horsepower
  • 3HP
Input Phase
  • 3-Phase
Speed
  • 3600RPM
Type
  • Electric Motor
UPC
  • 786674071217
Weight
  • 21.0 lb

Century Electric Motor (Regal Rexnord)
