Specifications
• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
| Brand | Leeson |
|---|---|
| Part Number | BK85H |
| Outside Diameter | 8.25" |
| Pulley Diameter "A" | 7.50" |
| Pulley Diameter "3L" | 7.90" |
| Type | 3 |

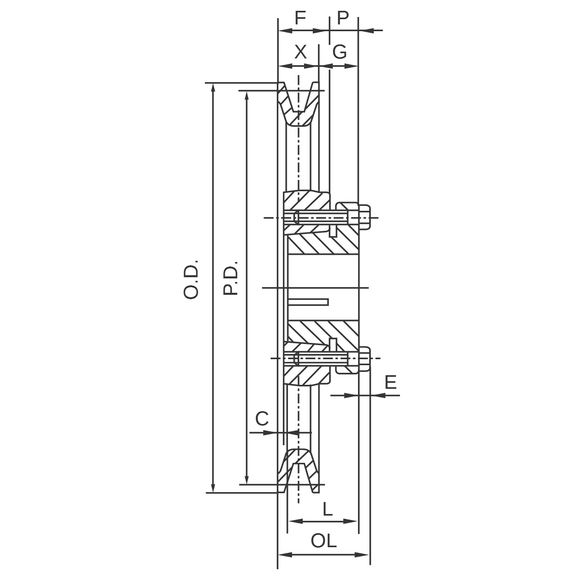

| Dimension "OL" | 1-9/16" |
| Dimension "F" | 7/8" |
| Dimension "L" | 1-1/4" |
| Dimension "P" | 7/16" |
| Dimension "C" | 1/16" |
| Dimension "X" | 7/8" |
| Dimension "G" | 7/16" |
| Dimension "E" | 3/16" |
| Approximate Weight | 3.8 lbs |
| UPC | 624832037500 |
| Country of Origin | China |
