Specifications
• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
| Brand | AMEC Various |
|---|---|
| Part Number | BK72H |

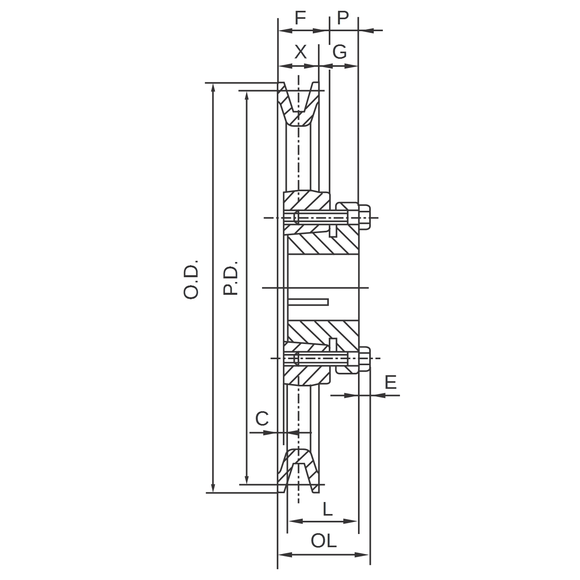

| Outside Diameter | 6.95" |
| Pulley Diameter "A" | 6.20" |
| Pulley Diameter "3L" | 6.60" |
| Type | 3 |
| Dimension "OL" | 1-9/16" |
| Dimension "F" | 7/8" |
| Dimension "L" | 1-1/4" |
| Dimension "P" | 7/16" |
| Dimension "C" | 1/16" |
| Dimension "X" | 7/8" |
| Dimension "G" | 7/16" |
| Dimension "E" | 3/16" |
| Approximate Weight | 3.1 lbs |
| UPC |
