Specifications
• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
| Brand | Various AMEC |
|---|---|
| Part Number | BK55H |
| Outside Diameter | 5.25" |
| Pulley Diameter "A" | 4.50" |
| Pulley Diameter "3L" | 4.90" |
| Type | 2 |

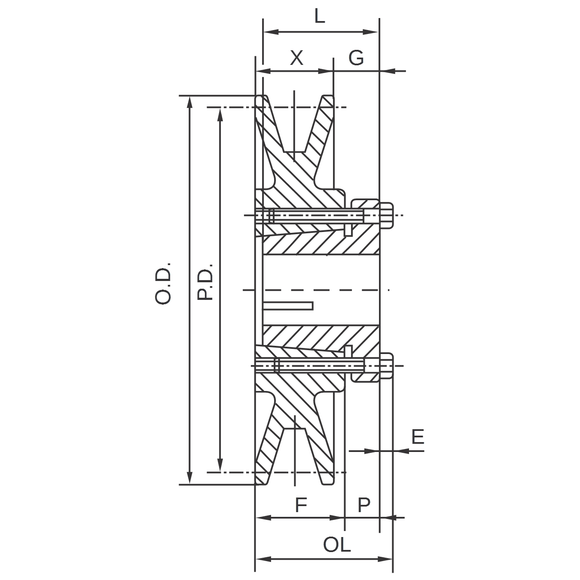

| Dimension "OL" | 1-1/2" |
| Dimension "F" | 7/8" |
| Dimension "L" | 1-1/4" |
| Dimension "P" | 7/16" |
| Dimension "X" | 7/8" |
| Dimension "G" | 7/16" |
| Dimension "E" | 3/16" |
| Approximate Weight | 2.7 lbs |
| UPC |
