Specifications
• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
| Brand | Leeson Various |
|---|---|
| Part Number | BK30H |
| Outside Diameter | 3.15" |
| Pulley Diameter "A" | 2.40" |
| Pulley Diameter "3L" | 2.80" |
| Type | 1 |

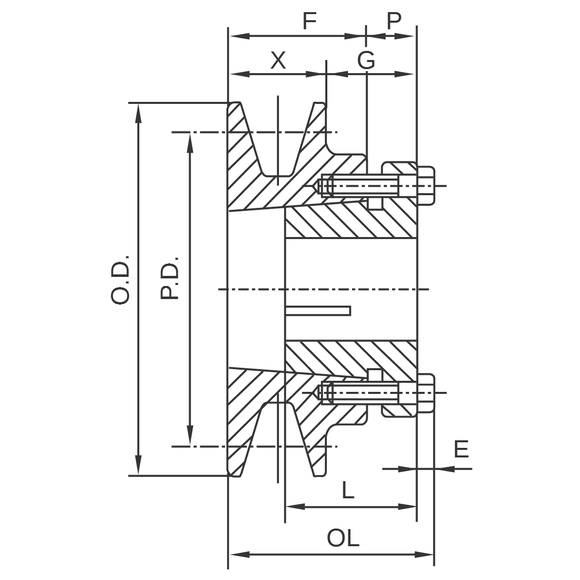

| Dimension "OL" | 1-15/16" |
| Dimension "F" | 7/8" |
| Dimension "L" | 1-1/4" |
| Dimension "P" | 7/8" |
| Dimension "X" | 1-5/16" |
| Dimension "G" | 7/16" |
| Dimension "E" | 3/16" |
| Approximate Weight | 1.2 lbs |
| UPC |
