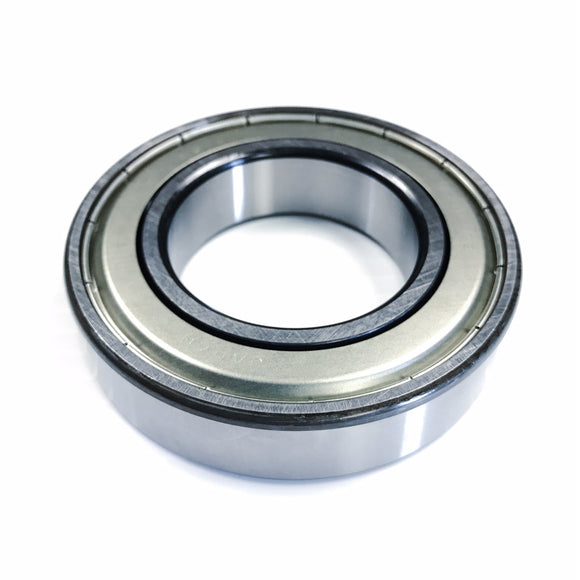

6308ZZC3 Koyo Ball Bearing, Double Shielded

$41.18 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6308-ZZC3 Barcode: 4549250170850

30 Day
Return Policy

Ships Fast
in 24 hours

6

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6308ZZC3
Group Deep Groove Ball Bearings

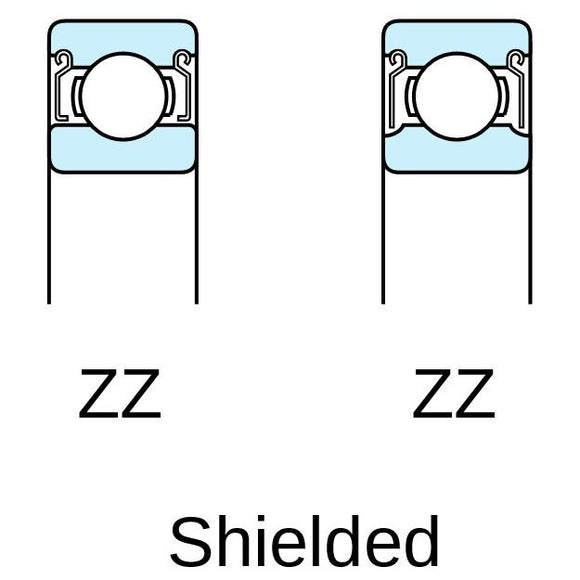

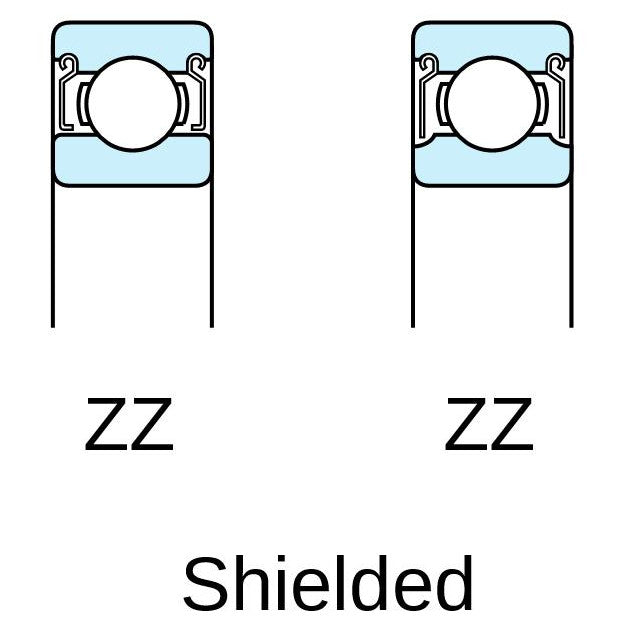

Type Shielded (ZZ)

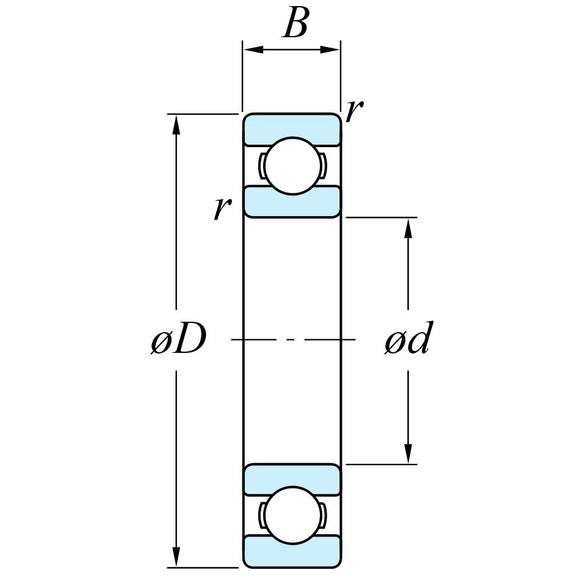

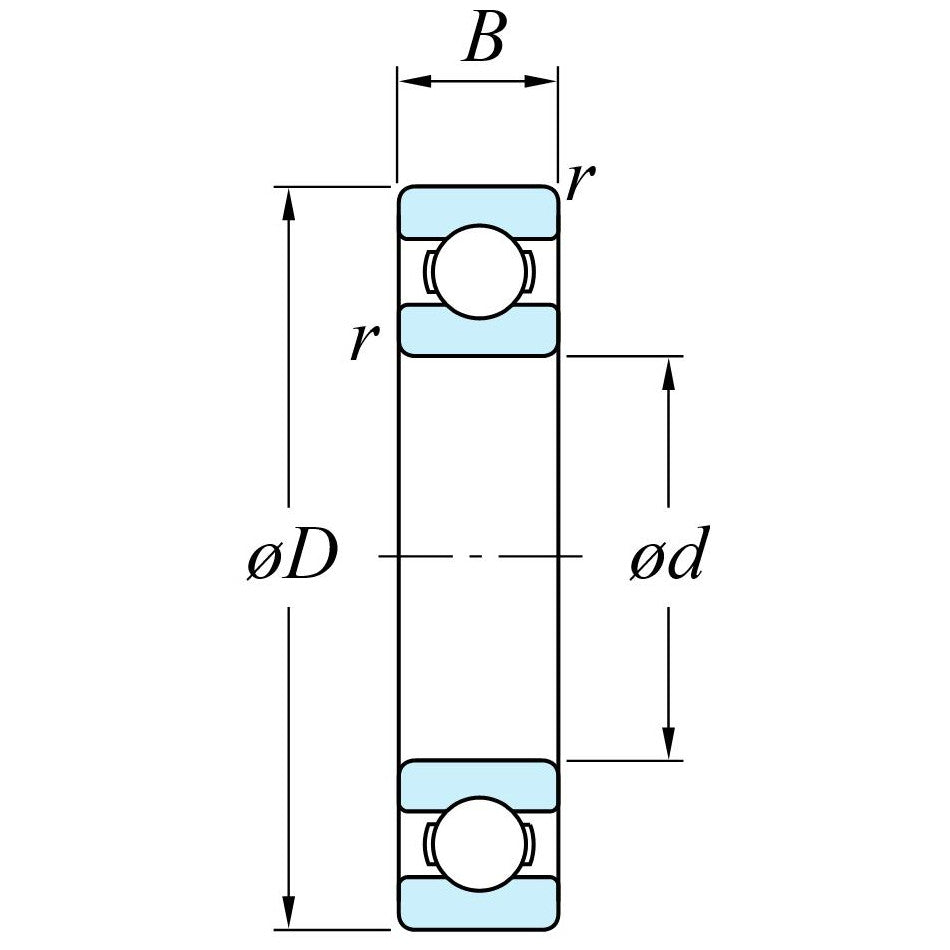

Bore / Inside Diameter (d) 40 mm
Housing / Outside Diameter (D) 90 mm
Width (B) 23 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 40.7 kN
C0r 24.0 kN
Fatigue Load Limit (Cu) 1.85 kN
Factor (f0) 13.2
Limiting Speeds (Grease Lubrication) 7,700 min-1

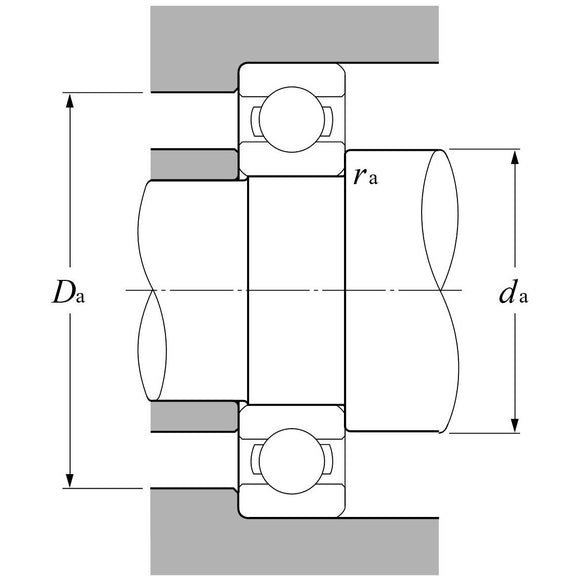

Shaft Shoulder Mounting Dimension (da) 48 mm Minimum
51.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 82 mm Maximum
Shoulder Radius (ra) 1.5 mm Maximum
Mass 0.633 kg
1.40 lbs
UPC 4549250170850
Country of Manufacture Japan
