63082RDC3 Koyo Ball Bearing, Rubber Sealed

$44.19 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6308-2RS Barcode: 4549250171000

30 Day
Return Policy

Ships Fast
in 24 hours

5

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63082RDC3
Group Deep Groove Ball Bearings
Type Extremely Light Contact Sealed (2RD)

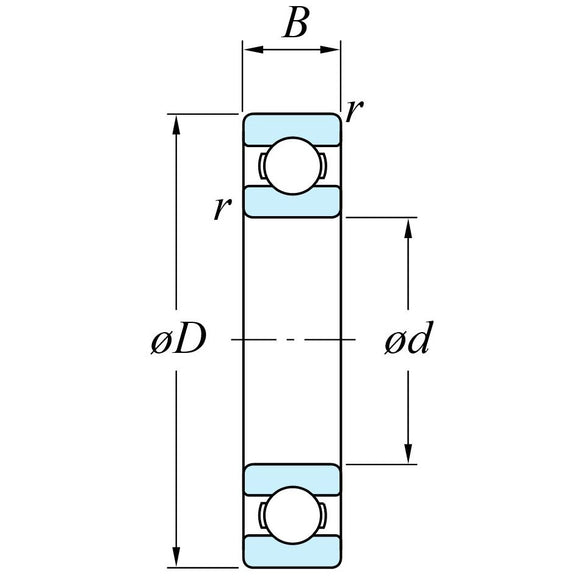

Bore / Inside Diameter (d) 40 mm
Housing / Outside Diameter (D) 90 mm
Width (B) 23 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 40.7 kN
C0r 24.0 kN
Limiting Speeds (Grease Lubrication) 6,900 min-1
Mass 0.633 kg
1.40 lbs
UPC 4549250171000
Country of Manufacture Japan
