63032RDC3 Koyo Ball Bearing, Rubber Sealed

$13.97

Shipping calculated at checkout

JTEKT Corporation SKU: 6303-2RS Barcode: 4549250166877

30 Day
Return Policy

Ships Fast
in 24 hours

5

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63032RDC3
Group Deep Groove Ball Bearings

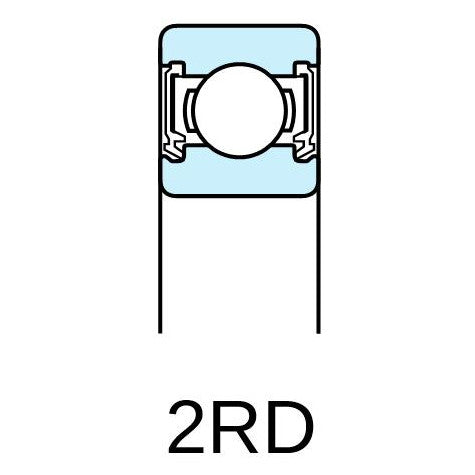

Type Extremely Light Contact Sealed (2RD)

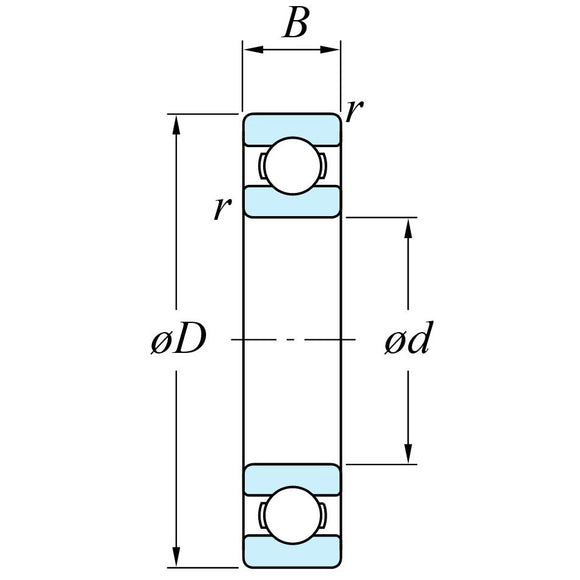

Bore / Inside Diameter (d) 17 mm
Housing / Outside Diameter (D) 47 mm
Width (B) 14 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 13.6 kN
C0r 6.65 kN
Limiting Speeds (Grease Lubrication) 14,000 min-1
Mass 0.115 kg
0.26 lbs
UPC 4549250166877
Country of Manufacture Japan
