63022RSC3 Koyo Ball Bearing, Rubber Sealed

$10.03

Shipping calculated at checkout

JTEKT Corporation SKU: 6302-2RS Barcode: 4549250166501

30 Day
Return Policy

Ships Fast
in 24 hours

17

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 63022RSC3
Group Deep Groove Ball Bearings

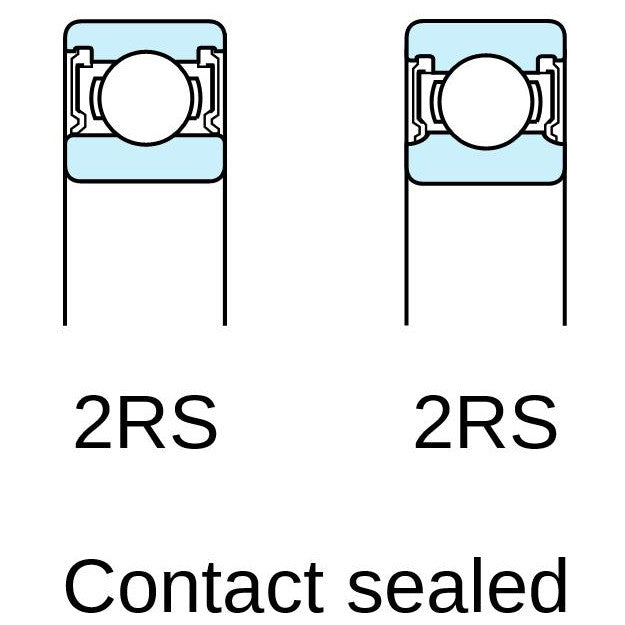

Type Contact Sealed (2RS)

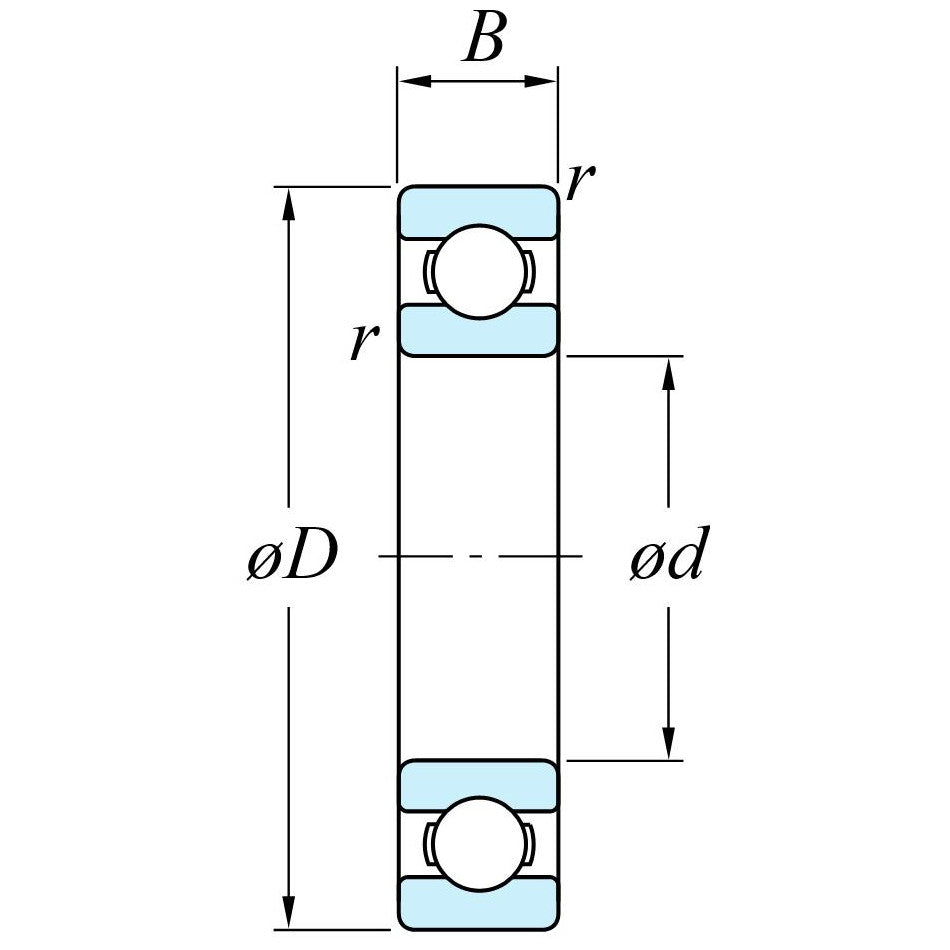

Bore / Inside Diameter (d) 15 mm
Housing / Outside Diameter (D) 42 mm
Width (B) 13 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 11.4 kN
C0r 5.45 kN
Fatigue Load Limit (Cu) 0.460 kN
Factor (f0) 12.3
Limiting Speeds (Grease Lubrication) 15,000 min-1
Shaft Shoulder Mounting Dimension (da) 20 mm Minimum
21.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 37 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.082 kg
0.18 lbs
UPC 4549250166501
Country of Manufacture Japan
