62092RDC3 Koyo Ball Bearing, Rubber Sealed-1
62092RDC3 Koyo Ball Bearing, Rubber Sealed-2
62092RDC3 Koyo Ball Bearing, Rubber Sealed-3
62092RDC3 Koyo Ball Bearing, Rubber Sealed-4

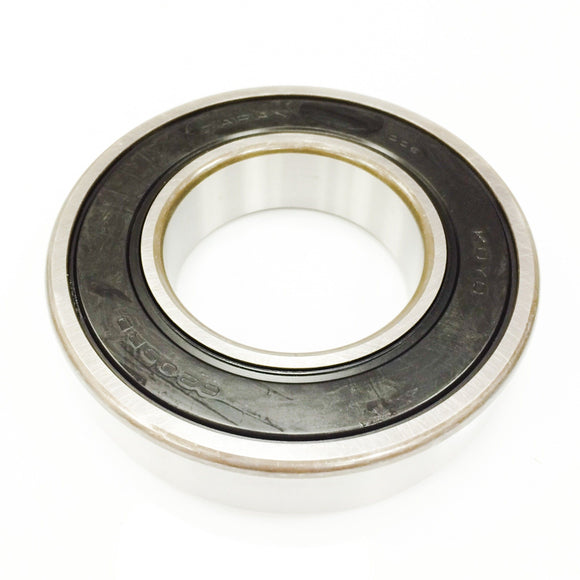

62092RDC3 Koyo Ball Bearing, Rubber Sealed

$37.80 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6209-2RS Barcode: 4549250158971

30 Day
Return Policy

Ships Fast
in 24 hours

7

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62092RDC3
Group Deep Groove Ball Bearings

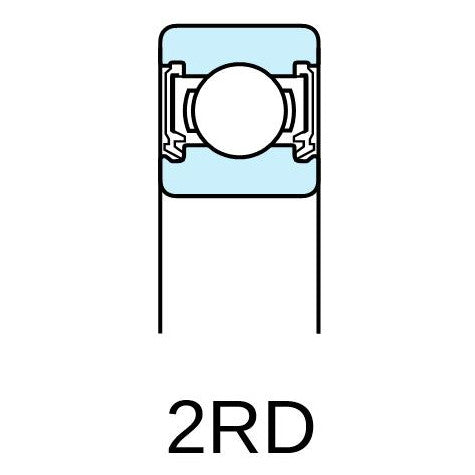

Type Extremely Light Contact Sealed (2RD)

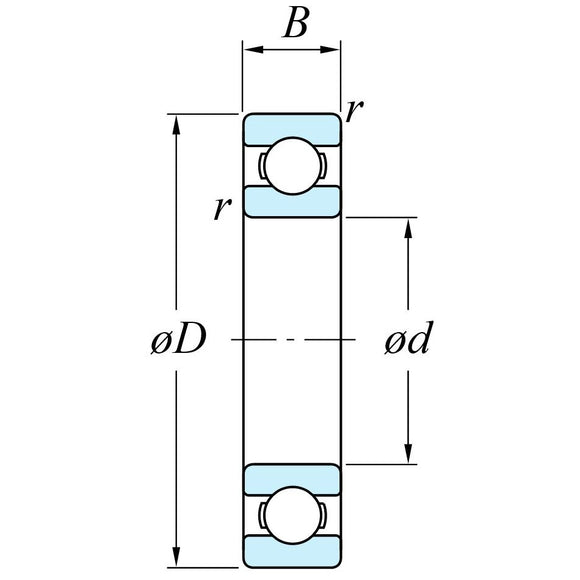

Bore / Inside Diameter (d) 45 mm
Housing / Outside Diameter (D) 85 mm
Width (B) 19 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 32.7 kN
C0r 20.3 kN
Limiting Speeds (Grease Lubrication) 6,900 min-1
Mass 0.407 kg
0.90 lbs
UPC 4549250158971
Country of Manufacture Japan
