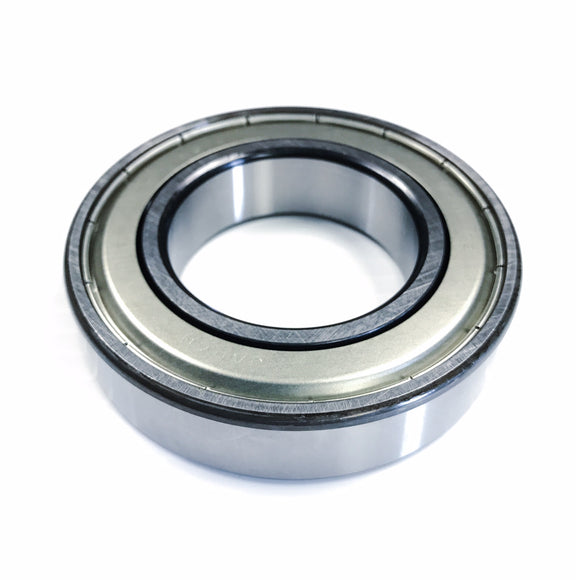

6208ZZC3 Koyo Ball Bearing, Shielded-1
6208ZZC3 Koyo Ball Bearing, Shielded-2

6208ZZC3 Koyo Ball Bearing, Shielded

$24.90

Shipping calculated at checkout

JTEKT Corporation SKU: 6208-ZZC3 Barcode: 4549250158179

30 Day
Return Policy

Ships Fast
in 24 hours

5

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 6208ZZC3
Group Deep Groove Ball Bearings
Type Shielded (ZZ)
Bore / Inside Diameter (d) 40 mm
Housing / Outside Diameter (D) 80 mm
Width (B) 18 mm
Minimum Radius (r) 1.1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 29.1 kN
C0r 17.8 kN
Fatigue Load Limit (Cu) 1.25 kN
Factor (f0) 14.0
Limiting Speeds (Grease Lubrication) 8,300 min-1
Shaft Shoulder Mounting Dimension (da) 46.5 mm Minimum
49 mm Maximum
Housing Shoulder Mounting Dimension (Da) 73.5 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.366 kg
0.81 lbs
UPC 4549250158179
Country of Manufacture Japan
