60082RSC3 Koyo Ball Bearing, Rubber Sealed-1
60082RSC3 Koyo Ball Bearing, Rubber Sealed-2
60082RSC3 Koyo Ball Bearing, Rubber Sealed-3
60082RSC3 Koyo Ball Bearing, Rubber Sealed-4

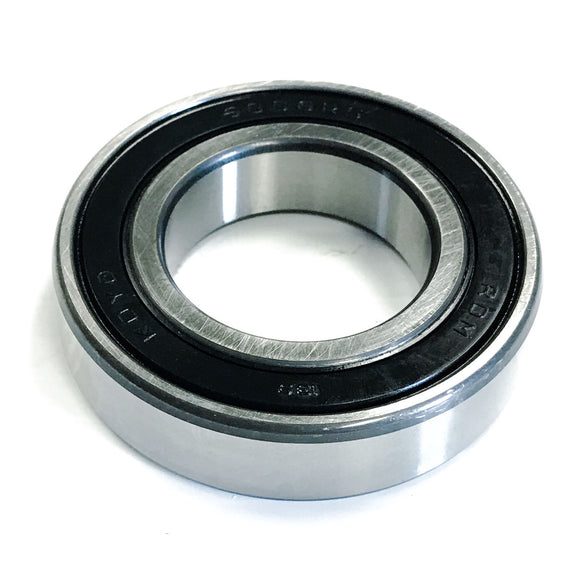

60082RSC3 Koyo Ball Bearing, Rubber Sealed

$24.09 USD $24.27 USD Save $0.18 USD

Shipping calculated at checkout

JTEKT Corporation SKU: 6008-2RS Barcode: 4549250144936

30 Day
Return Policy

Ships Fast
in 24 hours

1

In stock!

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 60082RSC3
Group Deep Groove Ball Bearings

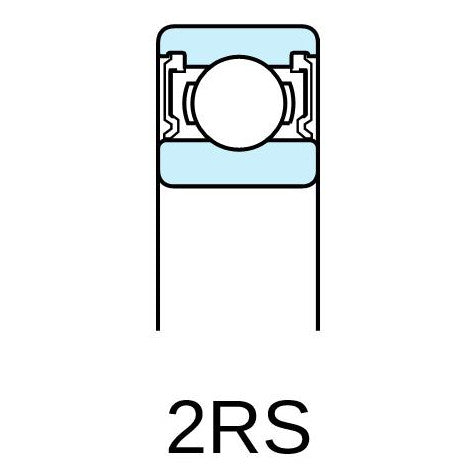

Type Contact Sealed (2RS)

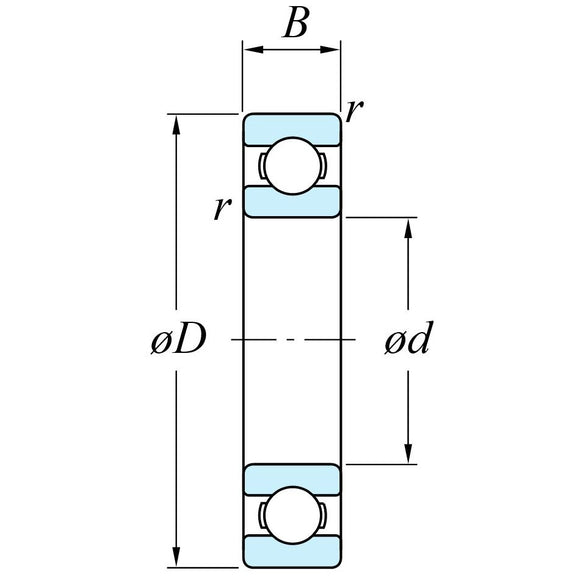

Bore / Inside Diameter (d) 40 mm
Housing / Outside Diameter (D) 68 mm
Width (B) 15 mm
Minimum Radius (r) 1 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 16.7 kN
C0r 11.5 kN
Fatigue Load Limit (Cu) 0.690 kN
Factor (f0) 15.2
Limiting Speeds (Grease Lubrication) 5,800 min-1
Shaft Shoulder Mounting Dimension (da) 45 mm Minimum
46.5 mm Maximum
Housing Shoulder Mounting Dimension (Da) 63 mm Maximum
Shoulder Radius (ra) 1 mm Maximum
Mass 0.192 kg
0.43 lbs
UPC 4549250144936
Country of Manufacture Japan
