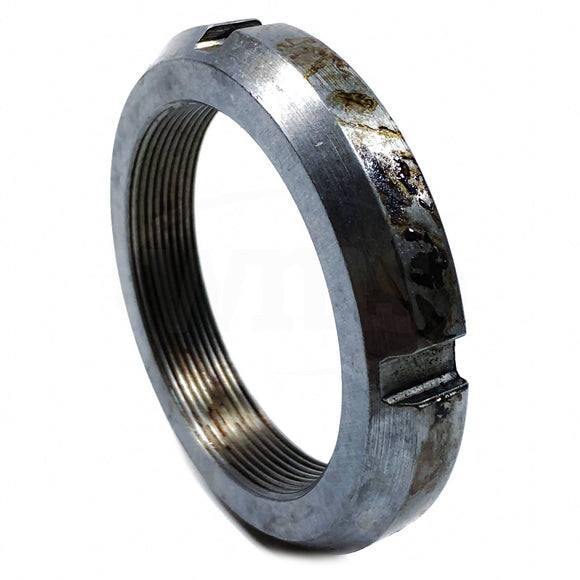

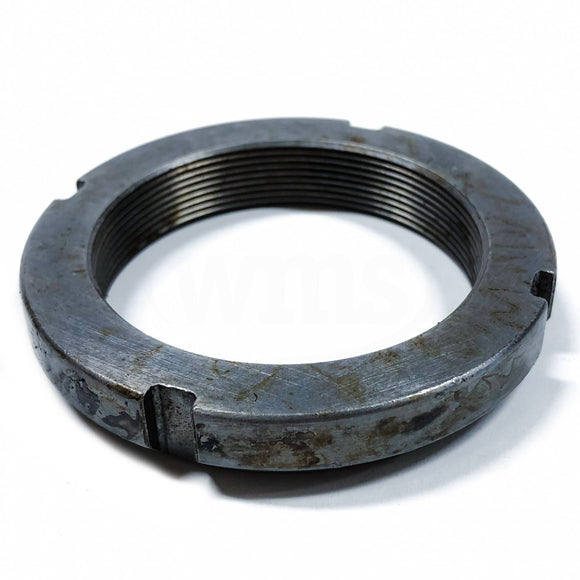

N-12 Bearing Retaining Nut

$12.56 USD

Shipping calculated at checkout

Witmer Motor Service SKU: N-12

30 Day
Return Policy

Ships Fast
in 24 hours

Description Product Specs Manufacturer

Specifications

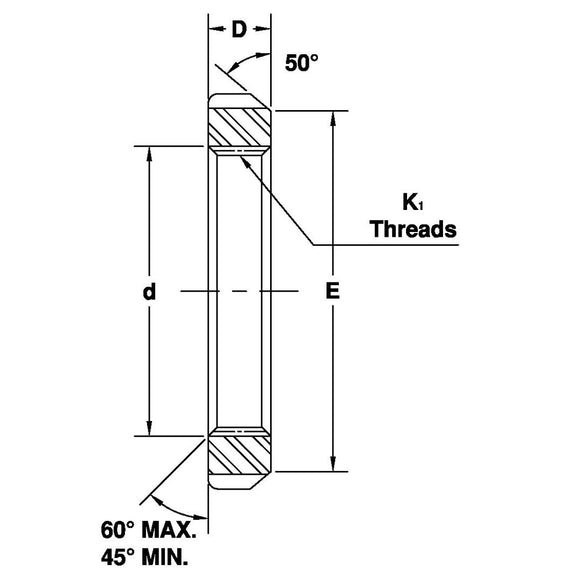

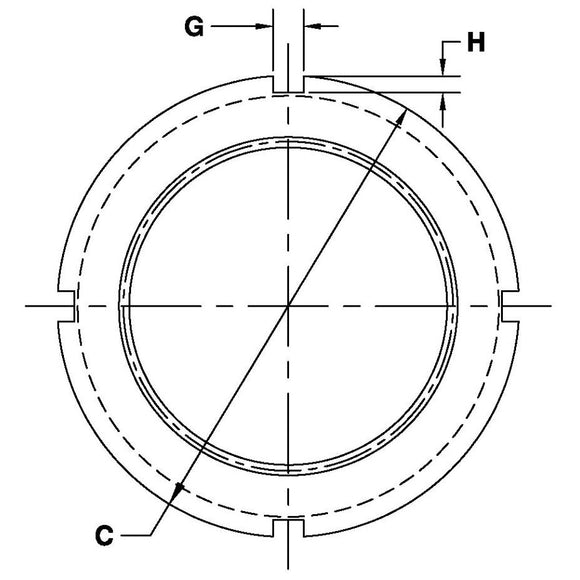

Bearing Retainer Nut Number(s) N12
N-12
Major Diameter (d) 2.360" Minimum
Threads Per Inch (K1) 18
Outside Diameter (C) 3.156"
Face Diameter (E) 2.844" Maximum
Nut Width (D) 0.541" Maximum
Slot Width (G) 0.240" Maximum
Slot Depth (H) 0.135" Maximum
Face Runout (Sd) 0.004” Maximum
Weight 0.47 lbs
Axial Load 37,000 lbs
Bearing Retainer Lock Washer W-12
