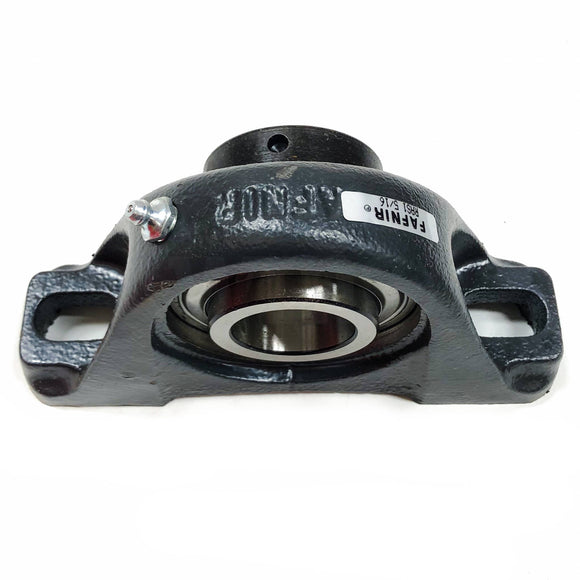

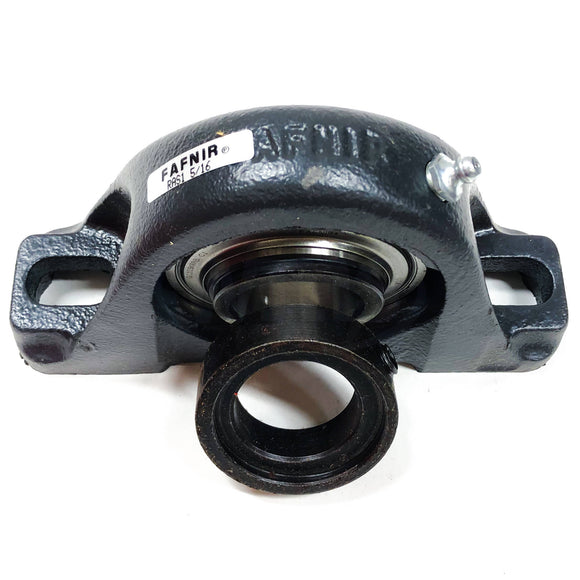

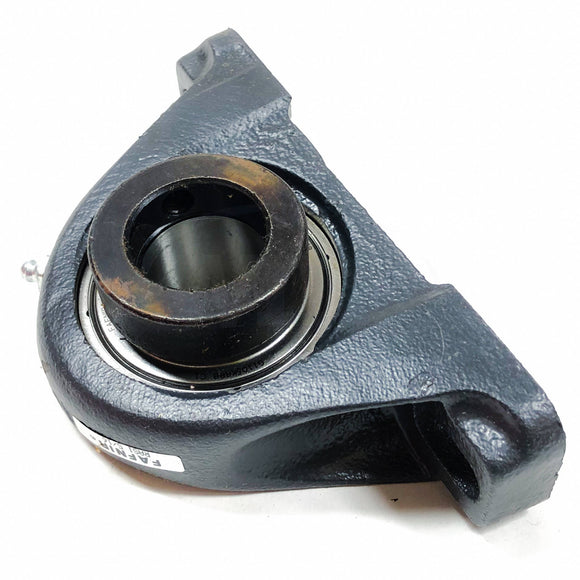

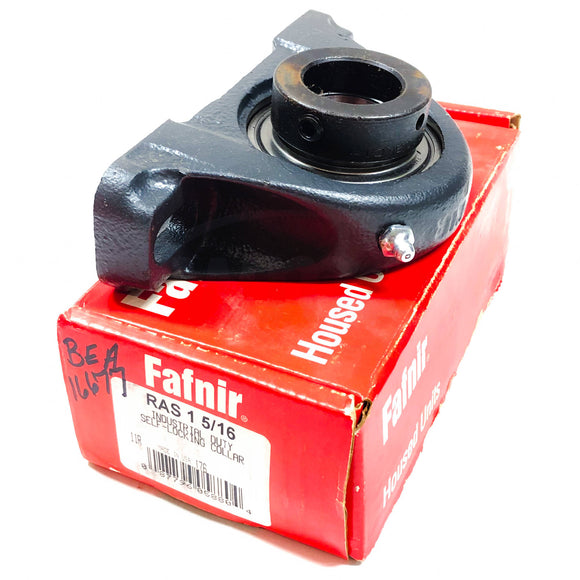

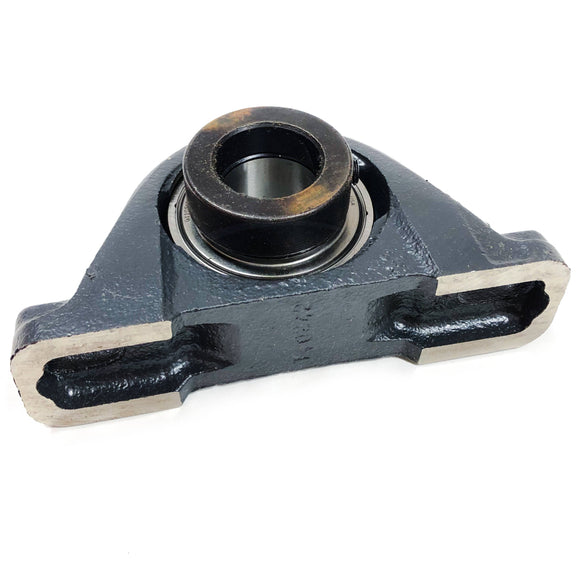

RAS1-5/16 Fafnir Self-Locking Collar Pillow Block, 1-5/16"

$149.97 USD

Shipping calculated at checkout

Fafnir Bearing SKU: RAS1-5/16 Barcode: 087796058804

30 Day
Return Policy

Ships Fast
in 24 hours

New, Surplus Stock. Industrial Duty, Cast Iron

4 In Stock!

Description Product Specs Manufacturer




Specifications













































Shaft Size d



1 5/16 in33.3 mm


Bearing Type



Ball Bearing


Bearing Number



G1105KRRB


Dimension T



0.921 in23.4 mm


Series



Industrial


Weight



4.167 lb1.89 Kg


Seal Type



Shroud Seal


Housing Construction



Two-Bolt Pillow Block


Alternate Part Name



RAS1 5/16

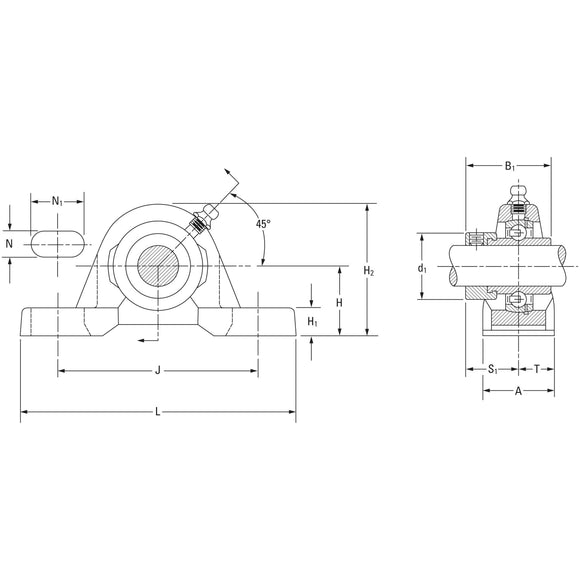

Dimensions

























































Base to Center Height H



47.63 mm1.875 in


Total Length L



166.7 mm6.563 in


Total Width A



1.843 in46.8 mm


Bolt Hole Spacing J



130.2 mm5.126 in


Bolt Hole Width N



14.3 mm0.563 in


Bolt Hole Length N1



24.6 mm0.969 in


Foot Height H1



18.3 mm


Total Height H2



95.3 mm3.752 in


Dimension L1



55.6 mm2.189 in


Inside Ring Width B



N/A


Center of Bearing from End S



18.7 mm0.736 in


Dimension B1



2.016 in51.2 mm






Basic Load Ratings

















Static Load Rating



3440 lbf15300 N


Dynamic Load Rating



6400 lbf28500 N
