Specifications

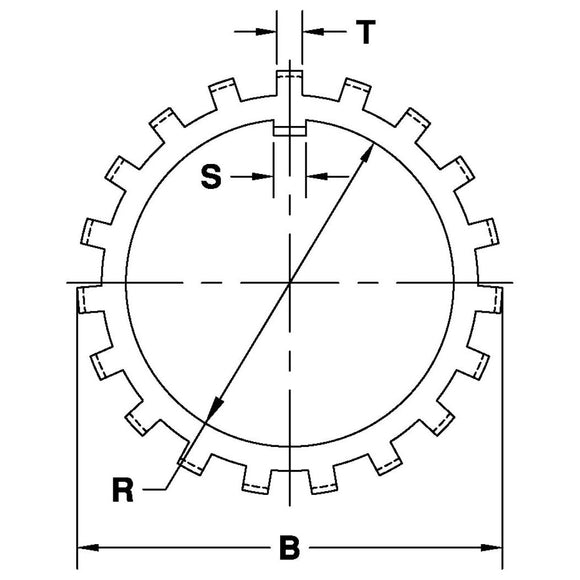

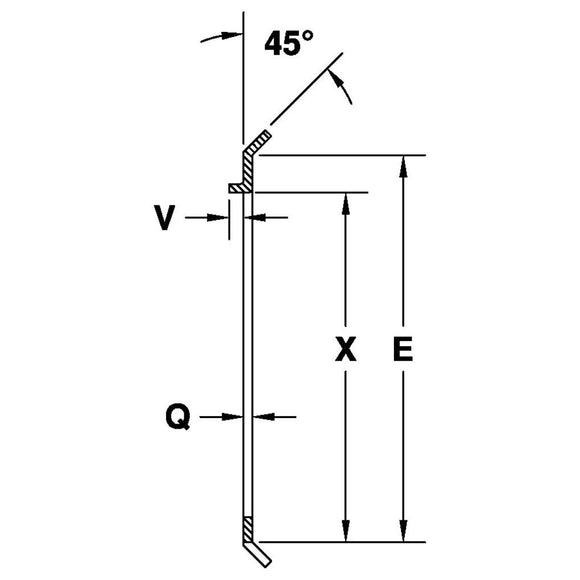

| Lockwasher Number(s) | W-12 W12 |
|---|---|
| Bore (R) | 2.400" Minimum |
| Face Diameter (E) | 2.844" Minimum |
| Diameter over Tangs (B) | 3.344" Maximum |
| Key Width (S) | 0.290" Maximum |
| Inside Dimension (X) | 2.267" Minimum |
| Number of Tangs | 17 |
| Projection (V) | 0.125" Minimum |
| Tang Width (T) | 0.234" Maximum |
| Tang Thickness (Q) | 0.053" Minimum |
| Tang Angle | 45° |
| Applicable Weight | .048 lbs |
| Bearing Retainer Nut | N-12 |
