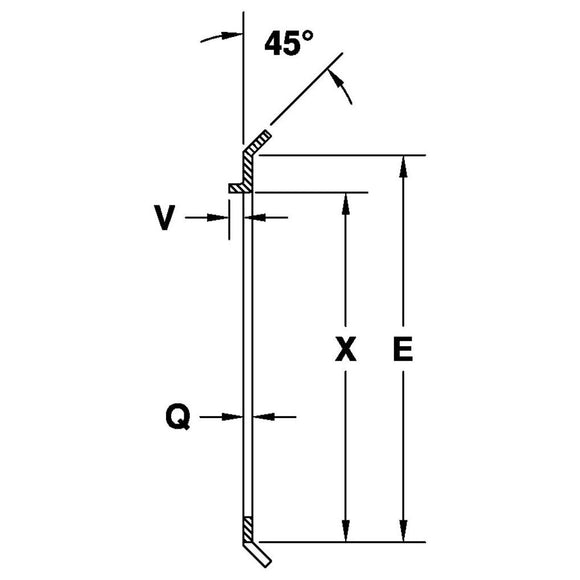

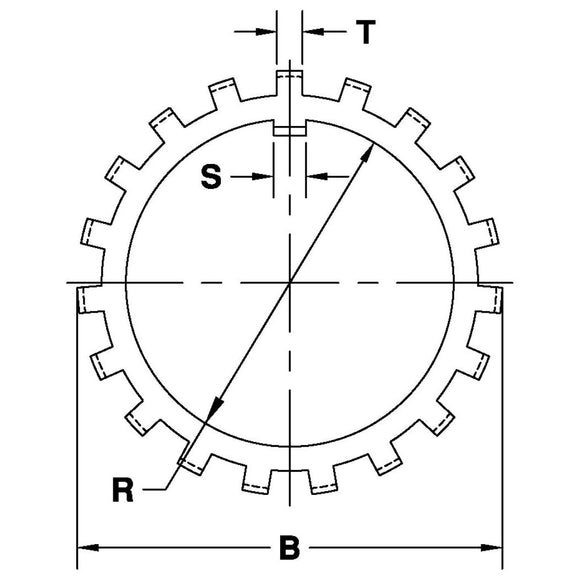

Specifications
| Lockwasher Number(s) | W-06 W06 |
|---|---|
| Bore (R) | 1.193" Minimum |
| Face Diameter (E) | 1.500" Minimum |
| Diameter over Tangs (B) | 1.922" Maximum |
| Key Width (S) | 0.176" Maximum |
| Inside Dimension (X) | 1.093" Minimum |
| Number of Tangs | 13 |
| Projection (V) | 0.094" Minimum |
| Tang Width (T) | 0.166" Maximum |
| Tang Thickness (Q) | 0.040" Minimum |
| Tang Angle | 45° |
| Applicable Weight | 0.015 lbs |
| Bearing Retainer Nut | N-06 |
