Specifications
| Brand | KBC Bearings (AST Bearing) |
|---|---|
| Manufacturer Part Number | 6005DDC3G81 |
| Group | Deep Groove Ball Bearings |
| Type | Rubbing Seals on Both Sides (DD) |
| Bore / Inside Diameter (d) | 25 mm |
| Housing / Outside Diameter (D) | 47 mm |
| Width (B) | 12 mm |
| Minimum Radius (r) | 0.6 mm |
| Operating Temperature | 120°C |
| Cage Type | Pressed Steel Cage |
| Configuration | Single-row |
| Standards | KS B 2023 |
| Allowable Misalignment | Low Loads: 2’… 6’ High Loads: 5’… 10’ |
| Basic Load Rating | Cr 10,100 N (1030 kgf) C0r 5,800 N (591 kgf) |
| Limiting Speeds (Grease Lubrication) | 9,500 min-1 |
| Weight | 0.08 kg 0.18 lbs |
| Ball Qty | 10 |
| Ball Diameter | 6.35 mm |

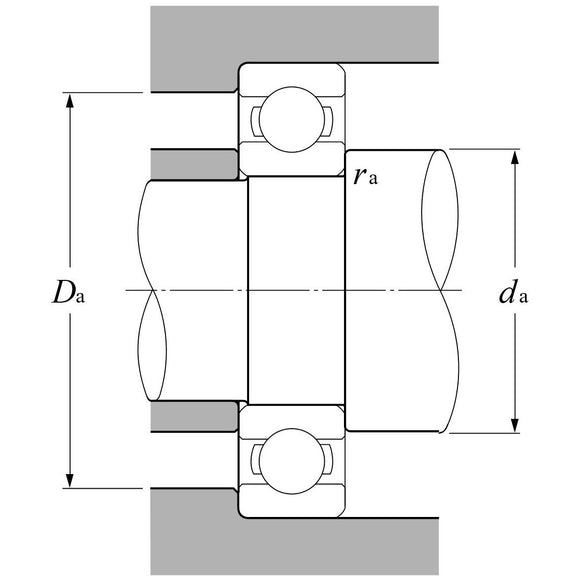

| Shaft Abutment Dimension (da) | 28 mm Minimum |
| Housing Abutment Dimension (Da) | 43.5 mm Maximum |
| Abutment Radius (ra) | 0.6 mm Maximum |
| Precision | A1 |
| Standard Clearance | C0 |
| Material | 52100 Chrome Steel (or equivalent) |
| Country of Manufacture | Korea |
