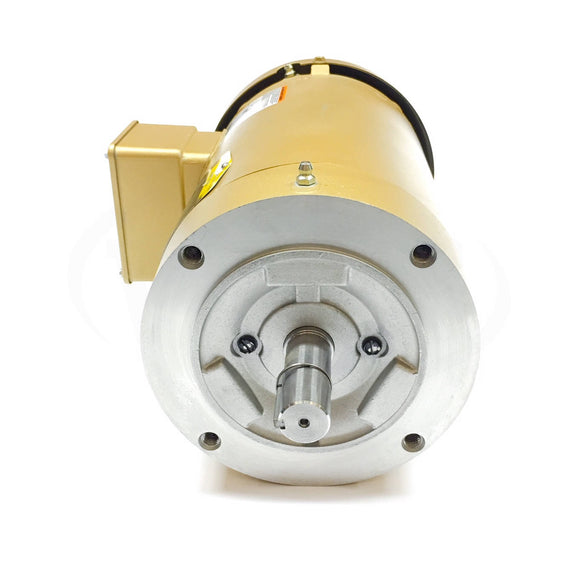

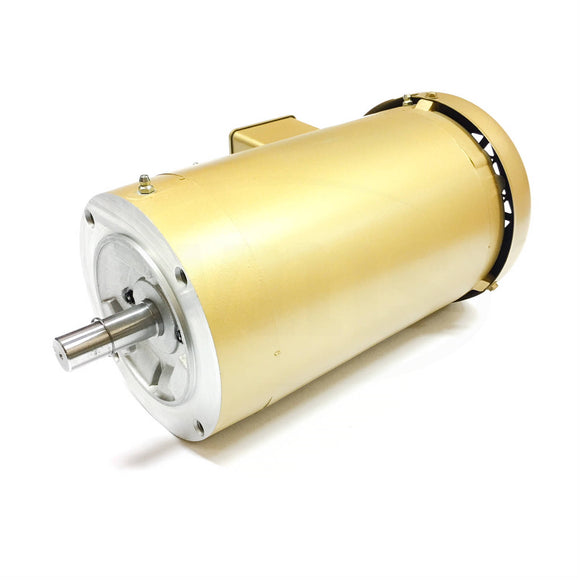

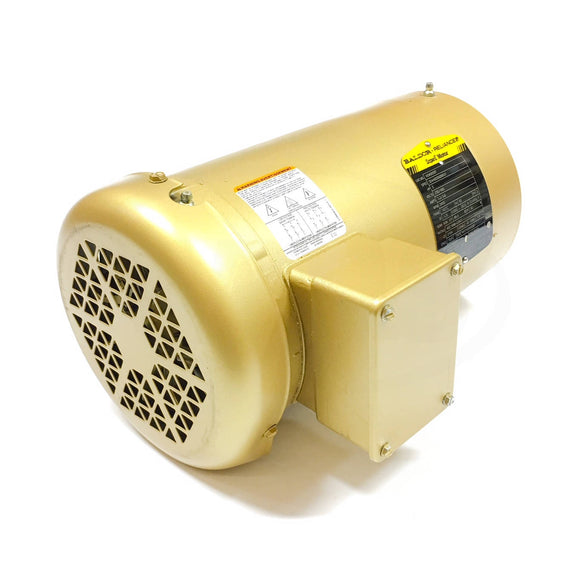

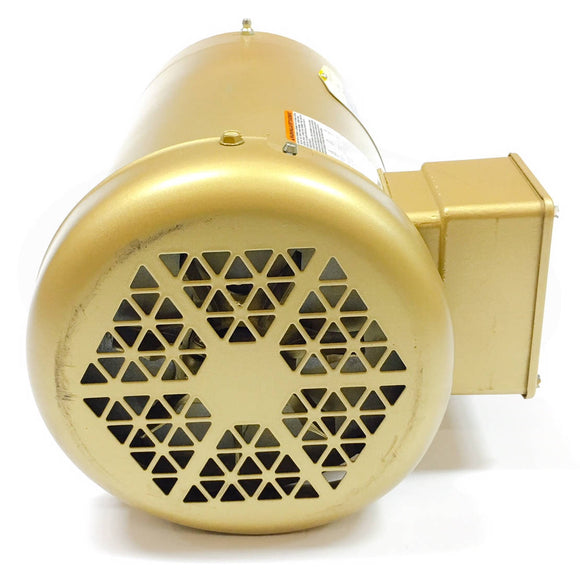

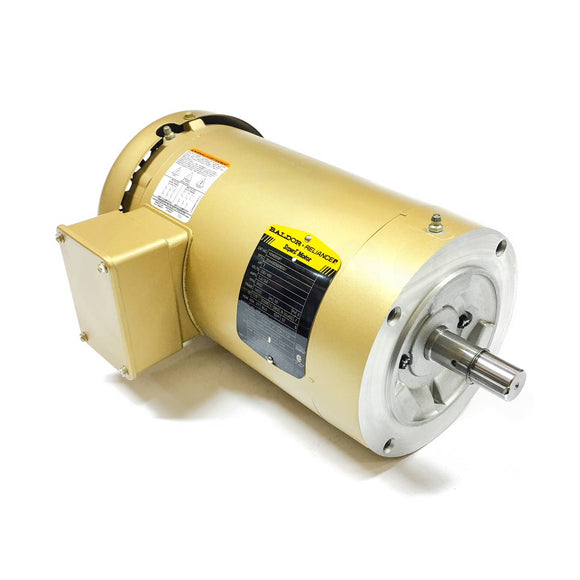

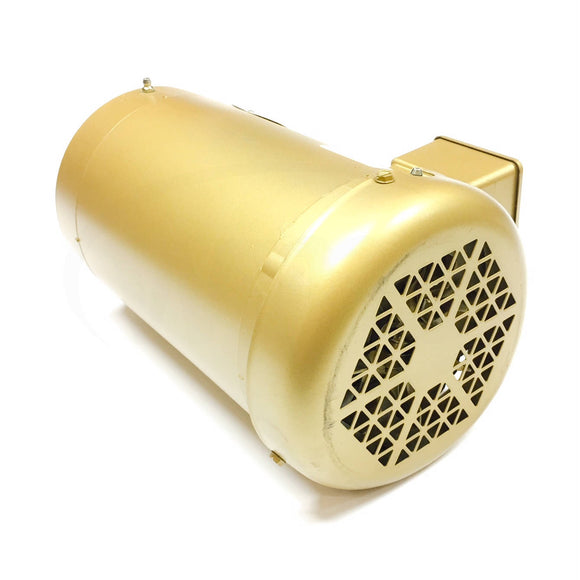

VEM3559T Baldor 3HP Electric Motor, 3450RPM

$982.18 USD

Shipping calculated at checkout

Baldor Electric Company SKU: VEM3559T Barcode: 781568820643

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 145TC Frame, 230/460V 3-Phase 60Hz, 3532M

Description Product Specs Manufacturer

Specifications

Specs

Output3.000 hp
Phase3
Synchronous Speed3,600 rpm
Frequency60.00 Hz
Voltage460 V
230 V
Frame MaterialSteel
Frame145TC
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current7.9 A @ 208 V
7.2 A @ 230 V
3.6 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load86.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps3.6 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3532M
Number of Poles2
Overall Length14.17 in
Power Factor92
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.15
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed3,450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

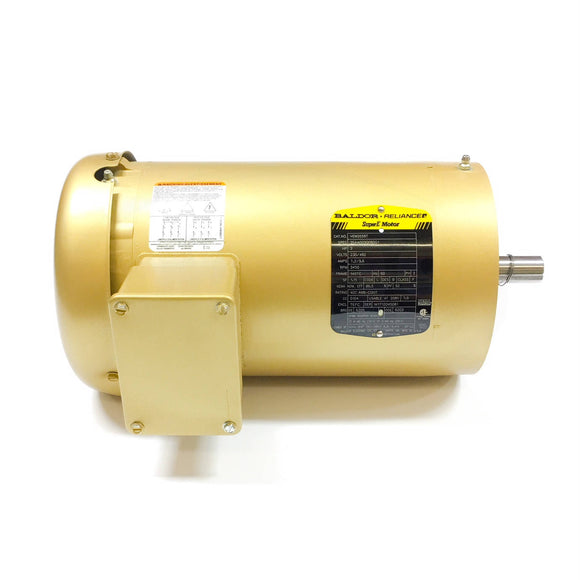

Nameplate

Nameplate

CAT.NO. VEM3559T
SPEC 35AA003Q060G1
HP 3
VOLTS 230/460
AMPS 7.2/3.6
RPM 3450
FRAME 145TC HZ 60 PH 3
SF 1.15 CODE L DES B CLASS F
NEMA NOM. EFF 86.5 PF 92
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 7.9
ENCL TEFC SER
DE 6205 ODE 6203
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 3HP 190/380V 8.8/4.4A SF1.0
NP3441LUA

Performance

Performance

Performance at 460 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C4.72 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load61° C
Temp. Rise @ S.F. Load76° C
Start ConfigurationDOL
Break-Down Torque18 LB-FT
Pull-Up Torque11 LB-FT
Locked-Rotor Torque16 LB-FT
Starting Current33 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 11.0 62.0 81.0 88.0 92.0 93.0 94.0 93.0
Efficiency 0.0 83.7 87.9 88.2 87.2 85.6 83.5 86.2
Speed (RPM) 3,599 3,562 3,531 3,498 3,462 3,421 3,375 3,437
Line Amps 1.20 1.50 2.10 2.80 3.60 4.50 5.40 4.10

Performance Curves

Performance at 230 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.17 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load61° C
Temp. Rise @ S.F. Load73° C
Start ConfigurationDOL
Break-Down Torque18 LB-FT
Pull-Up Torque11 LB-FT
Locked-Rotor Torque16 LB-FT
Starting Current66 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 11.0 57.0 77.0 85.0 88.0 89.0 90.0 89.0
Efficiency 0.0 84.1 87.9 88.4 87.2 85.7 83.5 86.3
Speed (RPM) 3,599 3,562 3,531 3,498 3,462 3,421 3,375 3,437
Line Amps 2.40 3.00 4.20 5.60 7.20 9.00 10.80 8.28

Performance Curves

  • 230VAC
  • 460VAC
  • Electric Motor
  • 145TC
  • TEFC
  • 3-Phase
  • 3HP
  • 3450RPM
  • Gold
