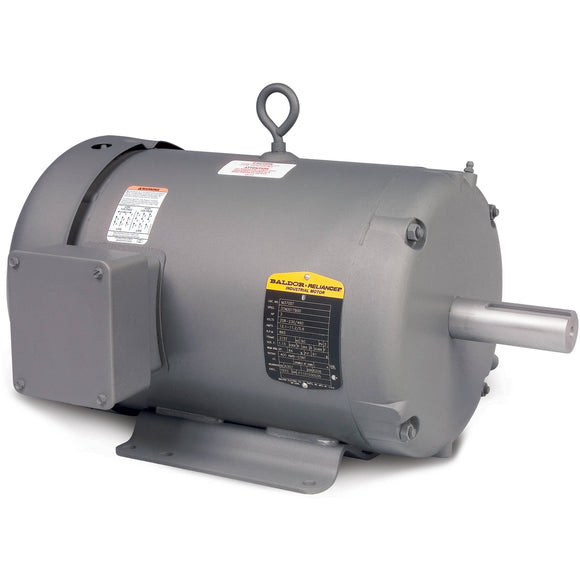

M3535 Baldor 1/3HP Electric Motor, 1200RPM

$652.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: M3535 Barcode: 781568101858

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56 Frame, 230/460V 3-Phase 60Hz

Description Product Specs Manufacturer

Specifications

Specs

Output0.330 hp
Phase3
Synchronous Speed1,200 rpm
Frequency60.00 Hz
Voltage460 V
230 V
Frame MaterialSteel
Frame56
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current2.1 A @ 208 V
1.8 A @ 230 V
0.9 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load70.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps0.9 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3414M
Number of Poles6
Overall Length11.35 in
Power Factor51
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.35
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,140 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. M3535
SPEC. 34A61-5883
HP .33
VOLTS 230/460
AMP 1.8/.9
RPM 1140
FRAME 56 HZ 60 PH 3
SER.F. 1.35 CODE K DES B CLASS B
NEMA-NOM-EFF 70 PF 51
RATING 40C AMB-CONT
CC USABLE AT 208V 2.1
DE 6203 ODE 6203
ENCL TEFC SN
SFA 2/1
NP1256L

Performance

Performance

Performance at 460 V, 60 Hz, 0.33 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C58.3 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load46° C
Temp. Rise @ S.F. Load58° C
Start ConfigurationDOL
Break-Down Torque5.5 LB-FT
Pull-Up Torque4.2 LB-FT
Locked-Rotor Torque4.45 LB-FT
Starting Current3.65 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 10.0 19.0 30.0 42.0 51.0 58.0 64.0 62.0
Efficiency 0.0 44.0 58.0 66.0 70.0 71.0 72.0 71.0
Speed (RPM) 1,198 1,185 1,170 1,155 1,135 1,120 1,095 1,110
Line Amps 0.75 0.75 0.80 0.85 0.90 0.95 1.05 1.00
