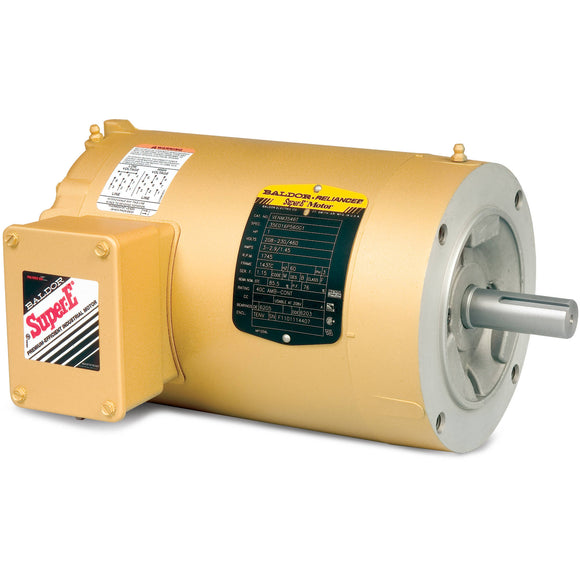

KENM3534 Baldor 1/3HP Electric Motor, 1750RPM

$679.43 USD

Shipping calculated at checkout

Baldor Electric Company SKU: KENM3534 Barcode: 781568503164

30 Day
Return Policy

Ships Fast
in 24 hours

TENV, 56C Frame, 230/460VAC 60Hz 3 Phase, 3512M, Rolled Steel, C-Face, Footless, 5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberKENM3534
EnclosureTENV
Frame56C
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency.330 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage.550 A @ 460.0 V
1.100 A @ 230.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load80.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps0.6 a
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeM
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Type3512M
Mounting ArrangementF1
Number of Poles4
Overall Length11.06 IN
Power Factor70
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusROHS COMPLIANT
Service Factor1.15
Shaft Diameter0.625 IN
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1750 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Fans
  • Pumps
  • Blowers
  • Conveyors
  • Compressors
  • Industrial machines
  • Other general purpose applications

Features

  • Footless design reduces weight and improves safety
  • Locked DE bearing to allow mounting in any configuration
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2
  • Designed for longevity with a 3 year warranty on premium efficient Super-E® motors

Nameplate

Nameplate

CAT.NO. KENM3534
SPEC. 35E010N563G1
HP .33
VOLTS 230/460
AMP 1.1/.55
RPM 1750
FRAME 56C HZ 60 PH 3
SER.F. 1.15 CODE M DES B CL F
NEMA-NOM-EFF 80 PF 70
RATING 40C AMB-CONT
CC USABLE AT 208V
DE 6205 ODE 6203
ENCL TENV SN
NP2116L
  • Electric Motor
  • 56C
  • TENV
  • 3-Phase
  • 1/3HP

Baldor Electric Company
