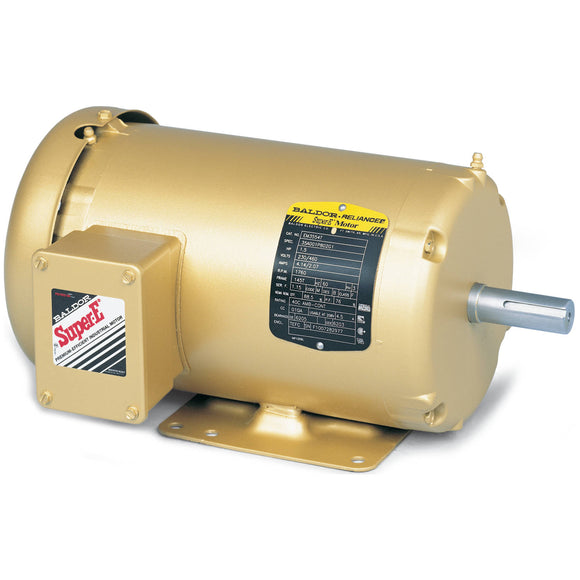

EM3616T Baldor 7.5HP Electric Motor, 3600RPM

$1,547.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM3616T Barcode: 781568540930

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 184T Frame, 230/460V 3-Phase 60Hz, 3646M, Foot Mounted

Description Product Specs Manufacturer

Specifications

Specs

Output7.500 hp
Phase3
Synchronous Speed3,600 rpm
Frequency60.00 Hz
Voltage230 V
460 V
Frame MaterialSteel
Frame184T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current18.5 A @ 208 V
16.8 A @ 230 V
8.4 A @ 460 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load89.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps8.4 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeL
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 16 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3646M
Number of Poles2
Overall Length18.05 in
Power Factor93
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.125 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed3,450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. EM3616T
SPEC 36G271S428G1
HP 7.5
VOLTS 230/460
AMPS 16.8/8.4
RPM 3450
FRAME 184T HZ 60 PH 3
SF 1.15 CODE L DES A CLASS F
NEMA NOM. EFF 89.5 PF 93
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 18.5
ENCL TEFC SER
DE 6206 ODE 6205
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 7.5HP 190/380V 21/10.5A SF1.0
NP3441LUA

Performance

Performance

Performance at 460 V, 60 Hz, 7.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.43 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load74° C
Temp. Rise @ S.F. Load92° C
Start ConfigurationDOL
Break-Down Torque57.9 LB-FT
Pull-Up Torque39.9 LB-FT
Locked-Rotor Torque48.2 LB-FT
Starting Current91 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 10.0 64.0 85.0 90.0 93.0 94.0 94.0 94.0
Efficiency 0.0 86.9 90.6 91.0 90.1 88.8 86.5 89.3
Speed (RPM) 3,595 3,571 3,539 3,505 3,468 3,429 3,385 3,445
Line Amps 2.33 3.14 4.59 6.43 8.43 10.50 12.90 9.67

Performance Curves

  • 230VAC
  • 460VAC
