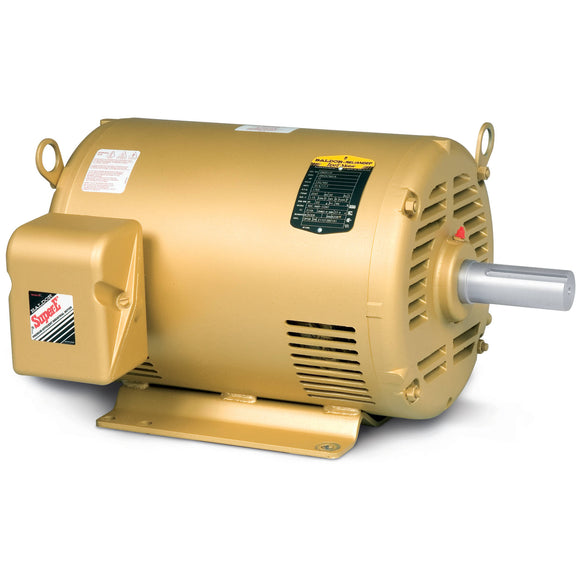

EM2524T Baldor 15HP Electric Motor, 1180RPM

$3,662.49 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM2524T Barcode: 781568104873

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 284T Frame, 230/460VAC 60Hz 3-Phase, 4038M, Foot Mounted, Rolled Steel, 1-7/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberEM2524T
EnclosureOPSB
Frame284T
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency15.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1200 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage42.000 A @ 208.0 V
41.000 A @ 230.0 V
20.500 A @ 460.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load91.7 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps20.5 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
IP RatingNONE
KVA CodeG
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 10 AWG
Motor Type4038M
Mounting ArrangementF1
Number of Poles6
Overall Length23.81 IN
Power Factor75
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.875 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1180 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Fans
  • Pumps
  • Blowers
  • Conveyors
  • Compressors
  • Industrial machines
  • Other general purpose applications

Features

  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2
  • Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
  • Optimized airflow design providing higher horsepower in a smaller package

Nameplate

Nameplate

CAT.NO. EM2524T P/N ENCLOSURE OPSB
SPEC. 40G048X775 CC 010A FRAME 284T S/N
HP 15 CLASS F HZ 60
RPM 1180 PH 3 DES B
VOLT 230/460 KVA-CODE G ODE BRG 6309 DE BRG 6311
AMP 41/20.5 USABLE AT 208V 42
RATING 40C AMB-CONT GREASE POLYREX EM
NEMA-NOM-EFF 91.7 PF 75 SER.F. 1.15
50Hz 15Hp 190/380V 48/24A SF 1.0
HTR-VOLTS HTR-AMPS
NP2138LUA

Performance

Performance

Performance at 460 V, 60 Hz, 15 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.67748 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load26° C
Temp. Rise @ S.F. Load31° C
Start ConfigurationDOL
Break-Down Torque185 LB-FT
Pull-Up Torque87.7 LB-FT
Locked-Rotor Torque105 LB-FT
Starting Current116 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 5.0 37.0 58.0 69.0 75.0 78.0 79.0 77.0
Efficiency 0.0 85.5 90.7 91.8 91.8 91.2 89.9 91.4
Speed (RPM) 1,199 1,196 1,192 1,188 1,183 1,178 1,170 1,180
Line Amps 10.10 11.10 13.40 16.60 20.40 24.80 30.70 23.00

Performance Curves

  • 230VAC
  • 460VAC
  • Electric Motor
  • 284T
  • ODP
  • 3-Phase
  • 15HP
  • 1180RPM
