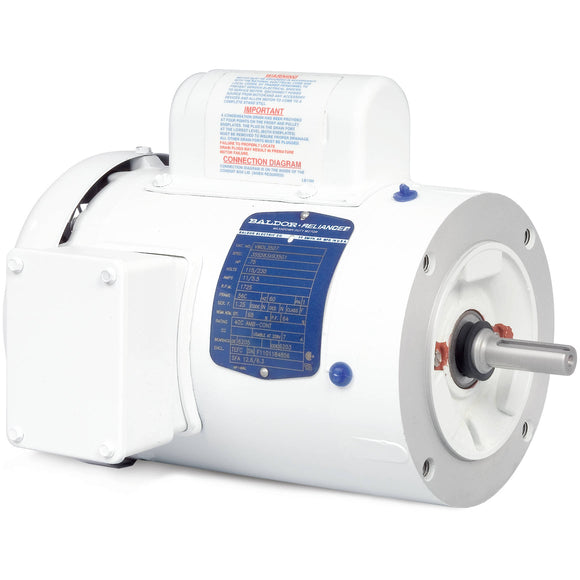

VWDL3504 Baldor 1/2HP Washdown Electric Motor, 1725RPM

$704.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: VWDL3504 Barcode: 781568155035

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 56C Frame, 115/230VAC 60Hz Single Phase, Rolled Steel, Round Body, C-Face, 5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberVWDL3504
EnclosureTEFC
Frame56C
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency.500 HP @ 60 HZ
Phase1
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency115.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePolyrex EM (-20F +300F)
Current @ Voltage3.700 A @ 230.0 V
4.100 A @ 208.0 V
7.400 A @ 115.0 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load68.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps3.7 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeNot Inverter
KVA CodeM
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Type3520L
Mounting ArrangementF1
Number of Poles4
Overall Length12.25 IN
Power Factor65
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.25
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1725 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. VWDL3504
SPEC. 35S583N406G1
HP .5
VOLTS 115/230
AMP 7.4/3.7
RPM 1725
FRAME 56C HZ 60 PH 1
SER.F. 1.25 CODE M DES N CLASS F
NEMA-NOM-EFF 68 PF 65
RATING 40C AMB-CONT
CC USABLE AT 208V 4.1
DE 6205 ODE 6203
ENCL TEFC SN
SFA 8.2/4.1
NP1496L

Performance

Performance

Performance at 230 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C4.0781 Ohms A Ph / 2.4038 Ohms B Ph
Temp. Rise @ Rated Load67° C
Temp. Rise @ S.F. Load80° C
Start ConfigurationDOL
Break-Down Torque4.62 LB-FT
Pull-Up Torque3.69 LB-FT
Locked-Rotor Torque5.49 LB-FT
Starting Current22.6 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 34.0 46.0 56.0 65.0 71.0 76.0 71.0
Efficiency 0.0 41.6 57.1 64.6 68.0 69.0 69.0 69.0
Speed (RPM) 1,798 1,783 1,772 1,760 1,746 1,730 1,714 1,730
Line Amps 2.89 2.95 3.09 3.35 3.69 4.10 4.61 4.10

Performance Curves

Performance at 115 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.06 Ohms A Ph / 2.39 Ohms B Ph
Temp. Rise @ Rated Load67° C
Temp. Rise @ S.F. Load79° C
Start ConfigurationDOL
Break-Down Torque4.62 LB-FT
Pull-Up Torque3.69 LB-FT
Locked-Rotor Torque5.49 LB-FT
Starting Current45.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 20.0 34.0 46.0 56.0 65.0 72.0 76.0 72.0
Efficiency 0.0 41.5 57.1 64.8 68.0 69.2 69.0 69.2
Speed (RPM) 1,798 1,783 1,772 1,760 1,746 1,731 1,715 1,731
Line Amps 5.78 5.90 6.18 6.70 7.38 8.20 9.22 8.20

Performance Curves

  • 115VAC
  • 230VAC
  • Electric Motor
  • 56C
  • TEFC
  • Single Phase
  • 1/2HP
  • 1725RPM
