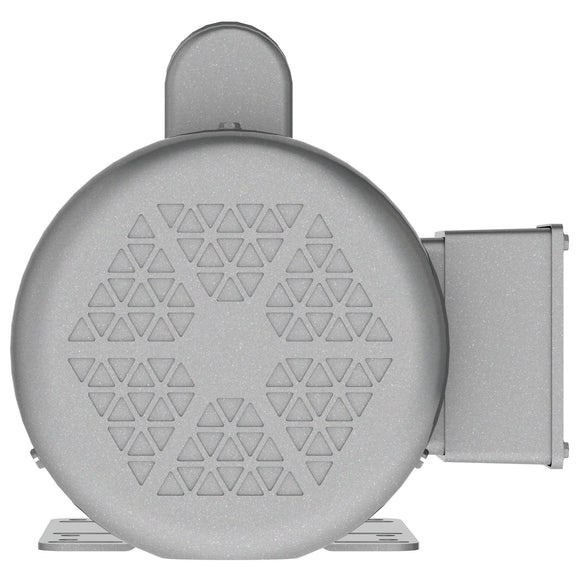

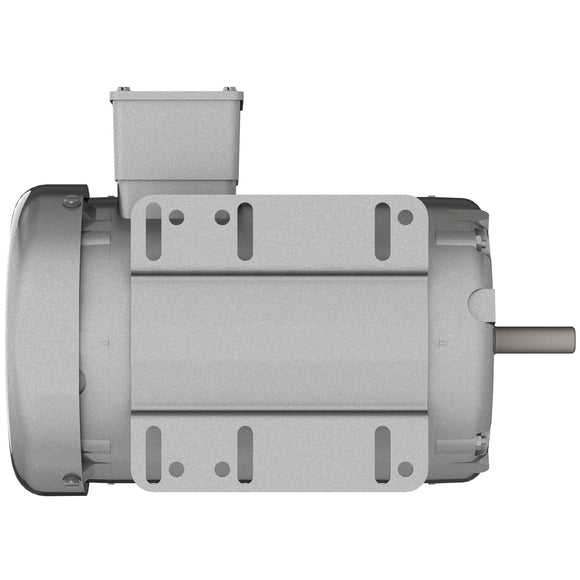

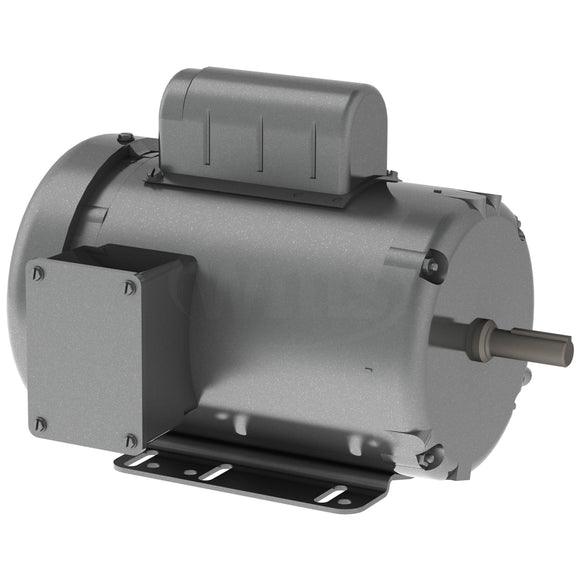

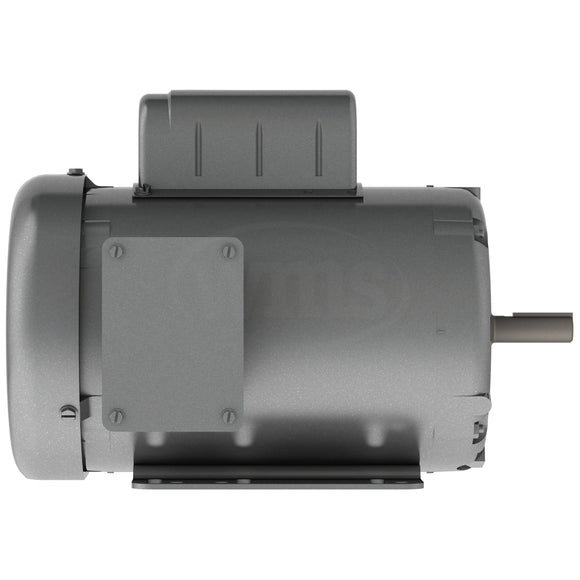

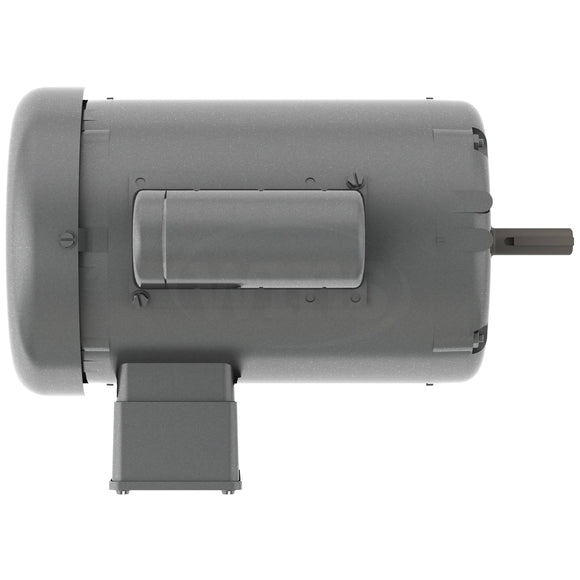

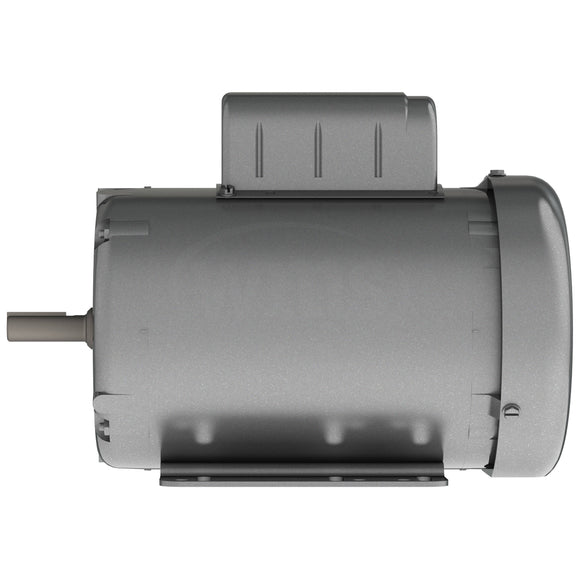

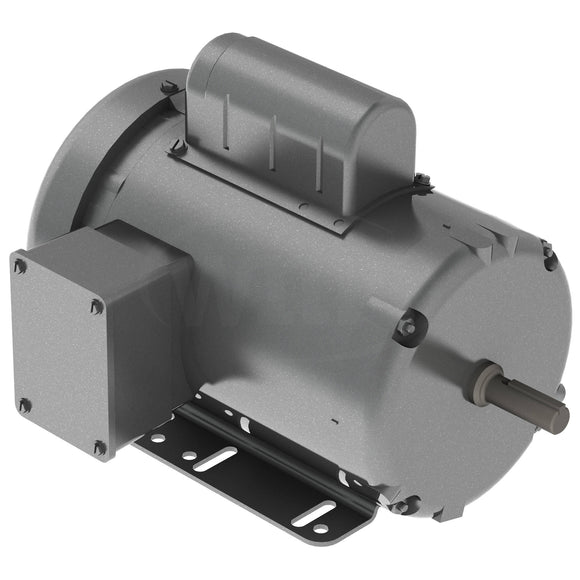

Specifications
Specs
Output1.000 hp
Phase1
Synchronous Speed3,600 rpm
Frequency60.00 Hz
Voltage115 V
230 V
230 V
Frame MaterialSteel
Frame56/56H
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current11.8 A @ 115 V
6.1 A @ 208 V
5.9 A @ 230 V
6.1 A @ 208 V
5.9 A @ 230 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load68.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps5.9 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size4 @ 16 AWG, A PH
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3520L
Number of Poles2
Overall Length12.93 in
Power Factor82
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.25
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed3,450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNONE (OLD)
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None
Applications
- Air Handling
- Material Handling
- Machine Tools
- Conveyors
- Pumps
- Fans
Features
- Low noise vibration dampening base
- Dynamically balanced rotor to increase bearing life
- Superior switch design provides optimized torque profiles
- Robust heavy gauge steel design
Nameplate
Nameplate
| CAT.NO. | L3509 | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 35J383X964 | |||||||||||||||||||||||||||||
| HP | 1 | |||||||||||||||||||||||||||||
| VOLTS | 115/230 | |||||||||||||||||||||||||||||
| AMP | 11.8/5.9 | |||||||||||||||||||||||||||||
| RPM | 3450 | |||||||||||||||||||||||||||||
| FRAME | 56/56H | HZ | 60 | PH | 1 | |||||||||||||||||||||||||
| SER.F. | 1.25 | CODE | K | DES | N | CLASS | B | |||||||||||||||||||||||
| NEMA-NOM-EFF | 68 | PF | 82 | |||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||||||||||||
| CC | USABLE AT 208V | 6.1 | ||||||||||||||||||||||||||||
| DE | 6205 | ODE | 6203 | |||||||||||||||||||||||||||
| ENCL | TEFC | SN | ||||||||||||||||||||||||||||
| SFA 14/7 | ||||||||||||||||||||||||||||||
| NP1256L | ||||||||||||||||||||||||||||||
Performance
Performance
Performance at 230 V, 60 Hz, 1 hp
Typical performance; not guaranteed values.General Characteristics
Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2 Ohms A Ph / 1.77 Ohms B Ph
Temp. Rise @ Rated Load72° C
Temp. Rise @ S.F. Load90° C
Start ConfigurationDOL
Break-Down Torque4.25 LB-FT
Pull-Up Torque3.5 LB-FT
Locked-Rotor Torque4.75 LB-FT
Starting Current38 A
Load Characteristics
| Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 30.0 | 47.0 | 64.0 | 72.0 | 80.0 | 84.0 | 86.0 | 84.0 |
| Efficiency | 0.0 | 50.0 | 61.0 | 67.0 | 68.0 | 67.0 | 64.5 | 67.0 |
| Speed (RPM) | 3,590 | 3,560 | 3,525 | 3,485 | 3,450 | 3,400 | 3,340 | 3,400 |
| Line Amps | 3.20 | 3.50 | 4.20 | 5.00 | 5.90 | 7.00 | 8.40 | 7.00 |
