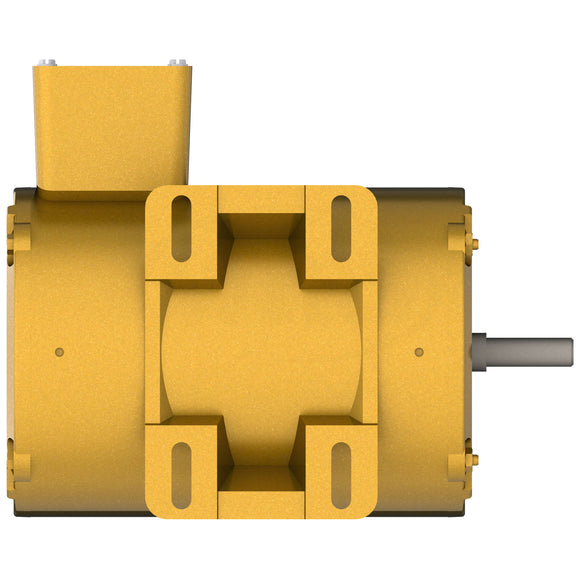

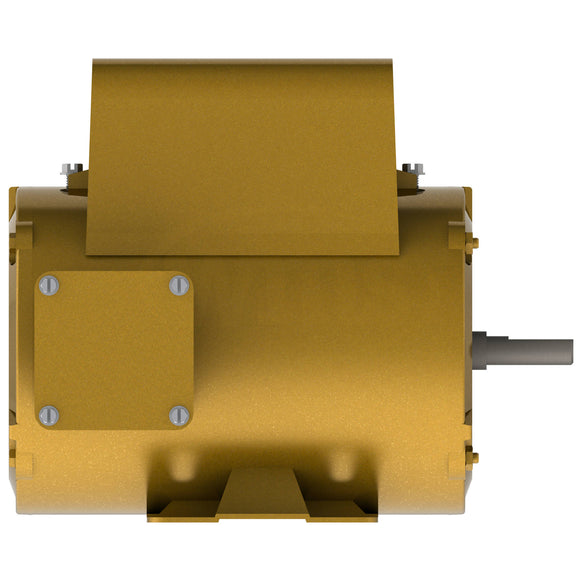

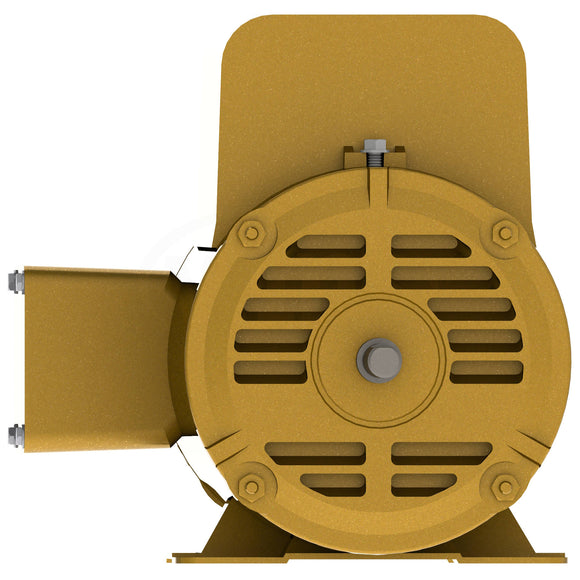

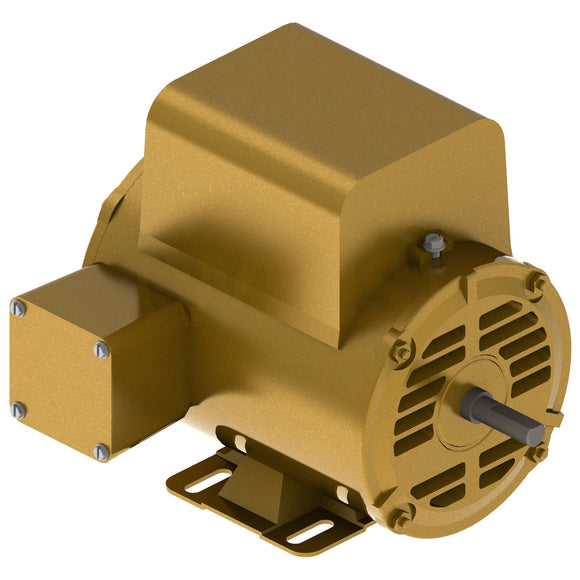

EL11209 Baldor 1/2HP Electric Motor, 1725RPM

$560.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EL11209 Barcode: 781568763322

30 Day
Return Policy

Ships Fast
in 24 hours

Open, 48 Frame, 115/208-230VAC 60Hz Single Phase, 3413LC, Foot Mounted, Rolled Steel, 34F868R141G1, 1/2" Shaft

Description Product Specs Manufacturer

Specifications

Specs

Output0.500 hp
Phase1
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage115 V
230 V
Frame MaterialSteel
Frame48
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current4.7 A @ 115 V
3.2 A @ 208 V
2.4 A @ 230 V
Design CodeN
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load76.2%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps2.4 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeK
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3424LC
Number of Poles4
Overall Length10.63 in
Power Factor98
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.25
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,725 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Gear reducers
  • Material handling
  • Machine tools
  • Conveyors
  • Pumps
  • Fans

Features

  • Locked DE bearing to allow mounting in any configuration
  • Low noise vibration dampening base
  • Dynamically balanced rotor to increase bearing life
  • Superior switch design provides optimized torque profiles
  • Robust heavy gauge steel design

Nameplate

Nameplate

CAT.NO. EL11209
SPEC. 34F868R141G1
HP .5
VOLTS 115/230
AMP 4.7/2.35
RPM 1725
FRAME 48 HZ 60 PH 1
SER.F. 1.25 CODE K DES N CL B
F.L. AVG. EFF. 76.2 PF 98
RATING 40C AMB-CONT
CC USABLE AT 208V 3.2
DE 6203 ODE 6203
ENCL OPEN SN
SFA 5.9/2.95
NP3155L

Performance

Performance

Performance at 115 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C1.6786 Ohms A Ph / 2.0496 Ohms B Ph
Temp. Rise @ Rated Load37° C
Temp. Rise @ S.F. Load55° C
Start ConfigurationDOL
Break-Down Torque4.01 LB-FT
Pull-Up Torque3.75 LB-FT
Locked-Rotor Torque6.42 LB-FT
Starting Current31.9 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 72.0 89.0 94.0 95.0 95.0 95.0 94.0 95.0
Efficiency 0.0 59.9 73.0 76.8 76.6 73.3 67.1 73.3
Speed (RPM) 1,798 1,783 1,768 1,749 1,727 1,694 1,648 1,694
Line Amps 1.06 1.56 2.34 3.34 4.39 5.80 7.69 5.80

Performance Curves

Performance at 230 V, 60 Hz, 0.5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C6.38 Ohms A Ph / 2.09 Ohms B Ph
Temp. Rise @ Rated Load40° C
Temp. Rise @ S.F. Load53° C
Start ConfigurationDOL
Break-Down Torque4.01 LB-FT
Pull-Up Torque2.84 LB-FT
Locked-Rotor Torque4.87 LB-FT
Starting Current14.97 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 73.0 89.0 93.0 95.0 96.0 95.0 94.0 95.0
Efficiency 0.0 57.8 71.3 75.5 75.6 72.6 66.9 72.6
Speed (RPM) 1,798 1,783 1,768 1,749 1,727 1,694 1,648 1,694
Line Amps 0.57 0.81 1.20 1.70 2.22 2.93 3.87 2.93

Performance Curves

  • 115VAC
  • 208VAC
  • 230VAC
  • Electric Motor
  • 48
  • Open
  • Single Phase
  • 1/2HP
  • 1725RPM

Baldor Electric Company
