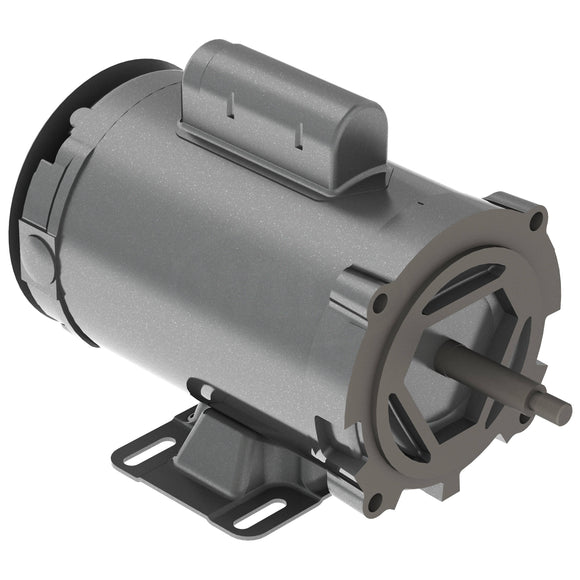

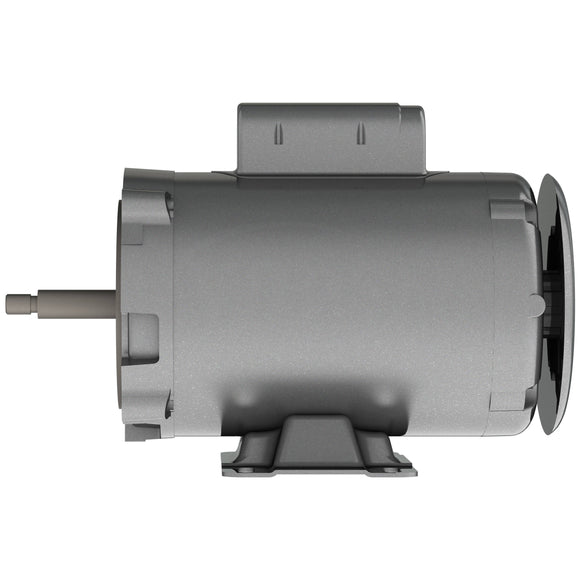

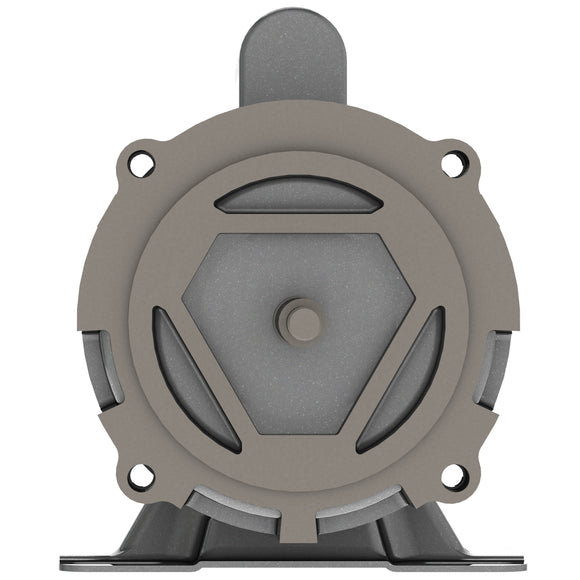

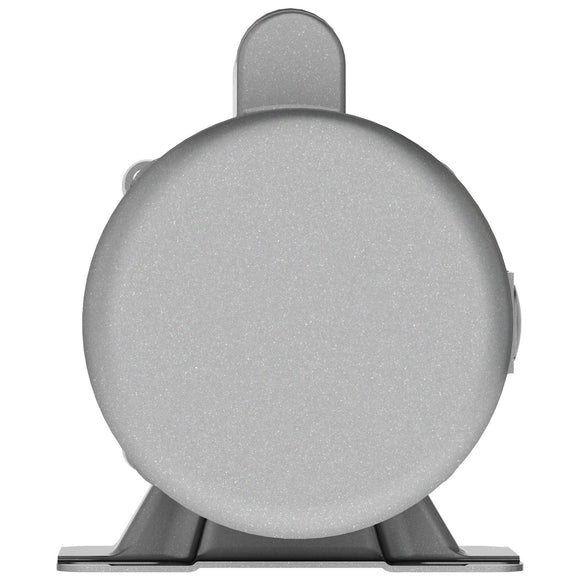

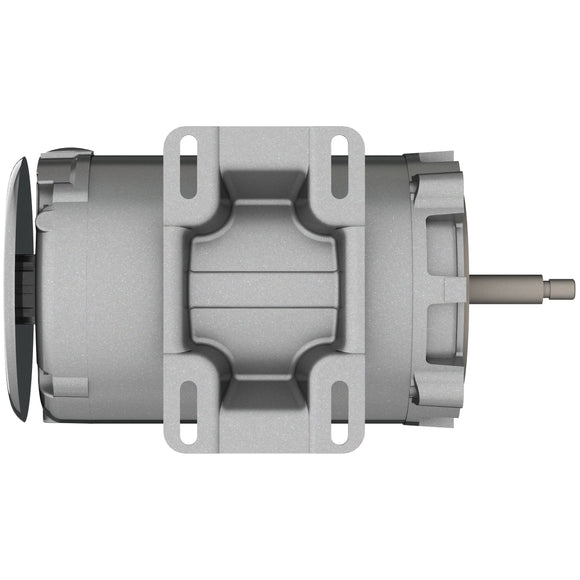

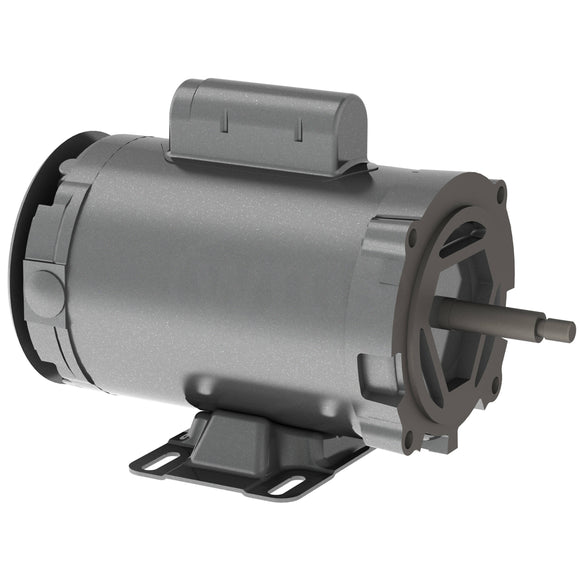

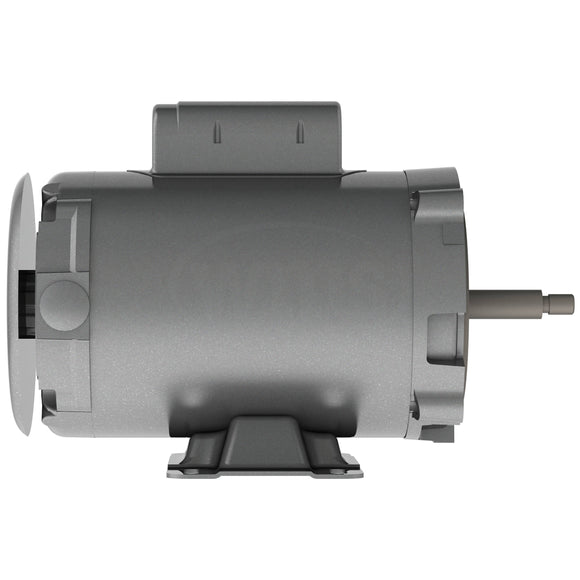

Specifications
Specs
Output0.750 hp
Phase1
Synchronous Speed3,600 rpm
Frequency60.00 Hz
Voltage230 V
115 V
115 V
Frame MaterialSteel
Frame56J
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current11.0 A @ 115 V
5.5 A @ 230 V
5.5 A @ 230 V
Design CodeN
Drip CoverDrip Cover
Duty RatingCONT
Efficiency @ 100% Load69.0%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeDrip Cover Mounting
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps5.5 A
Insulation ClassB
Inverter CodeNot inverter
KVA CodeJ
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitTerminal Panel or Lead Hole
Motor Lead Quantity/Wire Size5 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3424L
Number of Poles2
Overall Length13.39 in
Power Factor68
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorExt Thread
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.50
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationFixed Opposite Standard
Shaft Slinger IndicatorNo Slinger
Speed3,450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1Automatic Thermal Overload
Winding Thermal 1 LocationES
Winding Thermal 2None
Applications
Features
Nameplate
Nameplate
| CAT.NO. | CJL1306A | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 34F492-2414G1 | |||||||||||||||||||||||||||||
| HP | .75 | |||||||||||||||||||||||||||||
| VOLTS | 115/230 | |||||||||||||||||||||||||||||
| AMP | 11/5.5 | |||||||||||||||||||||||||||||
| RPM | 3450 | |||||||||||||||||||||||||||||
| FRAME | 56J | HZ | 60 | PH | 1 | |||||||||||||||||||||||||
| SER.F. | 1.50 | CODE | J | DES | N | CL | B | |||||||||||||||||||||||
| NEMA-NOM-EFF | 69 | PF | 68 | |||||||||||||||||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||||||||||||
| CC | USABLE AT 208V | |||||||||||||||||||||||||||||
| DE | 6203 | ODE | 6203 | |||||||||||||||||||||||||||
| ENCL | OPEN | SN | ||||||||||||||||||||||||||||
| SFA 13/6.5 | ||||||||||||||||||||||||||||||
| NP1257L | ||||||||||||||||||||||||||||||
Performance
Performance
Performance at 230 V, 60 Hz, 0.75 hp
Typical performance; not guaranteed values.General Characteristics
Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2.33 Ohms A Ph / 1.65 Ohms B Ph
Temp. Rise @ Rated Load75° C
Temp. Rise @ S.F. Load108° C
Start ConfigurationDOL
Break-Down Torque3.98 LB-FT
Pull-Up Torque1.63 LB-FT
Locked-Rotor Torque2.45 LB-FT
Starting Current31.2 A
Load Characteristics
| Rated Load | 0% | 25% | 50% | 75% | 100% | 125% | 150% | S.F. |
|---|---|---|---|---|---|---|---|---|
| Power Factor | 22.0 | 39.0 | 52.0 | 64.0 | 73.0 | 79.0 | 83.0 | 85.0 |
| Efficiency | 0.0 | 41.7 | 57.6 | 65.5 | 69.2 | 69.8 | 69.3 | 70.4 |
| Speed (RPM) | 3,599 | 3,558 | 3,536 | 3,508 | 3,479 | 3,447 | 3,410 | 3,415 |
| Line Amps | 3.70 | 3.78 | 4.00 | 4.40 | 4.91 | 5.61 | 6.37 | 6.31 |
Performance Curves
