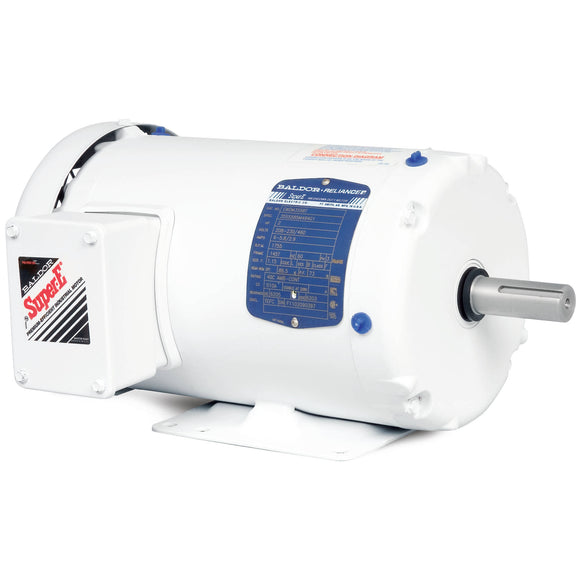

EWDM3558T Baldor 2HP Washdown Electric Motor, 1800RPM

$1,434.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EWDM3558T Barcode: 781568457542

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 145T Frame, 230/460V 3-Phase 60Hz, 3528M, Foot Mounted

Description Product Specs Manufacturer

Specifications

Specs

Output2.000 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage230 V
460 V
Frame MaterialSteel
Frame145T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current6.6 A @ 208 V
5.8 A @ 230 V
2.9 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load86.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps2.9 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3528M
Number of Poles4
Overall Length13.29 in
Power Factor75
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,755 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Food processing
  • Wet environment
  • Conveyors
  • Packaging
  • Pumps and wastewater

Features

  • 300 series stainless steel hardware
  • Neoprene gaskets
  • Double sealed ball bearings
  • Lip and V-Ring seal on DE
  • Electrostatically applied epoxy finish
  • Stainless steel shaft extension
  • 3 year warranty

Nameplate

Nameplate

CAT.NO. EWDM3558T
SPEC. 35SS585N909G1
HP 2
VOLTS 230/460
AMP 5.8/2.9
RPM 1755
FRAME 145T HZ 60 PH 3
SER.F. 1.15 CODE L DES B CLASS F
NEMA-NOM-EFF 86.5 PF 75
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 6.6
DE 6205 ODE 6203
ENCL TEFC SN
BLANK
NP1669L

Performance

Performance

Performance at 460 V, 60 Hz, 2 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C8.02 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load65° C
Temp. Rise @ S.F. Load77° C
Start ConfigurationDOL
Break-Down Torque24.9 LB-FT
Pull-Up Torque15.9 LB-FT
Locked-Rotor Torque17.2 LB-FT
Starting Current23.9 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 33.0 53.0 66.0 74.0 80.0 83.0 78.0
Efficiency 0.0 75.5 84.0 86.3 86.5 85.8 84.5 86.2
Speed (RPM) 1,799 1,790 1,779 1,769 1,756 1,743 1,728 1,748
Line Amps 1.81 1.89 2.11 2.46 2.91 3.40 4.00 3.20

Performance Curves

Performance at 230 V, 60 Hz, 2 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load65° C
Temp. Rise @ S.F. Load77° C
Start ConfigurationDOL
Break-Down Torque24.9 LB-FT
Pull-Up Torque15.9 LB-FT
Locked-Rotor Torque17.2 LB-FT
Starting Current47.8 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 33.0 53.0 66.0 74.0 80.0 83.0 78.0
Efficiency 0.0 75.6 84.1 86.4 86.6 85.9 84.6 86.2
Speed (RPM) 1,799 1,790 1,779 1,769 1,756 1,743 1,728 1,748
Line Amps 3.62 3.78 4.22 4.92 5.82 6.80 8.00 6.41

Performance Curves

Performance at 400 V, 50 Hz, 2 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C8.02 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load85° C
Temp. Rise @ S.F. Load104° C
Start ConfigurationDOL
Break-Down Torque25.8 LB-FT
Pull-Up Torque18.08 LB-FT
Locked-Rotor Torque19.56 LB-FT
Starting Current24.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 8.0 33.0 54.0 67.0 75.0 81.0 84.0 79.0
Efficiency 0.0 74.5 82.9 84.7 84.5 83.2 81.2 83.7
Speed (RPM) 1,499 1,489 1,477 1,466 1,451 1,436 1,419 1,442
Line Amps 2.09 2.18 2.43 2.85 3.39 3.99 4.75 3.75

Performance Curves

  • 230VAC
  • 460VAC
  • Electric Motor
  • 145T
  • TEFC
  • 3-Phase
  • 2HP
  • 1800RPM
  • White
