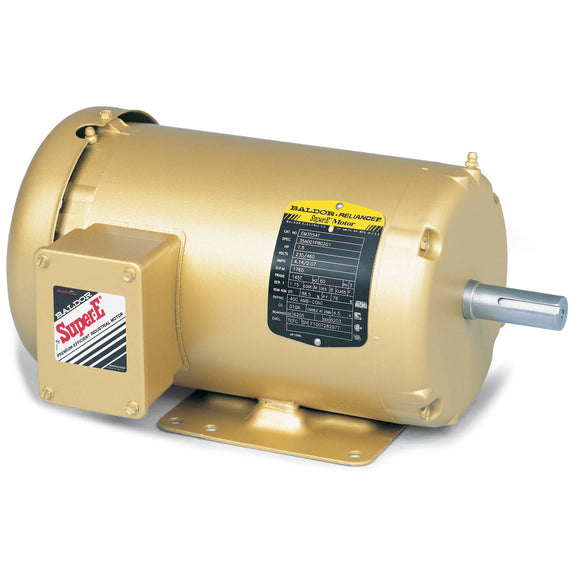

EM3611T Baldor 3HP Electric Motor, 1760RPM

$744.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM3611T Barcode: 781568138960

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 182T Frame, 230/460VAC 60Hz 3 Phase

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberEM3611T
EnclosureTEFC
Frame182T
Frame MaterialSteel
Frequency60.00 Hz
Output @ Frequency3.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
CSA EEV
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage4.200 A @ 460.0 V
8.400 A @ 230.0 V
9.000 A @ 208.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load89.5 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps4.2 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeK
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 16 AWG
Motor Type3632M
Mounting ArrangementF1
Number of Poles4
Overall Length16.55 IN
Power Factor75
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.125 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1760 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Nameplate

Nameplate

CAT.NO. EM3611T
SPEC 36Q570S266G1
HP 3
VOLTS 230/460
AMPS 8.4/4.2
RPM 1760
FRAME 182T HZ 60 PH 3
SF 1.15 CODE K DES B CLASS F
NEMA NOM. EFF 89.5 PF 75
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 9
ENCL TEFC SER
DE 6206 ODE 6205
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 3HP 190/380V 9.6/4.8A SF1.0
NP3441LUA

Performance

Performance

Performance at 460 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C3.81 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load44° C
Temp. Rise @ S.F. Load52° C
Start ConfigurationDOL
Break-Down Torque37.6 LB-FT
Pull-Up Torque15.2 LB-FT
Locked-Rotor Torque21.7 LB-FT
Starting Current32.7 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 35.0 55.0 68.0 75.0 80.0 82.0 77.0
Efficiency 0.0 81.1 87.8 89.6 89.8 89.7 88.2 89.2
Speed (RPM) 1,798 1,791 1,783 1,773 1,764 1,753 1,741 1,754
Line Amps 2.30 2.47 2.85 3.43 4.09 4.89 5.78 4.63

Performance Curves

Performance at 230 V, 60 Hz, 3 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.953 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load44° C
Temp. Rise @ S.F. Load52° C
Start ConfigurationDOL
Break-Down Torque37.6 LB-FT
Pull-Up Torque15.2 LB-FT
Locked-Rotor Torque21.7 LB-FT
Starting Current65.4 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 35.0 55.0 68.0 75.0 80.0 82.0 78.0
Efficiency 0.0 81.1 87.8 89.6 89.8 89.7 88.2 89.7
Speed (RPM) 1,798 1,791 1,783 1,773 1,764 1,753 1,741 1,757
Line Amps 4.60 4.94 5.70 6.86 8.18 9.78 11.60 9.14

Performance Curves
