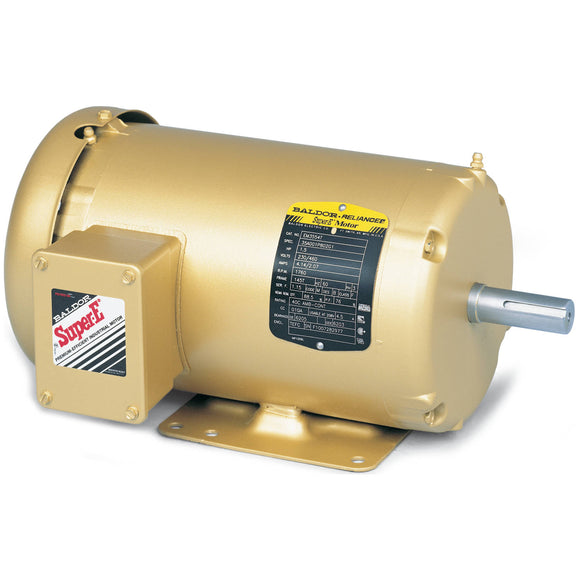

EM3546T Baldor 1HP Electric Motor, 1800RPM

$743.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM3546T Barcode: 781568138861

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 143T Frame, 230/460V 3-Phase 60Hz, Foot Mounted

Description Product Specs Manufacturer

Specifications

Specs

Output1.000 hp
Phase3
Synchronous Speed1,800 rpm
Frequency60.00 Hz
Voltage460 V
230 V
Frame MaterialSteel
Frame143T
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
NEMA PREMIUM
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current3.1 A @ 208 V
3.0 A @ 230 V
1.5 A @ 460 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load85.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps1.5 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 18 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3520M
Number of Poles4
Overall Length12.31 in
Power Factor71
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
RoHS StatusRoHS Compliant
Service Factor1.15
Shaft Diameter0.875 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1,760 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. EM3546T
SPEC 35AA001M492G1
HP 1
VOLTS 230/460
AMPS 3/1.5
RPM 1760
FRAME 143T HZ 60 PH 3
SF 1.15 CODE L DES B CLASS F
NEMA NOM. EFF 85.5 PF 71
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 3.1
ENCL TEFC SER
DE 6205 ODE 6203
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 1HP 190/380V 3.6/1.8A SF1.0
NP3441LUA

Performance

Performance

Performance at 460 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C15 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load36° C
Temp. Rise @ S.F. Load42° C
Start ConfigurationDOL
Break-Down Torque13.5 LB-FT
Pull-Up Torque8.25 LB-FT
Locked-Rotor Torque8.52 LB-FT
Starting Current12.4 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 29.0 46.0 60.0 69.0 75.0 79.0 75.0
Efficiency 0.0 74.2 82.9 85.4 85.8 85.4 84.5 85.4
Speed (RPM) 1,799 1,790 1,781 1,771 1,760 1,749 1,736 1,754
Line Amps 1.07 1.11 1.24 1.39 1.59 1.83 2.11 1.69

Performance Curves

Performance at 230 V, 60 Hz, 1 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C3.75 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load36° C
Temp. Rise @ S.F. Load42° C
Start ConfigurationDOL
Break-Down Torque13.5 LB-FT
Pull-Up Torque8.25 LB-FT
Locked-Rotor Torque8.52 LB-FT
Starting Current24.8 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 29.0 46.0 60.0 69.0 75.0 79.0 74.0
Efficiency 0.0 74.2 82.9 85.4 85.8 85.4 84.5 85.6
Speed (RPM) 1,799 1,790 1,781 1,771 1,760 1,749 1,736 1,754
Line Amps 2.14 2.22 2.48 2.78 3.18 3.66 4.22 1.69

Performance Curves

  • 230VAC
  • 460VAC
  • Electric Motor
  • 143T
  • TEFC
  • 3-Phase
  • 1HP
  • 1800RPM

Baldor Electric Company
