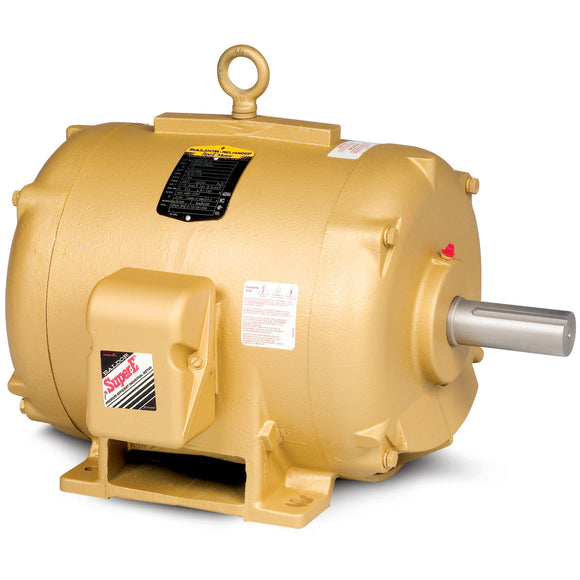

EM2515T-CI Baldor 20HP Electric Motor, 1765RPM

$3,398.60 USD

Shipping calculated at checkout

Baldor Electric Company SKU: EM2515T-CI Barcode: 781568521809

30 Day
Return Policy

Ships Fast
in 24 hours

ODP, 256T Frame, 230/460VAC 60Hz 3-Phase, 0946M, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Description Product Specs Manufacturer

Specifications

Specs

Catalog NumberEM2515T-CI
EnclosureOPEN
Frame256T
Frame MaterialIron
Frequency60.00 Hz
Output @ Frequency20.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
CSA EEV
CSA
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage24.000 A @ 460.0 V
48.000 A @ 230.0 V
49.000 A @ 208.0 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load93.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps24.0 a
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeH
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorNo Locked Bearing
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size9 @ 12 AWG
Motor Type0946M
Mounting ArrangementF1
Number of Poles4
Overall Length22.37 IN
Power Factor84
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1765 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

  • Fans
  • Pumps
  • Blowers
  • Conveyors
  • Compressors
  • Industrial machines
  • Other general purpose applications

Features

  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2
  • Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
  • Optimized airflow design providing higher horsepower in a smaller package

Nameplate

Nameplate

CAT.NO. EM2515T-CI P/N ENCL OPEN
SPEC. 09D001Y363G2 CC 010A FRAME 256T SER.NO.
HP 20 CLASS F HZ 60
RPM 1765 PH 3 DES A
VOLTS 230/460 CODE H ODE BRG 6208 DE BRG 6309
AMPS 48/24 USABLE AT 208V 49
RATING 40C AMB-CONT NEMA-NOM-EFF 93 GREASE POLYREX EM
PF 84 SER.F. 1.15 CT30-60(2:1) VT3-60(20:1)
USABLE AT 50HZ 20HP 190/380V 54/27A SF 1.0
HTR-VOLTS HTR-AMPS MAX. SPACE HEATER TEMP.
NP3554LUA

Performance

Performance

Performance at 460 V, 60 Hz, 20 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.433 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load46° C
Temp. Rise @ S.F. Load56° C
Start ConfigurationDOL
Break-Down Torque190 LB-FT
Pull-Up Torque100 LB-FT
Locked-Rotor Torque110 LB-FT
Starting Current164 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 7.0 52.0 74.0 83.0 87.0 89.0 89.0 88.0
Efficiency 0.0 87.4 91.9 92.8 93.0 92.2 91.4 92.4
Speed (RPM) 1,799 1,792 1,784 1,775 1,767 1,757 1,748 1,761
Line Amps 8.50 10.20 13.70 18.20 23.10 28.50 34.20 26.20

Performance Curves

  • Electric Motor
  • 256T
  • ODP
  • 3-Phase
  • 20HP
