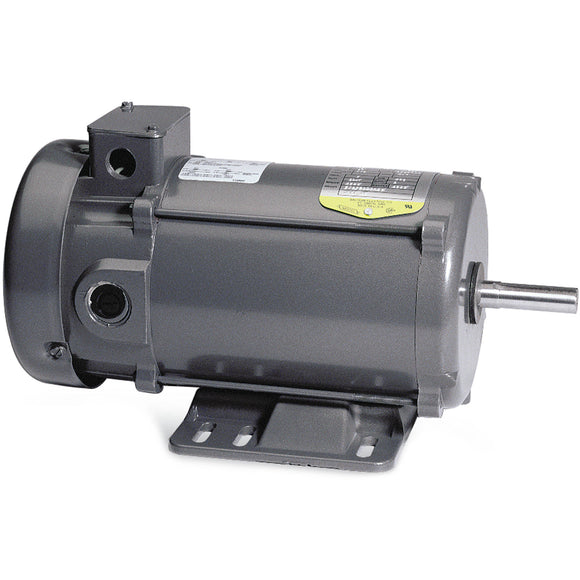

Specifications
Specs
Armature Voltage115 V
Base Speed1,750 rpm
Field Voltage115 V
Frame56
Frame MaterialSteel
Output Power1 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
UR
Ambient Temperature40 °C
Armature Current8.0 A
Armature Inertia13.657lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Field Winding TypeCOMPOUND
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 18 AWG, F
2 @ 14 AWG
2 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length15.44 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable
Applications
- Cranes and Hoists
- Conveyors
- Augers
- Marine Duty Applications
Features
- 20% compound wound
- Weather proof, VPI insulation meets IEEE 45 specifications
- Suitable for mounting in any position
- Continuous duty
- Easy access brushes
- Can be powered from generators or batteries
Nameplate
Nameplate
| CAT.NO. | D1154 | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 35P328Z396 | ||||||||||||||||||||||||||||||
| HP | 1 | ENCL | TEFC | ||||||||||||||||||||||||||||
| RPM | 1750 | ||||||||||||||||||||||||||||||
| FRAME | 56 | TYPE | 3535D | ||||||||||||||||||||||||||||
| ARM V | 115 | ARM A | 8 | ||||||||||||||||||||||||||||
| FLD V | 115 | FLD A | .5 | ||||||||||||||||||||||||||||
| INSUL | F | AMB. | 40 | ||||||||||||||||||||||||||||
| DUTY | CONT | SUPPLY | A | ||||||||||||||||||||||||||||
| BRG/DE | 6205 | BRG/ODE | 6203 | ||||||||||||||||||||||||||||
| BRUSHES | 2/BP5000T07 | ||||||||||||||||||||||||||||||
| -- | BLANK | ||||||||||||||||||||||||||||||
| SER. | |||||||||||||||||||||||||||||||
| BLANK | IEEE 45 | ||||||||||||||||||||||||||||||
| APRV-CSA | APRV-UL | ||||||||||||||||||||||||||||||
| NP0111L | |||||||||||||||||||||||||||||||
Performance
Performance
Performance at 115 Arm V, 1 HP
Typical performance; not guaranteed values.General Characteristics
Armature Resistance0.794 ohms
Series Winding Resistance1.836 ohms
Armature Inductance14.193 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance0.588 ohms
Shunt Winding Resistance217 ohms
Armature Inertia13.68 LI²
Maximum Allowable Inrush Amps
Load Characteristics
| Load Point | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Armature Amps | 1.1 | 2.8 | 4.3 | 6.2 | 7.8 | 9.5 | 11.3 |
| RPM | 1858 | 1797 | 1736 | 1682 | 1644 | 1596 | 1554 |
| Torque | 0 | 0.75 | 1.5 | 2.25 | 3 | 3.75 | 4.5 |
Performance Curves
