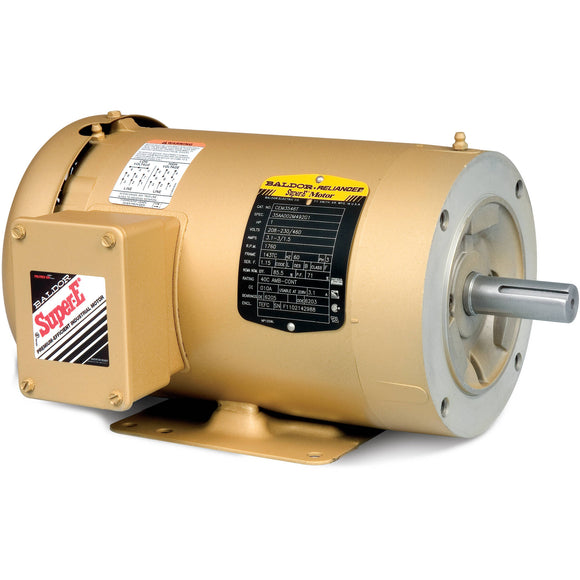

CEM3613T Baldor 5HP Electric Motor, 3600RPM

$1,259.97 USD

Shipping calculated at checkout

Baldor Electric Company SKU: CEM3613T Barcode: 781568422588

30 Day
Return Policy

Ships Fast
in 24 hours

TEFC, 184TC Frame, 230/460V 3-Phase 60Hz, 3630M, C-Face, Foot Mounted

Description Product Specs Manufacturer

Specifications

Specs

Output5.000 hp
Phase3
Synchronous Speed3,600 rpm
Frequency60.00 Hz
Voltage460 V
230 V
Frame MaterialSteel
Frame184TC
XP Class and GroupNONE
XP DivisionNot Applicable
BrandBaldor-Reliance
Agency ApprovalsCSA
CSA EEV
UR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
BlowerNone
Current12.0 A @ 208 V
11.8 A @ 230 V
5.9 A @ 460 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load88.5%
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNo feedback
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo heater
High Voltage Full Load Amps5.9 A
Insulation ClassF
Inverter CodeInverter ready
KVA CodeL
Lifting LugsNo Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size9 @ 16 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3630M
Number of Poles2
Overall Length16.55 in
Power Factor91
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.125 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed3,450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None

Applications

Features

Nameplate

Nameplate

CAT.NO. CEM3613T
SPEC 36A002S042G1
HP 5
VOLTS 230/460
AMPS 11.8/5.9
RPM 3450
FRAME 184TC HZ 60 PH 3
SF 1.15 CODE L DES A CLASS F
NEMA NOM. EFF 88.5 PF 91
RATING 40C AMB-CONT
CC 010A USABLE AT 208V 12
ENCL TEFC SER
DE 6206 ODE 6205
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
50Hz 5HP 190/380V 14.2/7.1A SF1.0
NP3441LUA

Performance

Performance

Performance at 460 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2.27 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load72° C
Temp. Rise @ S.F. Load88° C
Start ConfigurationDOL
Break-Down Torque33.7 LB-FT
Pull-Up Torque23.5 LB-FT
Locked-Rotor Torque27.5 LB-FT
Starting Current57.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 12.0 62.0 81.0 88.0 91.0 93.0 94.0 92.0
Efficiency 0.0 83.2 88.4 89.1 88.3 87.0 85.8 87.5
Speed (RPM) 3,599 3,569 3,537 3,504 3,466 3,428 3,385 3,443
Line Amps 1.68 2.24 3.26 4.47 5.85 7.26 8.80 6.70

Performance Curves

Performance at 460 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C2.27 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load72° C
Temp. Rise @ S.F. Load88° C
Start ConfigurationDOL
Break-Down Torque33.7 LB-FT
Pull-Up Torque23.5 LB-FT
Locked-Rotor Torque27.5 LB-FT
Starting Current57.2 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 12.0 62.0 81.0 88.0 91.0 93.0 94.0 92.0
Efficiency 0.0 83.2 88.4 89.1 88.3 87.0 85.8 87.5
Speed (RPM) 3,599 3,569 3,537 3,504 3,466 3,428 3,385 3,443
Line Amps 1.68 2.24 3.26 4.47 5.85 7.26 8.80 6.70

Performance Curves

Performance at 230 V, 60 Hz, 5 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque0 LB-FT
No-Load Current0 A
Line-Line Res. @ 25° C0.576 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load72° C
Temp. Rise @ S.F. Load88° C
Start ConfigurationDOL
Break-Down Torque33.7 LB-FT
Pull-Up Torque23.5 LB-FT
Locked-Rotor Torque27.5 LB-FT
Starting Current114 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 12.0 62.0 81.0 88.0 91.0 93.0 94.0 92.0
Efficiency 0.0 83.2 88.4 89.1 88.3 87.0 85.8 87.5
Speed (RPM) 3,599 3,569 3,537 3,504 3,466 3,428 3,385 3,443
Line Amps 3.36 4.48 6.52 8.94 11.70 14.50 17.60 13.40

Performance Curves

  • 230VAC
  • 460VAC
