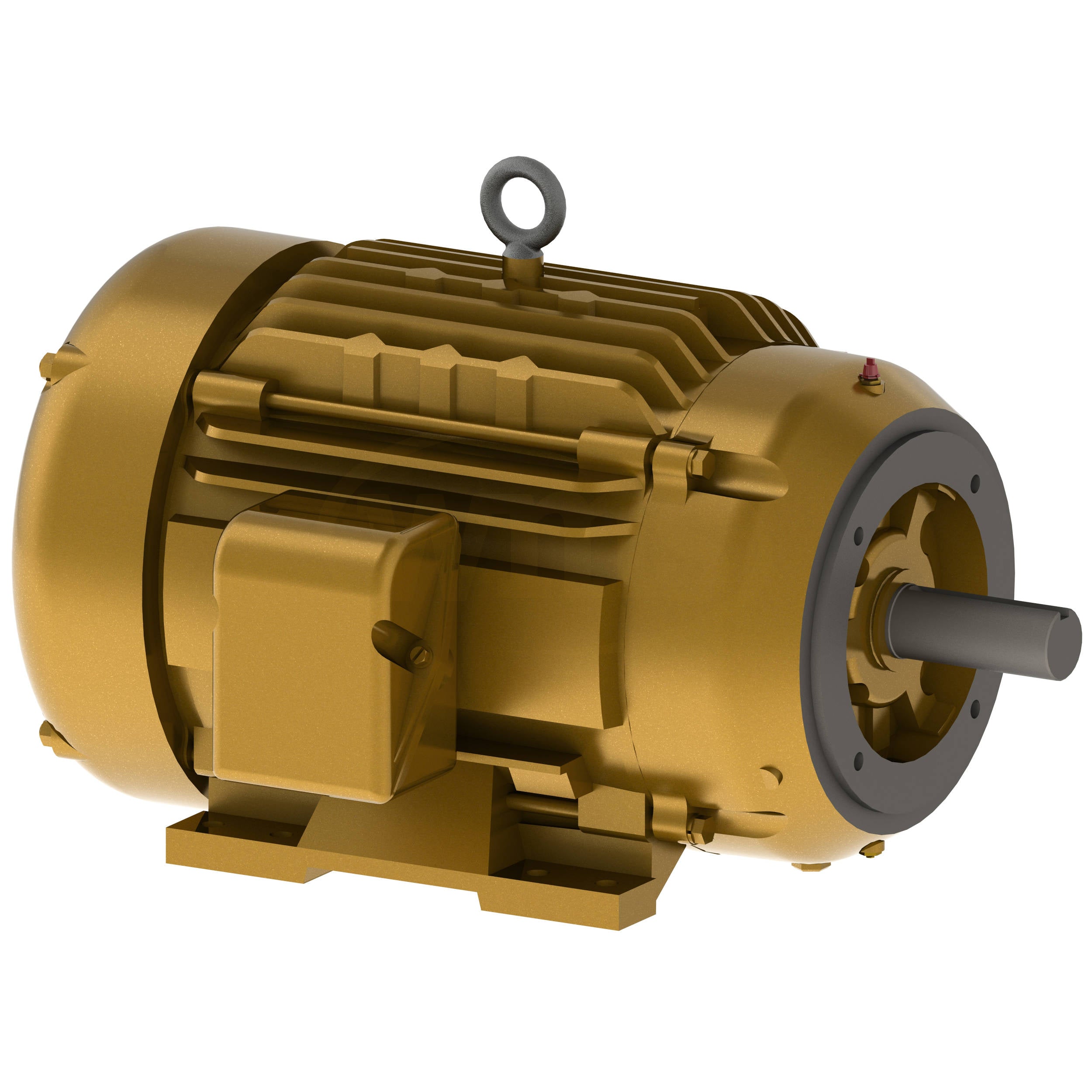

CEM2333T-5 Baldor 15HP Electric Motor, 1800RPM-1

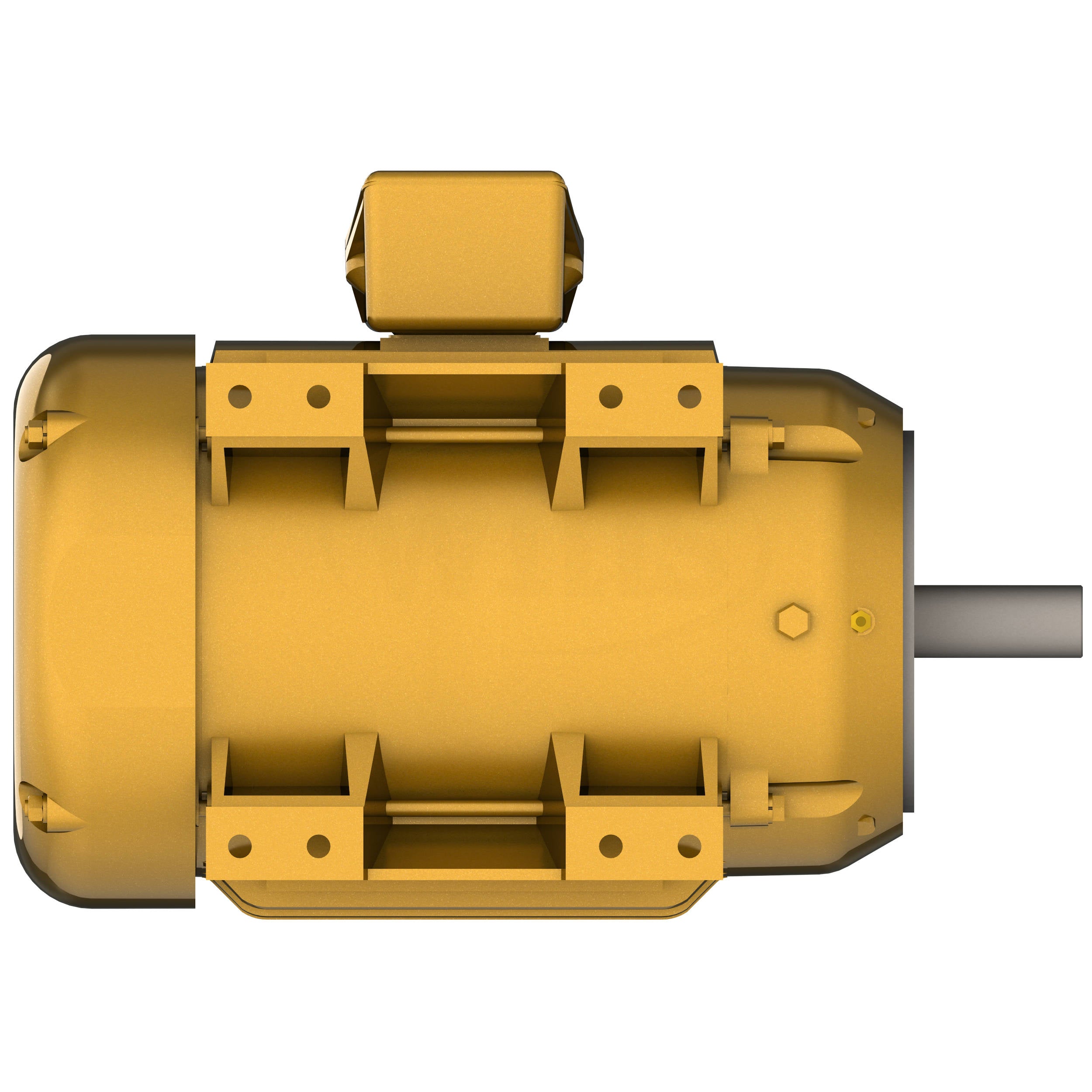

CEM2333T-5 Baldor 15HP Electric Motor, 1800RPM-2

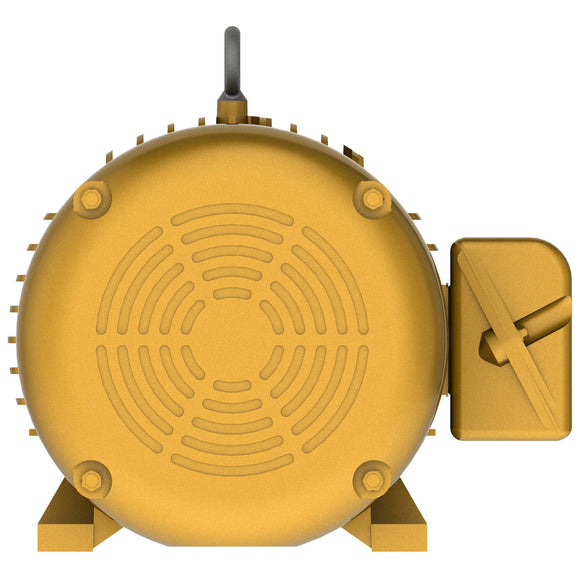

CEM2333T-5 Baldor 15HP Electric Motor, 1800RPM-3

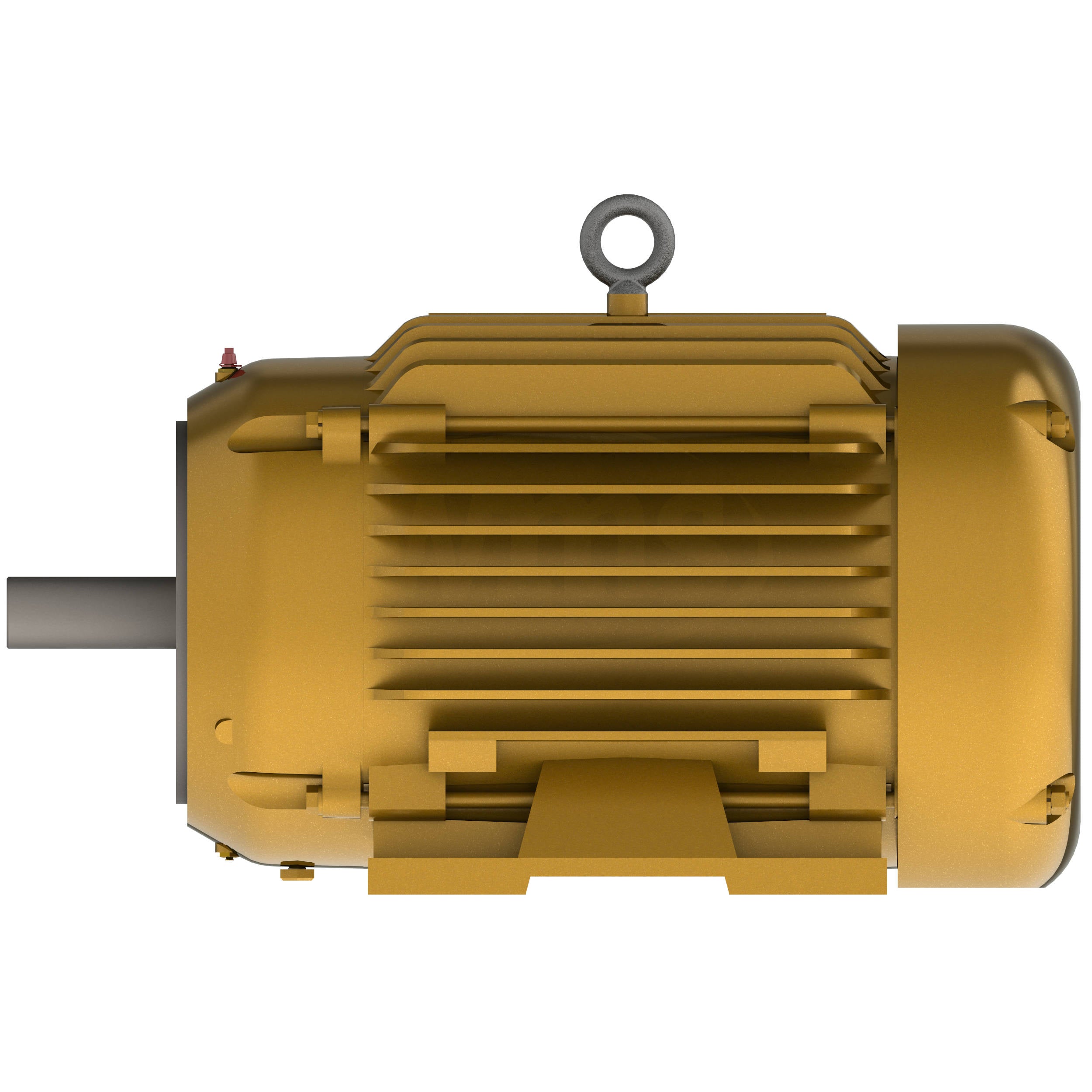

CEM2333T-5 Baldor 15HP Electric Motor, 1800RPM-4

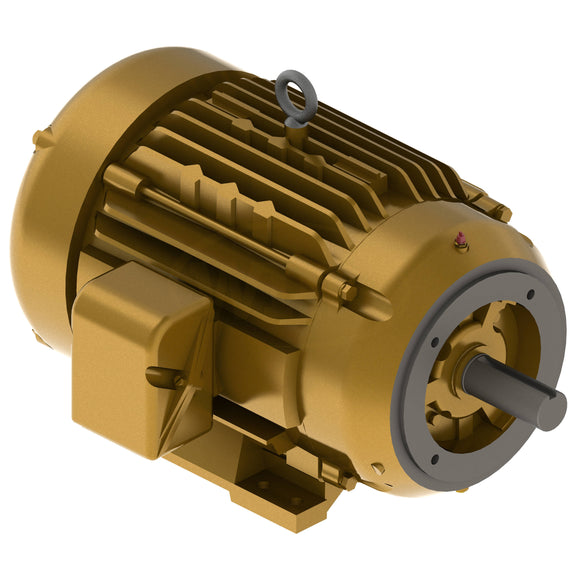

CEM2333T-5 Baldor 15HP Electric Motor, 1800RPM-5

CEM2333T-5 Baldor 15HP Electric Motor, 1800RPM

$2,893.97

Shipping calculated at checkout

Baldor Electric Company SKU: CEM2333T-5 Barcode: 781568134139

30 Day
Return Policy

Ships Fast
in 24 hours

In stock!

Specifications

Specs

Output 15.000 hp
Phase 3
Synchronous Speed 1,800 rpm
Frequency 60.00 Hz
Voltage 575 V
Frame Material Iron
Frame 254TC
XP Class and Group NONE
XP Division Not Applicable
Brand Baldor-Reliance
Agency Approvals CSA
CSA EEV
UR
Ambient Temperature 40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type POLYREX EM (-20F +300F)
Blower None
Current 14.6 A
Design Code A
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 92.4%
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device No feedback
Front Face Code Standard
Front Shaft Indicator None
Heater Indicator No heater
High Voltage Full Load Amps 14.6 A
Insulation Class F
Inverter Code Inverter ready
KVA Code H
Lifting Lugs Standard Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Exit KO Box
Motor Lead Quantity/Wire Size 3 @ 12 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 0944M
Number of Poles 4
Overall Length 23.80 in
Power Factor 83
Product Family General Purpose
Pulley End Bearing Type Ball
Pulley Face Code C-Face
Pulley Shaft Indicator Standard
Rodent Screen None
Service Factor 1.15
Shaft Diameter 1.625 in
Shaft Extension Location Pulley End
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Shaft Slinger Indicator Shaft Slinger
Speed 1,765 rpm
Speed Code Single Speed
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None

Applications

  • Fans
  • Pumps
  • Blowers
  • Conveyors
  • Compressors
  • Industrial machines
  • Other general purpose applications

Features

  • Locked DE bearing to allow mounting in any configuration
  • 60 Hz designs with 50 Hz information on 2,4,6 pole 1-125 Hp ratings
  • Suitable for inverter use per NEMA MG1 Part 31.4.4.2
  • Simple F1 to F2 conversion on cast iron frames
  • Designed for longevity with a 3 year warranty on premium efficient Super-E® motors

Nameplate

Nameplate

CAT.NO. CEM2333T-5
SPEC. 09C102T124G1
HP 15
VOLTS 575
AMP 14.6
RPM 1765
FRAME 254TC HZ 60 PH 3
SER.F. 1.15 CODE H DES A CL F
NEMA-NOM-EFF 92.4 PF 83
RATING 40C AMB-CONT
CC 010A USABLE AT 208V
DE 6309 ODE 6208
ENCL TEFC SN
VPWM INVERTER READY
CT6-60H(10:1)VT3-60H(20:1
NP3441L

Performance

Performance

Performance at 575 V, 60 Hz, 15 hp

Typical performance; not guaranteed values.

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C 0.874 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 54° C
Temp. Rise @ S.F. Load 66° C
Start Configuration DOL
Break-Down Torque 153 LB-FT
Pull-Up Torque 69.5 LB-FT
Locked-Rotor Torque 86.5 LB-FT
Starting Current 102 A

Load Characteristics

Rated Load 0% 25% 50% 75% 100% 125% 150% S.F.
Power Factor 6.0 45.0 69.0 78.0 83.0 85.0 87.0 86.0
Efficiency 0.0 88.1 92.3 92.6 92.4 91.5 90.5 92.2
Speed (RPM) 1,799 1,791 1,783 1,774 1,765 1,755 1,743 1,769
Line Amps 6.05 6.90 8.80 11.60 14.60 18.10 21.50 16.30

Performance Curves
